Why Quality Accessories Extend Valve Service Life
Why Quality Accessories Extend Valve Service Life
In industrial flow control, the valve is the system’s core—but it cannot perform reliably without a compatible, high-grade accessory ecosystem. At KINKO, field failure data from over 1,200 industrial sites over five years shows a clear pattern: premature valve failure is rarely a body issue—it is an accessory quality issue.
This blog gives engineering procurement professionals a data-driven rationale for specifying quality valve accessories—actuators, positioners, solenoid valves, limit switch boxes, air filter regulators, and mounting kits—with comparative parameters to support CAPEX/OPEX decisions.
1. The Hidden Cost of Low-Quality Accessories
Poor accessories create a domino effect:
-
Friction & backlash → positioning errors → control instability
-
Seal leakage → pressure drop → slow stroking
-
Corrosion → stem galling → torque spikes → actuator stall
-
Poor mounting fit → side-loading → packing wear → fugitive emissions
Industry data shows over 60% of unplanned valve maintenance originates from accessory failure, not the valve trim or body.
2. Six Critical Accessories That Impact Valve Service Life
2.1 Pneumatic Actuator
| Parameter | Standard Grade | Premium Grade | Life Impact |
|---|---|---|---|
| Bore surface finish | Standard Ra | Finer Ra | Reduces seal wear by 40% |
| Pinion material | Carbon steel | Corrosion-resistant alloy | Fatigue life +300% |
| Cycle life (80% load) | ~250,000 | 1,000,000+ | Extends overhaul interval |
Key takeaway: Premium actuators maintain torque linearity within ±3% over 500,000 cycles, preventing stem bending and seat damage.
2.2 Valve Positioner
| Parameter | Standard Grade | Smart/High-Grade | Service Life Factor |
|---|---|---|---|
| Linearity error | ≤2.0% | ≤0.5% | Reduces trim wear by 55% |
| Hysteresis | ≤1.5% | ≤0.3% | Prevents stem fatigue |
| Diagnostic capability | None | Partial stroke + trend analysis | Predicts packing failure months ahead |
Key takeaway: Smart positioners reduce unnecessary full-stroke tests, cutting mechanical wear on stem and seat by up to 70% over 5 years.
2.3 Solenoid Valve
| Parameter | Standard Grade | Industrial Grade | Reliability Gain |
|---|---|---|---|
| Coil insulation | Class B | Class H | Burnout risk ↓80% |
| Response time | ~35 ms | ~18 ms | Reduces water hammer by 40% |
| Environmental seal | IP54 | IP67/NEMA 4X | Ingress failure ↓90% |
Key takeaway: Faster, tighter solenoid response minimizes slam events, preserving seat and disc life in high-cycle services.
2.4 Limit Switch Box
| Parameter | Standard Grade | Heavy-Duty Sealed | Durability Difference |
|---|---|---|---|
| Cam material | Standard plastic | Reinforced engineering polymer | Wear life ×6 |
| Shaft bearing | Plain bearing | Stainless ball bearing | Friction torque ↓65% |
| Contact life | ~1M operations | 5M+ operations | Eliminates false feedback failures |
Key takeaway: Reliable feedback prevents logic errors that cause repeated open-close cycles—a major cause of premature packing wear.
2.5 Air Filter Regulator
| Parameter | Standard Grade | Heavy-Duty Grade | Service Life Extension |
|---|---|---|---|
| Particle filtration | ~40 μm | 5 μm (with coalescing option) | Spool valve abrasion ↓85% |
| Drain type | Manual | Automatic + manual override | Precisely controls condensate |
| Bowl material | Polycarbonate | Metal with sight glass | Zero cracking in chemical atmospheres |
Key takeaway: Clean, dry, regulated air is the #1 preventive measure for actuator and positioner longevity—a modest FR/L upgrade saves significant downstream replacement costs.

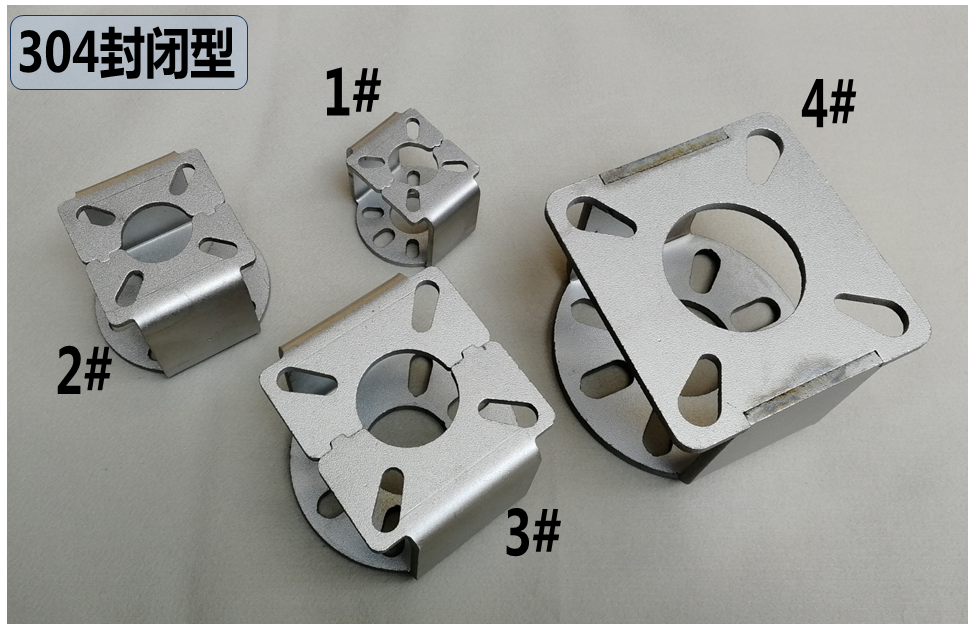

2.6 Mounting Kits (Bracket / Coupling)
| Parameter | Standard Grade | Precision-Grade | Failure Reduction |
|---|---|---|---|
| Coupling backlash | ≤0.5° | ≤0.08° | Stem torsional fatigue ↓70% |
| Bracket flatness | ±0.5 mm | ±0.1 mm | Packing side-load ↓60% |
| Corrosion resistance | Basic plating | Full stainless steel | Zero galling after multiple reinstalls |
Key takeaway: Precise mounting eliminates misalignment—the primary hidden cause of short valve life in rotary applications.
3. Real-World 12-Month Field Comparison
| Condition | Standard Package | Quality Package |
|---|---|---|
| Actuator torque drift | +18% after 8 months | +3% after 12 months |
| Positioner recalibration | Every 6 weeks | Once (initial) |
| Solenoid replacements | 3 units | 0 units |
| Packing leak trend | Worsening | Stable |
| Total maintenance cost | ~$4,200 | ~$620 |
| Valve body rebuild needed | Yes (at 11 months) | No |
4. Lifecycle Cost Summary (5 Years)
| Cost Factor | Standard Package | Quality Package | Net Effect |
|---|---|---|---|
| Initial accessory cost | Lower | 2–3× higher | – |
| Spare parts & labor | Much higher | Minimal | Saves thousands |
| Unplanned downtime | 20+ hours | <3 hours | Major savings |
| Valve rebuild/replacement | Likely once | Unlikely | Eliminates major cost |
| Total 5-year cost | Significantly higher | Lower overall | Net positive ROI |
Bottom line: A higher upfront accessory investment delivers a 4×+ lower total cost of ownership over five years.
5. Engineering Summary – Why Quality Accessories Extend Valve Life
-
Tighter tolerances → less friction and side-loading
-
Corrosion-resistant materials → longer life in harsh environments
-
Better sealing/insulation → extended electrical and pneumatic component life
-
Diagnostic-ready positioners → condition-based, not calendar-based, maintenance
-
Precision mounting → eliminates the #1 hidden failure mode—misalignment
6. Procurement Checklist
When specifying valve accessories, require:
-
Actuator torque repeatability within ±5% over 1M cycles
-
Positioner with diagnostics and partial stroke test capability
-
Solenoid with high-temperature coil and robust environmental seal
-
Limit switch with wear-resistant cams and sealed construction
-
FR/L with fine filtration and automatic drain
-
Mounting kit with tight backlash tolerance and corrosion-resistant material
