Why Choose a Limit Switch Box with Visual Indication for Valve Feedback?
1. Zero-Delay On-Site Status Check

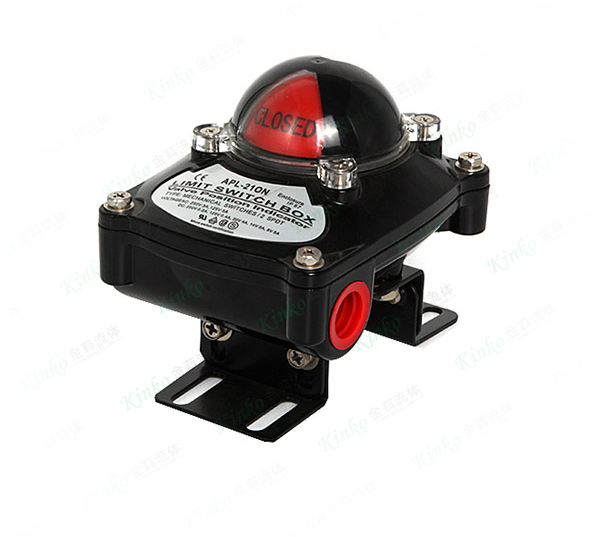

Visual indication (typically a bright dome that rotates 90°/180°) gives operators instant confirmation of valve position without needing a handheld calibrator or HART communicator.
-
Without visual dome: Check stem position or rely on PLC screen.
-
With visual dome: 10~15 meter visibility from any angle.
Result: Less walking, faster diagnostics, fewer misoperations.
2. Redundant Feedback for Safety & SIL Compliance
Electronic sensors can fail—wiring breaks, power loss, or proximity switch drift. The mechanical visual indicator is independent of electrical circuitry, offering a true physical backup.
-
Supports SIL 2/SIL 3 installations as an additional diagnostic layer.
-
Critical for ESD (Emergency Shutdown) and fire-safe applications.
3. Lower Maintenance Costs & Faster Troubleshooting
When alarms trigger, maintenance teams waste 30%~50% of their time just identifying which valve is the culprit. A color-coded visual dome (e.g., Red = Closed, Yellow = Open) reduces troubleshooting time from minutes to seconds.
| Scenario | Without Visual Indication | With Visual Indication |
|---|---|---|
| Alarm investigation | Check wiring + PLC logs + go on-site to verify stem | Walk to valve, read dome position immediately |
| Average fault-finding time | ~5~8 minutes | ~1~2 minutes |
| Risk of incorrect diagnosis | Moderate to High | Very Low |
4. Suitable for Harsh Environments (IP66/IP67 & Ex-rated)
Quality visual indicator boxes are built to withstand rain, dust, chemical splashes, and explosive atmospheres.
-
Ingress protection: IP66/IP67 (dust-tight, water-jet/hose-down proof).
-
Explosion-proof options: ATEX / IECEx certified for Zone 1, Zone 2, or Class I Div 1.
-
Visual dome remains clear under UV exposure and extreme temperatures (-40°C ~ +120°C).
5. Quick Technical Comparison Table (Standard vs. Visual Type)
| Feature | Standard Limit Switch Box | Limit Switch Box with Visual Indication |
|---|---|---|
| Electrical feedback | Yes (Mechanical/Proximity/PNP/NPN) | Yes (Same options) |
| Mechanical visual dome | No | Yes (Rotating cam indicator) |
| Visibility range | Stem position only (close range) | Up to 15 meters, 180° visibility |
| Backup indication in power loss | No | Yes (Mechanical, no power needed) |
| Common applications | Indoor, PLC-controlled loops | Outdoor, ESD, emergency valves, firewater systems |
| Typical IP rating | IP65 | IP66/IP67 (optional Ex-proof) |
| Recommended spare parts | Switches, terminal blocks | Switches + indicator dome assembly |
