Reliable Angle Seat Valve Solutions from KINKO
1. Who Is Kinko？
Kinko is a manufacturer of pneumatic angle seat valves for industrial automation, packaging machines, filling lines, steam systems, and fluid control applications.
| Company Fact | Detail |
|---|---|
| Founded | 2008 |
| Headquarters | China |
| Specialization | Angle seat valves (DN10 – DN65) |
| Materials | SS304, SS316L |
| Seals | PTFE, PPL, reinforced PTFE |
| Certifications | CE, ISO 9001 |
| Annual production | 200,000+ valves |
| Export markets | Europe, North America, Middle East, Southeast Asia, South America |
Kinko's mission: Provide industrial-grade angle seat valves at fair prices with fast delivery.
2. What Kinko Offers – Complete Product Range
| Size Range | Features |
|---|---|
| DN10 – DN65 | Spring return closed, most common type |
| DN10 – DN65 | Spring return open, for drains and vents |
| DN15 – DN50 | Reinforced PTFE, heat shield, for steam |
| DN15 – DN50 | SS316L, sanitary polish, EPDM/PTFE |
| DN10 – DN65 | Private label, custom marking, special threads |
All Kinko valves feature:
-
Y‑pattern body for low pressure drop
-
PTFE seat seal standard
-
Single acting pneumatic actuator
-
Thread options: BSPP, BSPT, NPT
-
24V DC, 110V AC, 220V AC solenoid options
-

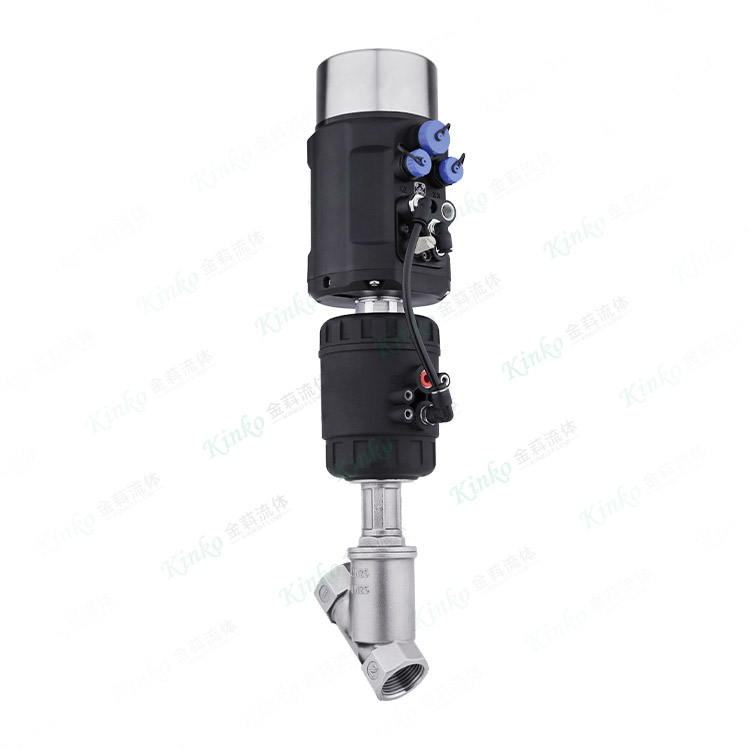

Position feedback available (mechanical or proximity)
3. Quality You Can Trust
Kinko valves are built to industrial standards, not budget shortcuts.
| Quality Feature | Kinko Standard | Typical Low‑Cost Alternative |
|---|---|---|
| Body material | SS304 or SS316L | Brass or cast iron |
| Seal material | PTFE (virgin grade) | Recycled PTFE or unknown |
| Actuator | Anodized aluminum, stainless spring | Painted aluminum, weak spring |
| Cycle life (tested) | ≥2 million cycles | Unknown (often <500,000) |
| Leakage test | 100% tested before shipping | Spot test or none |
| Traceability | Material certificates available | None |
Every Kinko valve is pressure tested and cycle tested before leaving our factory.
4. Performance Specifications
| Parameter | Kinko Value |
|---|---|
| Valve sizes | DN10 – DN65 (3/8″ to 2‑1/2″) |
| Body material | SS304 (standard), SS316L (optional) |
| Seal material | PTFE (standard), FKM, EPDM, NBR, reinforced PTFE |
| Operating pressure (media) | 0 – 16 bar (0 – 232 psi) |
| Control air pressure | 4 – 8 bar (60 – 120 psi) |
| Max medium temperature | -10°C to +180°C (PTFE) |
| Response time | 30 – 80 ms (depending on size) |
| Cycle life | 2 – 3 million cycles (typical) |
| Pilot port | G1/8″ (DN10–DN25), G1/4″ (DN32–DN65) |
| Flow direction | Above seat (standard), configurable |
5. Key Applications – Where Kinko Valves Excel
| Industry | Application | Why Kinko |
|---|---|---|
| Packaging machinery | Liquid filling, dosing | Fast cycle, tight shut‑off |
| Food and beverage | Juice, sauce, dairy filling | SS316L, sanitary options |
| Steam systems | Boiler control, sterilization | PTFE seal, high temp rating |
| Industrial washing | Parts washers, CIP systems | Chemical resistant seals |
| Chemical dosing | Acid, alkali, solvent injection | SS316L body, PTFE seal |
| Pneumatic conveying | Powder and pellet diverting | High Cv, low pressure drop |
| Pharmaceutical | Vial filling, clean steam | SS316L, traceability |
6. Why Customers Choose Kinko
Reason 1: Direct Factory Pricing
No distributor markups. No middlemen.
| Brand | Typical Price (DN25, NC, SS304) |
|---|---|
| European premium brand | $150 – $250 |
| Kinko | $50 – $80 |
| Generic low‑cost | $20 – $40 |
Kinko delivers European‑comparable quality at 30–50% of the price.
Reason 2: Fast Lead Time
| Supplier | Typical Lead Time (Standard Size) |
|---|---|
| European brands | 4 – 8 weeks |
| Kinko | 7 – 15 days |
| Local distributor (if in stock) | 1 – 3 days (but limited stock) |
Kinko keeps common sizes in stock for immediate shipment.
Reason 3: Customization
Unlike large brands that resist custom orders, Kinko welcomes them.
| Customization Option | Kinko Capability |
|---|---|
| Private label (your brand on valve) | Yes |
| Custom packaging | Yes |
| Special thread (BSPP, BSPT, NPT) | Yes |
| Non‑standard seal material | Yes |
| Actuator color | Yes |
| Special marking or serial numbers | Yes |
Reason 4: Technical Support
Kinko provides:
-
Pre‑sale sizing assistance
-
Material selection guidance
-
Installation troubleshooting
-
Seal replacement kits and instructions
-
Application engineering support
You are not just buying a valve — you are getting a partner.
Reason 5: Proven Track Record
| Metric | Kinko Performance |
|---|---|
| Valves in service (globally) | 500,000+ |
| Customer retention rate | 92% |
| On‑time delivery rate | 98% |
| Warranty return rate | <1.5% |
7. Customer Testimonials (Summarized)
"We replaced Bürkert valves with Kinko on our filling machines. Same performance, half the price. Delivery in 10 days instead of 6 weeks."
— Packaging OEM, Germany
"Kinko's SS316L angle seat valves handle our caustic CIP solution perfectly. Two years, no failures."
— Food plant engineer, USA
"The customization was easy — Kinko put our logo on the valve and used our packaging. The large European brand wouldn't even discuss it."
— Distributor, Turkey
"We needed steam valves fast. Kinko shipped in 8 days. The PTFE seals hold up to 180°C with no issues."
— Boiler skid builder, Italy
8. Kinko vs Other Suppliers – Quick Comparison
| Factor | Kinko | European Premium | Japanese Premium | Generic Low‑Cost |
|---|---|---|---|---|
| Body material | SS304/316L ✅ | SS304/316L ✅ | SS304/316L ✅ | Brass/cast iron ❌ |
| PTFE seal | ✅ | ✅ | ✅ | ⚠️ (often poor quality) |
| Cycle life (million) | 2–3 | 3–5 | 2–4 | <0.5 |
| Price | $$ | $$$$ | $$$ | $ |
| Lead time (weeks) | 1–2 | 4–8 | 2–6 | 1–2 |
| Customization | ✅ High | ⚠️ Low | ❌ Very low | ⚠️ Variable |
| Technical support | ✅ Direct | ✅ Good | ✅ Good | ❌ Minimal |
| Best for | Value + quality | Premium brand | Global availability | Non‑critical use |
9. Kinko's Commitment
When you choose Kinko, you get:
✅ Quality — 100% tested, full material traceability
✅ Value — fair pricing without compromising materials
✅ Speed — 7–15 day lead time on standard sizes
✅ Flexibility — custom options welcome
✅ Support — technical help before and after sale
We do not sell the cheapest valve. We sell the best valve for your money.
10. How to Order from Kinko
| Step | Action |
|---|---|
| 1 | Contact Kinko with your requirements (size, media, pressure, temperature) |
| 2 | Receive quotation and specification confirmation |
| 3 | Approve drawing (for custom orders) |
| 4 | Place order |
| 5 | Production (7–20 days depending on quantity and customization) |
| 6 | Quality inspection and shipment |
| 7 | Delivery with tracking |
| 8 | Post‑sales support |
Sample orders available. Test Kinko quality before committing to volume.
11. Summary – Why Kinko？
| If you need... | Choose Kinko because... |
|---|---|
| Reliable performance | 2–3 million cycle life, 100% tested |
| Fair price | Direct factory, no middleman |
| Fast delivery | 7–15 days on standard sizes |
| SS304/SS316L quality | No cast iron, no brass |
| Customization | Private label, special threads, custom marking |
| Technical support | Free sizing and material selection help |
Kinko is not the biggest angle seat valve manufacturer — but we are one of the most customer‑focused.
12. Ready to Try Kinko Angle Seat Valves？
Contact Kinko today for:
-
product catalog and Cv tables
-
sample valve (test before you commit)
-
quotation for standard or custom valves
-
distributor inquiry (we welcome partners worldwide)
