How to Select Actuators for Food & Sanitary Applications
What Makes Sanitary Actuators Different?
| Feature | Standard Actuator | Sanitary Actuator |
|---|---|---|
| Surface finish | Rough or painted | Smooth, polished (Ra ≤ 0.8 μm) |
| Housing material | Aluminum (coated) | Stainless steel (304/316L) |
| Crevices | External bolts, gaps | Seamless, crevice-free |
| Drainability | Flat surfaces trap moisture | Self-draining |
Key Standards
| Standard | Requirement |
|---|---|
| 3-A Sanitary | Smooth surfaces, crevice-free, self-draining |
Actuator Types for Sanitary Applications

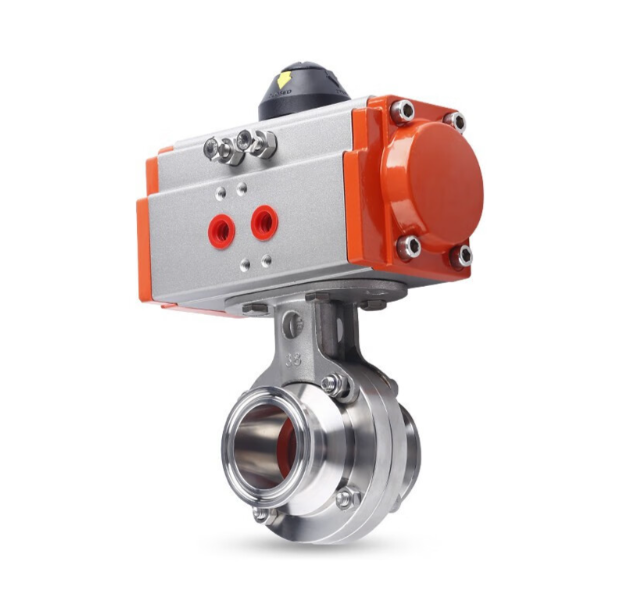

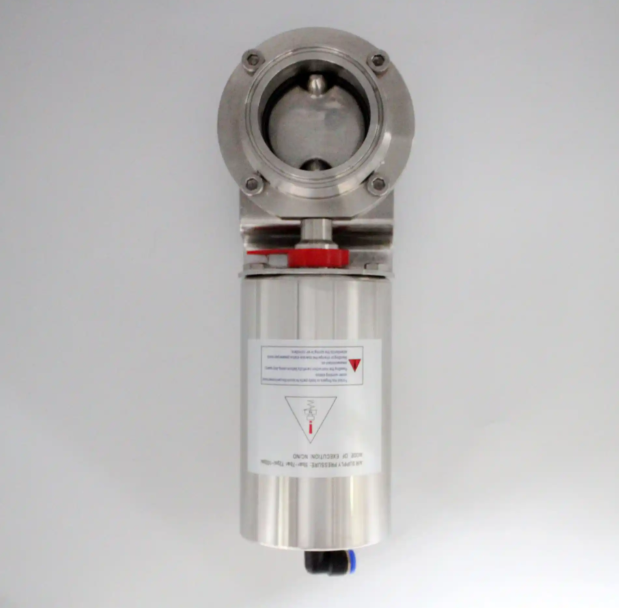

Stainless Steel Pneumatic Actuators
-
Best for: Quarter-turn sanitary ball and butterfly valves
-
Features: 316L stainless steel, polished finish, FDA-compliant seals, IP67/IP68
Sanitary Electric Actuators
-
Best for: Precise positioning, cleanroom environments
-
Features: Stainless steel housing, no exhaust air, integrated electronics
Angle Seat Valves with Integrated Actuators
-
Best for: Steam, water, product flow
-
Features: Integrated design, self-draining, high-temperature capable
Sanitary Diaphragm Valves
-
Best for: Sterile applications, WFI systems
-
Features: FDA-compliant diaphragm, no dead legs, fully drainable
Critical Selection Criteria
1. Material
| Component | Sanitary Requirement |
|---|---|
| Housing | 316L stainless steel |
| Seals | FDA-compliant (EPDM, FKM, PTFE, silicone) |
| Lubricants | NSF H1 food-grade |
2. Surface Finish & Design
-
Surface roughness: Ra ≤ 0.8–1.6 μm
-
Crevice-free: No gaps, threads, or dead spaces
-
Self-draining: Prevents product pooling
3. Cleaning Compatibility
| Cleaning Method | Actuator Requirement |
|---|---|
| CIP (60–85°C) | High-temp seals, corrosion resistance |
| SIP (121–140°C) | High-temperature rating, thermal isolation |
| Washdown | IP67/IP69K, smooth surfaces |
4. Environmental Protection
| IP Rating | Application |
|---|---|
| IP67 | Hose-down, high-pressure cleaning |
| IP69K | High-pressure, high-temperature washdown |
Application Examples
| Industry | Application | Recommended Actuator |
|---|---|---|
| Dairy | Milk receiving, pasteurization | Stainless steel pneumatic, angle seat |
| Beverage | Fermentation, filling | Stainless steel pneumatic, sanitary electric |
| Pharmaceutical | Bioreactors, WFI | Diaphragm valves, stainless steel actuators |
| Food processing | Washdown areas | IP69K-rated stainless steel |
Sanitary Actuator Selection Checklist
| Factor | Requirement | ✓ |
|---|---|---|
| Material | 316L stainless steel | ☐ |
| Surface finish | Polished, Ra ≤ 0.8–1.6 μm | ☐ |
| Design | Crevice-free, self-draining | ☐ |
| Seals | FDA-compliant, food-grade | ☐ |
| IP rating | IP67/IP69K for washdown | ☐ |
| Cleaning compatibility | CIP/SIP rated if applicable | ☐ |
| Lubricants | NSF H1 food-grade | ☐ |
| Certification | 3-A, EHEDG as required | ☐ |
Common Mistakes to Avoid
| Mistake | Consequence |
|---|---|
| Coated aluminum in washdown areas | Corrosion, contamination risk |
| Standard seals in high-temperature cleaning | Seal failure, leakage |
| Inadequate IP rating | Moisture ingress, actuator failure |
| Non-self-draining design | Bacterial growth |
Final Thoughts
Selecting the right actuator for sanitary applications requires attention to material, design, cleaning compatibility, and regulatory compliance. Stainless steel construction, FDA-compliant seals, and adequate IP protection are essential for reliable operation in food and pharmaceutical environments.
At Kinko, we offer a range of sanitary actuators — including 316L stainless steel pneumatic actuators, sanitary electric actuators, and integrated angle seat valves — designed for the rigorous demands of hygienic processing.
For assistance with sanitary actuator selection, feel free to reach out.
