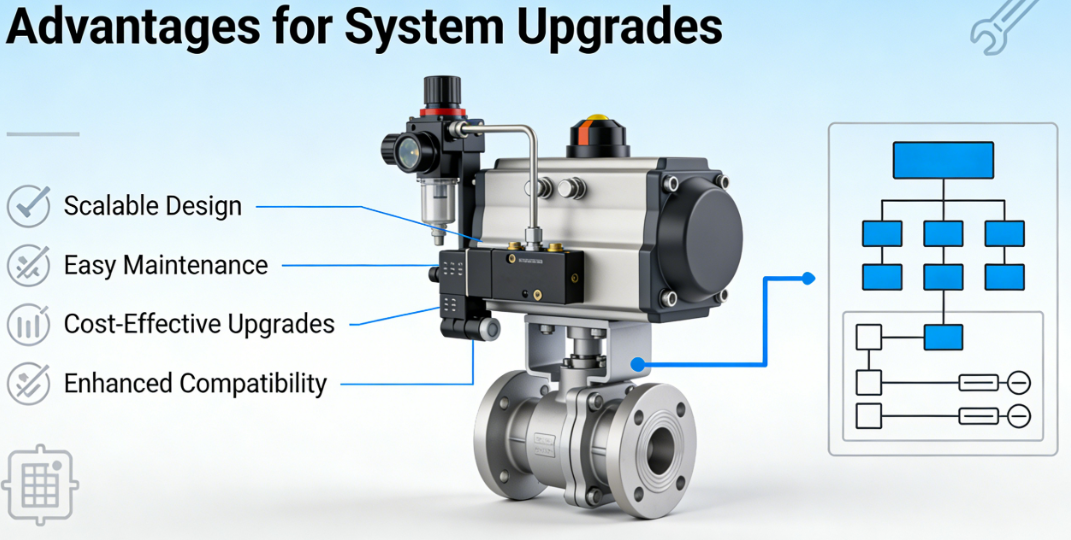

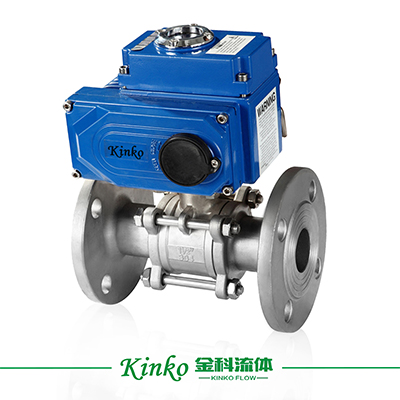

Modular Valve Actuators: Advantages for System Upgrades
What Are Modular Valve Actuators?
Modular actuators are built from standardized, interchangeable components that can be configured to meet specific application requirements. Unlike monolithic designs where all components are integrated into a single housing, modular actuators allow users to select and combine:
-
Actuation modules (pneumatic, electric, hydraulic)
-
Control modules (positioners, solenoid valves, limit switches)
-
Communication modules (Modbus, Profibus, HART)
-
Fail-safe modules (spring-return, battery backup)
-
Manual override modules (handwheel, lever)
This approach enables customization, simplifies inventory, and streamlines upgrades.
Key Advantages for System Upgrades
1. Component-Level Upgrades
| Traditional Actuator | Modular Actuator |
|---|---|
| Entire unit replaced for any upgrade | Individual components upgraded as needed |
| Higher replacement cost | Lower upgrade cost |
| Longer downtime | Faster turnaround |
Example: When upgrading from on/off to modulating control, only the control module needs replacement — not the entire actuator.
2. Simplified Retrofit Installation
Modular actuators are designed with standardized mounting interfaces (ISO 5211), making them ideal for retrofitting existing valves.
| Retrofit Benefit | Description |
|---|---|
| Direct mounting | Fits existing valve mounting patterns |
| Interchangeable adapters | Accommodates various valve stem configurations |
| No piping modifications | Preserves existing installation footprint |
3. Reduced Spare Parts Inventory
| Inventory Impact | Benefit |
|---|---|
| Common components | One actuator base fits multiple applications |
| Interchangeable modules | Fewer unique SKUs to stock |
| Standardized accessories | Positioners, switches shared across actuator sizes |
Instead of stocking multiple complete actuators, facilities can stock a smaller set of modular components.
4. Enhanced Maintenance and Repair
| Maintenance Advantage | Description |
|---|---|
| Field-replaceable modules | Failed components replaced without removing actuator from valve |
| Minimal disassembly | Access to individual modules without full teardown |
| Diagnostic visibility | Modular design simplifies fault isolation |
Result: Mean time to repair (MTTR) is significantly reduced compared to monolithic actuators.
5. Future-Proofing
| Future Requirement | Modular Solution |
|---|---|
| Control system upgrade | Swap communication module to new protocol |
| Increased safety requirements | Add SIL-rated control module |
| Remote monitoring | Add position feedback module |
| Changed process conditions | Upgrade actuation module for higher torque |
Modular actuators adapt to changing requirements without complete replacement.
6. Standardization Across Applications
| Standardization Benefit | Application |
|---|---|
| Common actuator base | Same actuator body across different valve sizes |
| Interchangeable controls | Consistent interface for operators and technicians |
| Reduced training | Single maintenance procedure for multiple installations |
Modular Actuator Components
| Module | Function | Upgrade Options |
|---|---|---|
| Actuation base | Core torque/thrust generation | Pneumatic, electric, hydraulic; various torque ranges |
| Control module | Position control and feedback | On/off, modulating (4–20 mA), digital communication |
| Limit switch module | Position indication | Mechanical, proximity, inductive |
| Positioner module | Precise positioning | Analog, digital, HART, Profibus |
| Solenoid module | Pilot control | 24V DC, 110V AC, 220V AC; NAMUR mounting |
| Fail-safe module | Emergency positioning | Spring-return, battery backup, accumulator |
| Manual override | Manual operation | Handwheel, lever, declutch mechanism |
| Communication module | Network integration | Modbus RTU, Profibus DP, Foundation Fieldbus |
Comparison: Modular vs. Monolithic Actuators
| Parameter | Modular Actuator | Monolithic Actuator |
|---|---|---|
| Upgrade flexibility | High — component-level | Low — entire unit replacement |
| Spare parts inventory | Low — common modules | High — model-specific parts |
| MTTR | Short — module swap | Long — full disassembly |
| Initial cost | Moderate | Lower |
| Lifecycle cost | Lower | Higher due to replacements |
| Customization | Extensive | Limited |
| Future-proofing | Excellent | Poor |
Application Scenarios for Modular Upgrades
Scenario 1: Control System Migration
Situation: Facility migrating from discrete I/O to Profibus network.
Modular Solution: Replace existing control module with Profibus DP module. Actuation base and mechanical installation remain unchanged.
Savings: 70–80% lower cost vs. replacing entire actuators.
Scenario 2: Adding Position Feedback
Situation: Manual valves being automated; need remote position indication.
Modular Solution: Add limit switch module to existing modular actuator base.
Benefit: No wiring changes to actuation module; simple plug-and-play addition.
Scenario 3: Increasing Safety Requirements
Situation: Process now requires SIL 2 certification for ESD valves.
Modular Solution: Replace control module with SIL-rated version; actuation base remains.
Benefit: Compliance achieved without re-piping or mechanical changes.
Scenario 4: Standardizing Multiple Valve Sizes
Situation: Facility uses various valve sizes with different actuator requirements.
Modular Solution: Select common actuation base across sizes; vary torque modules as needed.
Benefit: Single spare part strategy; reduced training.
Implementation Considerations
| Consideration | Details |
|---|---|
| Mounting compatibility | Verify ISO 5211 interface matches existing valves |
| Torque requirements | Ensure actuation base meets valve torque with margin |
| Module availability | Confirm future upgrade modules are available for same base |
| Documentation | Maintain records of module configurations for each assembly |
Modular Actuator Selection Checklist
| Factor | Consideration | ✓ |
|---|---|---|
| Current torque requirement | Actuation base sized appropriately | ☐ |
| Future torque needs | Ability to upgrade actuation module | ☐ |
| Control type today | On/off or modulating | ☐ |
| Future control needs | Communication protocol upgrades | ☐ |
| Fail-safe required | Spring-return or battery module available | ☐ |
| Spare parts strategy | Common modules across facility | ☐ |
| Mounting interface | ISO 5211 compatibility | ☐ |
Final Thoughts
Modular valve actuators offer significant advantages for system upgrades and retrofits. By enabling component-level upgrades, simplifying maintenance, and reducing spare parts inventory, they deliver lower lifecycle costs and greater flexibility compared to monolithic designs.
