How to Match Actuators with Different Types of Valves
Why Proper Actuator Matching Matters
A mismatched actuator leads to premature valve failure, poor process control, unsafe conditions, and costly downtime. Matching the right actuator to your valve type is one of the most critical decisions in valve automation.
This guide provides a systematic approach to matching actuators with common valve types.
Quick Selection Matrix
| Valve Type | Recommended Actuator | Key Consideration |
|---|---|---|
| Ball valve | Quarter-turn (rack & pinion) | High breakaway torque |
| Butterfly valve | Quarter-turn (rack & pinion) | Seat friction torque |
| Gate valve | Multi-turn (linear) | Rising stem travel |
| Globe valve | Linear (diaphragm or piston) | Thrust requirements |
| Plug valve | Quarter-turn (scotch yoke) | High initial breakaway |
| Diaphragm valve | Linear (compact) | Low force, short stroke |
| Pinch valve | Linear or quarter-turn | Squeezing action |
| Control valve | Modulating with positioner | Precise positioning |

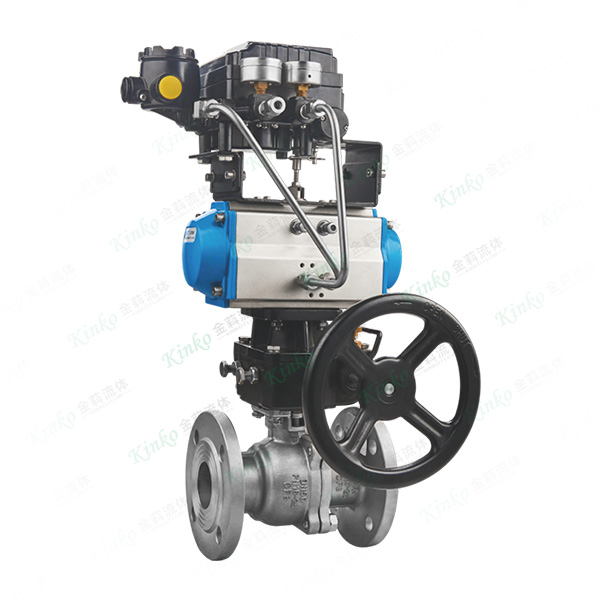

1. Ball Valves
Characteristics
-
Quarter-turn operation (0–90°)
-
High breakaway torque
-
Low running torque
-
Soft or metal seats
Actuator Requirements
| Parameter | Requirement |
|---|---|
| Rotation | 90° ±5° |
| Torque characteristic | High breakaway, low running |
| Typical torque ratio | Breakaway : Running = 3:1 to 5:1 |
| Mounting standard | ISO 5211 (F03, F05, F07, F10) |
Actuator Recommendations
| Ball Valve Size | Recommended Actuator | Torque Range (Nm) |
|---|---|---|
| 1/2" – 1" | AT052 – AT063 | 5–30 |
| 1.5" – 2" | AT075 – AT083 | 30–100 |
| 3" – 4" | AT092 – AT110 | 100–300 |
| 6" – 8" | AT125 – AT140 | 300–800 |
| 10" – 12" | AT160 – AT210 | 800–2000 |
Special Considerations
-
3-way ball valves: Require 20–30% higher torque
-
V-port ball valves: Similar to standard, but smoother operation
-
Trunnion-mounted: Lower torque requirement
-

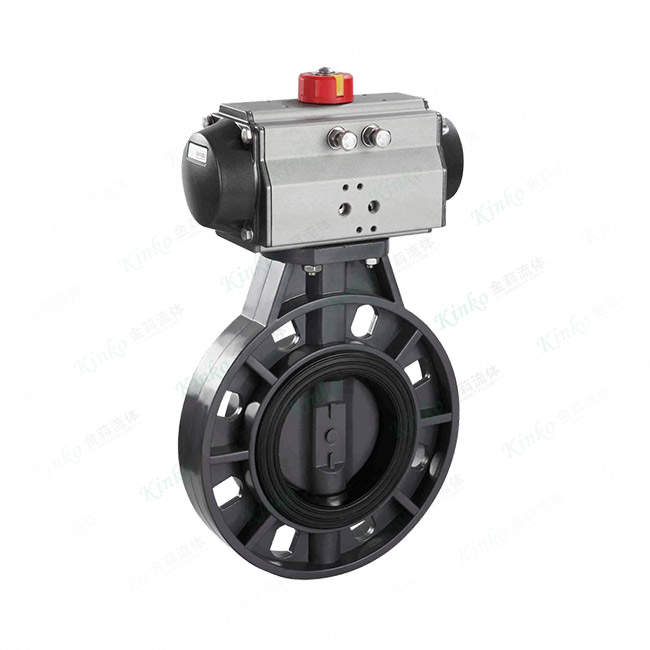

2. Butterfly Valves
Characteristics
-
Quarter-turn operation (0–90°)
-
Torque peaks at 70–85° open
-
Seat interference affects torque significantly
Actuator Requirements
| Parameter | Requirement |
|---|---|
| Rotation | 90° ±3° |
| Torque characteristic | Peak at 70–85° |
| Typical torque ratio | Breakaway : Running = 2:1 to 4:1 |
| Mounting standard | ISO 5211 (top flange) |
Torque Factors by Seat Type
| Seat Material | Torque Factor (relative) |
|---|---|
| EPDM / NBR | 1.0 (baseline) |
| PTFE | 1.3 – 1.5 |
| Metal seated | 2.0 – 3.0 |
| High performance | 1.5 – 2.0 |
Special Considerations
-
Triple offset butterfly valves: Higher torque, use scotch yoke for large sizes
-
Wafer vs lug: Minimal torque difference
-
High temperature: PTFE expands, increasing torque
3. Gate Valves
Characteristics
-
Multi-turn operation (rising stem)
-
Linear motion (stems per inch of travel)
-
High thrust requirement
-
Not suitable for throttling
Actuator Requirements
| Parameter | Requirement |
|---|---|
| Motion | Linear (rising stem) |
| Stem nut | Required (integral or separate) |
| Thrust calculation | Based on pressure and seat area |
| Mounting | ISO 5210 or custom bracket |
Thrust Estimation Formula
Required Thrust (N) = (Pressure x Seat Area) + Packing Friction + Safety Margin (25–50%)
Actuator Recommendations
| Gate Valve Size | Pressure | Required Thrust (kN) | Actuator Type |
|---|---|---|---|
| 2" – 4" | PN16 | 5–15 | Multi-turn electric |
| 6" – 8" | PN16 | 15–40 | Multi-turn electric |
| 10" – 12" | PN16 | 40–80 | Multi-turn electric + gearbox |
| >12" | Any | 80+ | Hydraulic or large electric |
Special Considerations
-
Rising stem (OS&Y): Stem nut on actuator
-
Non-rising stem (NRS): Stem nut on valve, adapter required
-
Knife gate valves: Quarter-turn or linear? Confirm with manufacturer
-

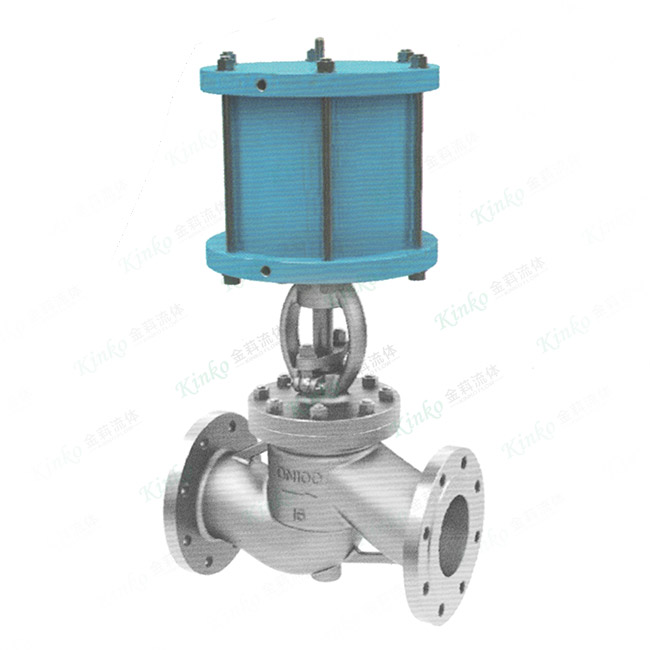

4. Globe Valves
Characteristics
-
Linear motion
-
Moderate thrust requirement
-
Ideal for throttling and control
Actuator Requirements
| Parameter | Requirement |
|---|---|
| Motion | Linear (push-down-to-close typical) |
| Thrust | Lower than gate valves of same size |
| Positioner | Required for modulating duty |
| Mounting | ISO 5210 or diaphragm actuator yoke |
Actuator Recommendations
| Globe Valve Size | Service | Recommended Actuator |
|---|---|---|
| 1/2" – 2" | On-off | Electric linear / small diaphragm |
| 1/2" – 2" | Modulating | Diaphragm with positioner |
| 3" – 6" | On-off | Piston or multi-turn electric |
| 3" – 6" | Modulating | Diaphragm with positioner + booster |
Special Considerations
-
Flow-to-open vs flow-to-close: Affects required thrust direction
-
Double-seated globe valves: Lower thrust (balanced design)
-
Cage-guided: Higher friction, more thrust
-
5. Plug Valves
Characteristics
-
Quarter-turn operation (0–90°)
-
Very high breakaway torque (tapered plug)
-
Low running torque once unseated
Actuator Requirements
| Parameter | Requirement |
|---|---|
| Rotation | 90° |
| Torque characteristic | Very high breakaway, low running |
| Typical torque ratio | Breakaway : Running = 8:1 to 12:1 |
| Mounting standard | ISO 5211 |
Actuator Recommendations
| Plug Valve Size | Lubricated | Recommended Actuator |
|---|---|---|
| 1" – 2" | Yes | AT063 – AT075 |
| 1" – 2" | No | AT083 – AT092 |
| 3" – 4" | Yes | AT092 – AT110 |
| 3" – 4" | No | AT125 – AT140 |
| 6" – 8" | Yes | AT140 – AT160 |
Special Considerations
-
Eccentric plug valves: Lower torque than tapered plug
-
Sleeved plug valves: Consistent torque, easier to automate
6. Diaphragm Valves
Characteristics
-
Linear motion
-
Low thrust requirement
-
Short stroke (typically 6–25mm)
-
Excellent for corrosive and sanitary applications
Actuator Requirements
| Parameter | Requirement |
|---|---|
| Motion | Linear (short stroke) |
| Thrust | Low (typically 500–2000N) |
| Stroke | 6–25mm |
| Mounting | Valve-specific bonnet or ISO |
Actuator Recommendations
| Diaphragm Valve Size | Recommended Actuator |
|---|---|
| 1/2" – 1" | Compact pneumatic (40–50mm bore) |
| 1.5" – 2" | Compact pneumatic (50–63mm bore) |
| 3" – 4" | Compact pneumatic (63–80mm bore) |
7. Pinch Valves
Characteristics
-
Squeezing action (linear or quarter-turn)
-
Very low friction
-
Soft, compressible closure member
Actuator Requirements
| Parameter | Requirement |
|---|---|
| Motion | Linear (preferred) or quarter-turn (cam) |
| Force | Low to moderate |
| Over-travel protection | Critical (can damage sleeve) |
Actuator Recommendations
| Pinch Valve Size | Recommended Actuator |
|---|---|
| 1" – 2" | Compact pneumatic cylinder |
| 3" – 4" | Pneumatic cylinder with stroke stops |
Torque / Thrust Summary Table
| Valve Type | Motion | Peak Torque/Thrust | Recommended Actuator Type |
|---|---|---|---|
| Ball valve | 90° | Breakaway (high) | Rack & pinion |
| Butterfly valve | 90° | Peak at 70–85° | Rack & pinion |
| Plug valve | 90° | Breakaway (very high) | Scotch yoke |
| Gate valve | Multi-turn | Thrust (high) | Multi-turn electric |
| Globe valve | Linear | Thrust (medium) | Diaphragm / piston |
| Diaphragm valve | Linear (short) | Thrust (low) | Compact cylinder |
| Pinch valve | Linear / cam | Force (low) | Cylinder with stops |
| Control valve | Varies | Varies | Modulating + positioner |
ISO Mounting Standards
| Standard | Application | Description |
|---|---|---|
| ISO 5211 | Quarter-turn valves | Flange dimensions for ball, butterfly, plug |
| ISO 5210 | Multi-turn valves | For gate, globe valves |
| ISO 5211 (linear) | Linear actuators | Yoke mounting dimensions |
Common Mistakes to Avoid
| Mistake | Consequence |
|---|---|
| Using quarter-turn actuator on gate valve | Won't work (motion mismatch) |
| Undersizing for ball valve breakaway | Valve won't open |
| Ignoring butterfly valve torque peak | Stalls at 70–85° open |
| Oversizing (too much torque) | Damaged valve stops or seats |
| Wrong ISO mounting flange | Won't bolt on |
| Ignoring duty cycle | Overheating or premature wear |
Quick Selection Flowchart
Identify valve type
│
├── Quarter-turn? ── YES ──→ Ball / Butterfly / Plug
│ │
│ ├── Calculate breakaway torque
│ ├── Add safety factor (25–50%)
│ └── Select rack & pinion or scotch yoke
│
└── Linear / Multi-turn? ── YES ──→ Gate / Globe / Diaphragm
│
├── Calculate thrust required
├── Determine stroke length
└── Select multi-turn electric or cylinder
Need Help Matching Actuators?
Our engineering team can help you select the right actuator for any valve type.
| Actuator Type | Torque / Thrust Range | Best For |
|---|---|---|
| Rack & pinion pneumatic | 5–4000 Nm | Ball, butterfly (small to medium) |
| Scotch yoke pneumatic | 500–250,000 Nm | Plug, large butterfly, high torque |
| Multi-turn electric | 10–2000 Nm | Gate, globe |
| Linear pneumatic | 500–10,000 N thrust | Globe, diaphragm, pinch |
| Modulating electric | 20–3000 Nm | Control valves, precise positioning |
Contact us with your valve specifications for a free sizing recommendation.
