How to Choose the Right Positioner for Your Valve
Step 1: Define Your Control Signal and Communication Requirements
| Input Type | YTC Model | Best Application |
|---|---|---|
| 4-20mA Analog (No Communication) | YT-1000 Series | Legacy analog plants; no diagnostic needs; cost-sensitive |
| 4-20mA with HART | YT-3300 Series | Remote configuration; predictive maintenance; asset management |
| Foundation Fieldbus H1 | YT-3400 Series | Greenfield digital plants; multi-drop segments |
| Profibus PA | YT-3500 Series | European-spec digital installations; Siemens-based systems |
| 3-15 psi Pneumatic | YT-800 Series | No electrical power available; explosive environments; remote wellheads |
Key Questions:
-
Does your DCS have HART capability?
-
Are you implementing an asset management system (AMS)?
-
Is the plant new (Fieldbus) or existing (analog retrofit)?
Step 2: Determine Accuracy and Performance Requirements
| Accuracy Level | Typical Application | Recommended YTC Model |
|---|---|---|
| ±1.0% F.S. | General process control; water treatment; bulk chemical | YT-1000 |
| ±0.5% F.S. | Critical loops; refining; petrochemical; pharma | YT-3300 |
| ±0.3% F.S. | High-precision; custody transfer; LNG | YT-3300 with advanced PID |
Selection Rule:
-
Non-critical loops (cooling water, utility air) → YT-1000
-
Critical loops (reactor temperature, column pressure) → YT-3300
-
Custody transfer or mass balance → YT-3300 with enhanced diagnostics
Step 3: Match to Actuator Type and Size
Actuator Type
| Actuator Type | YTC Model Compatibility | Notes |
|---|---|---|
| Spring-Return Linear | All YTC models | Standard application |
| Double-Acting Linear | YT-1000 / YT-3300 (with double-acting option) | Requires two output ports |
| Spring-Return Rotary | All YTC models | Requires correct cam for 0-90° |
| Double-Acting Rotary | YT-1000 / YT-3300 (double-acting option) | For rack-and-pinion actuators |
| Small Bore (< 1" valve) | YT-1200 (Compact) | Lightweight; space-constrained |
Actuator Size (Volume)
| Actuator Volume | Recommended Positioner | YTC Model |
|---|---|---|
| < 2 Liters | Standard output | YT-1000S, YT-1200, YT-3300 |
| 2-10 Liters | Standard output | YT-1000, YT-3300 |
| > 10 Liters | High-flow output relay | YT-1000L, YT-3300L (with booster) |
Selection Rule:
-
Actuator volume < 5L → Standard positioner.
-
Actuator volume 5-20L → High-flow version.
-
Actuator volume > 20L → External volume booster required.
Step 4: Evaluate Environmental Conditions
| Environmental Factor | YTC Model Capability | Selection Consideration |
|---|---|---|
| Ambient Temperature | -30°C to +85°C (YT-1000) / -30°C to +80°C (YT-3300) | High-temp variant available (+120°C) |
| Humidity / Wet Areas | IP66 standard | IP67 / IP68 available on request |
| Corrosive Atmosphere | Standard aluminum housing | Stainless steel housing for offshore / marine |
| Vibration | Excellent vibration resistance (analog) | YT-1000 preferred for high-vibration areas |
Hazardous Area Classification Guide
| Zone | Definition | Required Certification | YTC Model |
|---|---|---|---|
| Zone 0 | Continuous explosive atmosphere | Ex ia | YT-3300 (Ex ia version) |
| Zone 1 | Likely explosive atmosphere | Ex d or Ex ia | YT-2500 (Ex d), YT-3300 (Ex ia) |
| Zone 2 | Unlikely explosive atmosphere | Ex nA | YT-1000 (Ex nA version) |
| Safe Area | No hazard | Standard | All YTC models |
Selection Rule:
-
Safe area → Standard YT-1000 or YT-3300.
-
Zone 2 → YT-1000 Ex nA.
-
Zone 1 → YT-2500 Ex d or YT-3300 Ex ia.
-
Zone 0 → YT-3300 Ex ia only.
Step 5: Consider Maintenance and Diagnostic Needs
| Maintenance Strategy | Recommended YTC Model | Rationale |
|---|---|---|
| Reactive (Fix when failed) | YT-1000 | Lowest cost; simple repair |
| Preventive (Scheduled overhauls) | YT-1000 or YT-3300 | YT-3300 provides friction trending |
| Predictive (Condition-based) | YT-3300 | Valve signature; friction alerts; stroke time monitoring |
| Remote Monitoring | YT-3300 | Diagnostics via AMS; reduced site visits |
Diagnostic Capabilities of YT-3300:
| Diagnostic Feature | Benefit |
|---|---|
| Valve Signature | Identifies friction, seat wear, spring degradation |
| Friction Trend | Early warning of packing tightening |
| Stroke Time Monitoring | Detects mechanical slowdowns |
| Cycle Counting | Tracks total strokes for scheduling |
ROI Note: YT-3300 typically costs 30-50% more than YT-1000 but reduces unplanned downtime by 50-70%. ROI is achieved within 12-18 months for critical loops.
Step 6: Evaluate Budget and Lifecycle Cost
| Cost Factor | YT-1000 (Analog) | YT-3300 (Smart HART) |
|---|---|---|
| Initial Cost | Lower | Higher (+30-50%) |
| Calibration Labor | Higher (manual) | Lower (auto-calibration) |
| Diagnostic Savings | None | Significant |
| Maintenance Frequency | Annual scheduled | Condition-based (longer intervals) |
| Total Lifecycle Cost (5 years) | Higher | Lower |
Selection Rule:
-
Single positioner for non-critical service → YT-1000.
-
Plant-wide fleet of critical positioners → YT-3300.
-
Large valve population with AMS → YT-3300.
YTC Positioner Selection Quick Reference Matrix
| Application Scenario | Actuator Type | Accuracy | Comms | Environment | Recommended Model |
|---|---|---|---|---|---|
| General chemical loop | Linear, spring | ±1.0% | 4-20mA | Safe | YT-1000 |
| Critical reactor control | Linear, spring | ±0.5% | HART | Zone 1 | YT-3300 Ex ia |
| High-speed packaging | Rotary, double | ±0.5% | 4-20mA | Safe | YT-3300 |
| Offshore wellhead | Rotary, spring | ±1.0% | 4-20mA | Zone 1 / Corrosive | YT-2500 Ex d (SS) |
| Water treatment (small) | Linear, small bore | ±1.0% | 4-20mA | Wet | YT-1200 |
| LNG cryogenic | Linear, large | ±0.3% | HART | Zone 1 / Cold | YT-3300 Ex ia (Low-temp) |
| Refinery FCCU | Linear, double | ±0.5% | HART | Zone 1 / High-temp | YT-3300 Ex ia + thermal kit |
| Pharmaceutical batch | Linear, spring | ±0.5% | HART | Sterile | YT-3300 (Stainless) |
| Remote pipeline | Rotary, spring | ±1.0% | 4-20mA | Zone 2 / Solar | YT-1000 Ex nA |
| Greenfield digital plant | Any | ±0.5% | FF | Zone 1 | YT-3400 |
Step-by-Step Selection Checklist
Use this checklist to document your requirements:
| Selection Factor | Your Requirement | YTC Model Matches |
|---|---|---|
| Input Signal | 4-20mA / HART / FF / PA / Pneumatic | |
| Accuracy Needed | ±1.0% / ±0.5% / ±0.3% | |
| Actuator Type | Linear / Rotary / Double-acting | |
| Actuator Volume | < 2L / 2-10L / > 10L | |
| Ambient Temperature | _____ °C to _____ °C | |
| Enclosure Rating | IP65 / IP66 / IP67 / IP68 | |
| Ex Certification | Ex ia / Ex d / Ex nA / None | |
| Hazardous Zone | Zone 0 / Zone 1 / Zone 2 / Safe | |
| Housing Material | Aluminum / Stainless Steel | |
| Communication Protocol | None / HART / FF / PA | |
| Mounting Type | Linear bracket / Rotary bracket / Remote | |
| Port Thread | NPT / BSPT | |
| Budget Priority | Initial cost / Lifecycle cost | |
| Maintenance Strategy | Reactive / Preventive / Predictive |
Common Selection Mistakes to Avoid
| Mistake | Consequence | Prevention |
|---|---|---|
| Overspecifying accuracy | Paying for unneeded performance | Match accuracy to process requirement |
| Underspecifying actuator volume | Slow stroking | Calculate volume; select high-flow if > 5L |
| Ignoring environmental conditions | Premature failure | Specify Ex rating; stainless for corrosive areas |
| Choosing analog for AMS integration | No diagnostics available | Select HART if AMS is in your roadmap |
| Specifying lubricator upstream of positioner | I/P converter fails | Place lubricator downstream or use FR only |
| Forgetting mounting bracket compatibility | Installation delays | Order mounting kit with positioner |
| Choosing HART without HART-enabled DCS | Cannot communicate | Verify DCS HART capability first |
Summary
Choosing the right YTC valve positioner requires a systematic evaluation of:
-
Control Signal: 4-20mA, HART, Foundation Fieldbus, or Profibus PA.
-
Accuracy: General (±1.0%) or critical (±0.5% or better).
-
Actuator: Type, stroke, volume, and supply pressure.
-
Environment: Temperature, humidity, corrosion, and hazardous area classification.
-
Maintenance Strategy: Reactive, preventive, or predictive.
-
Budget: Initial cost vs. lifecycle cost.
General Guidelines:
-

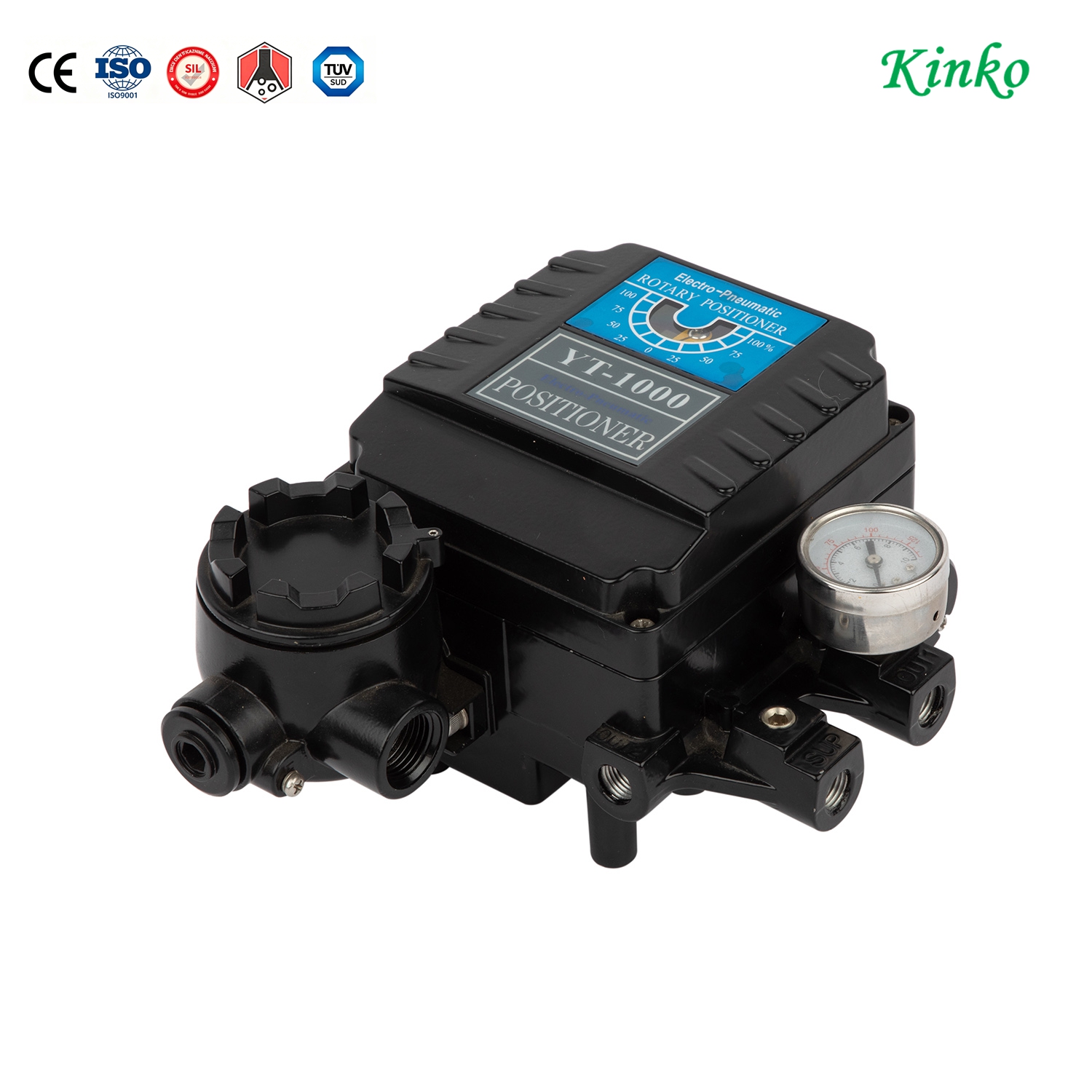

YT-1000: Best for general-purpose analog applications where diagnostics are not required.
-
YT-3300: Best for critical loops, AMS integration, and predictive maintenance programs.
-
YT-1200: Best for compact, small-bore valves in space-constrained installations.
-
YT-2500/2600: Best for hazardous areas requiring flameproof or intrinsically safe certification.
-
YT-3400/3500: Best for greenfield digital plants with Fieldbus infrastructure.
For a site-specific recommendation, provide your Kinko engineering representative with the completed selection checklist. Proper selection ensures your valve package delivers optimal performance, reliability, and value over its full service life.
