Difference Between Mechanical and Inductive Limit Switches

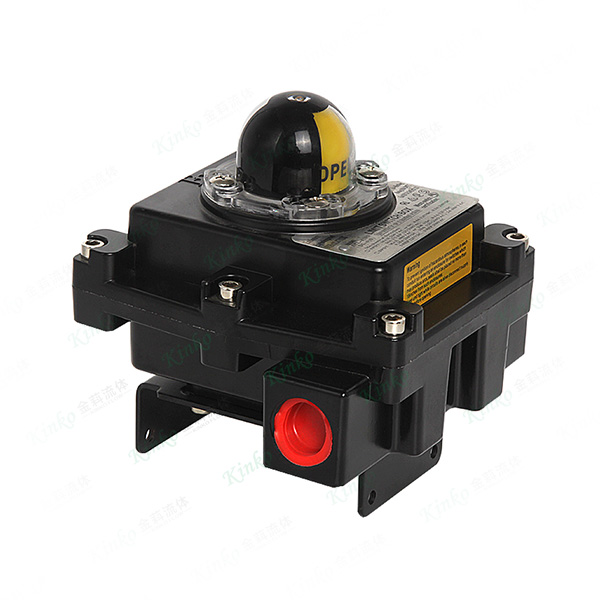

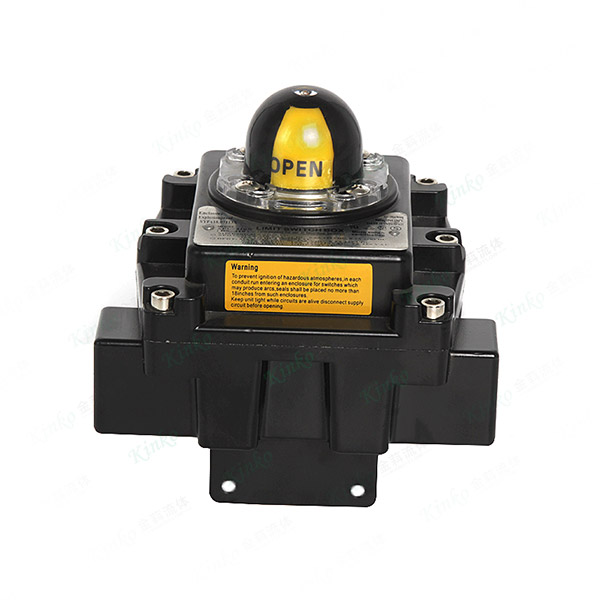

What Is a Limit Switch in Valve Applications?
A limit switch is an electrical sensing device mounted on a valve actuator or positioner that detects when the valve reaches a specific position—typically fully open or fully closed. When the valve reaches that position, the switch sends a discrete electrical signal (contact closure or solid-state output) to the control system.
Common Mounting Options: On actuator yoke, on positioner (integrated), on valve bonnet, or in external switch boxes.
Common Output Signals:
| Output Type | Description | Typical Use |
|---|---|---|
| SPDT Relay Contact | Single Pole Double Throw (Form C) | Most common; dry contact for PLC/DCS |
| DPDT Relay Contact | Double Pole Double Throw | Redundant feedback or interlocking |
| Solid-State (PNP/NPN) | Transistor output; no moving parts | Electronic controllers; high-speed applications |
| Namur (2-Wire Proximity) | Low-voltage DC signal (8.2V) | Intrinsically safe hazardous areas |
Mechanical Limit Switches: How They Work
A mechanical limit switch uses a physical actuator—typically a lever arm, roller plunger, or whisker—that makes direct contact with a moving part of the valve or actuator. When the valve reaches the set position, the mechanical actuator presses against the switch body, causing internal electrical contacts to open or close.
Key Specifications
| Specification | Typical Range | Selection Consideration |
|---|---|---|
| Contact Rating | 10A @ 250V AC / 0.5A @ 125V DC | Must exceed PLC/DCS input card load |
| Operating Force | 1-10 N | Higher force may be required for vibration resistance |
| Mechanical Life | 1-10 million cycles | Higher for gold-plated contacts (low load) |
| Enclosure Rating | IP65, IP67, NEMA 4, NEMA 7 (Ex) | Match to environmental conditions |
Advantages
| Advantage | Explanation |
|---|---|
| High Current Capacity | Can directly switch motor starters, solenoids, and indicator lights (10A+) |
| Positive Contact Indication | Physical contacts provide definitive open/closed confirmation |
| Simple Wiring | Standard 2-wire or 3-wire connection; no external power required |
| Cost-Effective | Lower cost than inductive sensors |
| Wide Temperature Range | Operates from -40°C to +120°C |
| Fail-Safe Operation | Contact failure typically results in an open circuit (safe condition) |
Limitations
| Limitation | Explanation |
|---|---|
| Contact Wear | Physical contacts wear with every cycle; limited mechanical life |
| Contact Arcing | Sparks when switching inductive loads; can weld contacts |
| Slow Response | Snap-action takes 1-10 ms; not suitable for high-speed sensing |
| External Force Required | Requires physical force; unsuitable for low-torque actuators |
| Vibration Sensitivity | Vibration can cause false triggering or contact bounce |
Inductive Limit Switches (Proximity Sensors): How They Work
An inductive proximity sensor detects the presence of a metallic target without any physical contact. It uses a high-frequency oscillating electromagnetic field. When a metal object (the valve stem or a metal cam) enters the field, it induces eddy currents in the metal, which dampens the oscillation. The sensor's electronics detect this change and switch the solid-state output.
Key Specifications
| Specification | Typical Range | Selection Consideration |
|---|---|---|
| Sensing Distance | 2-15 mm | Must exceed mechanical tolerance and thermal expansion |
| Response Frequency | 100-1000 Hz | Much faster than mechanical switches |
| Output Type | PNP, NPN, Namur | Must match PLC/DCS input configuration |
| Operating Voltage | 10-30V DC (standard); 8.2V DC (Namur) | Must match available power supply |
| Hysteresis | 3-15% of sensing distance | Prevents output chatter near switching point |
Advantages
| Advantage | Explanation |
|---|---|
| No Moving Parts | Fully solid-state; no mechanical wear; virtually unlimited life |
| Contactless Operation | No physical force required; suitable for low-torque actuators |
| High Switching Speed | Responds in microseconds (1-2 kHz); ideal for rapid cycling |
| No Contact Arcing | No sparks; safe for explosive environments (with Ex certification) |
| Sealed Construction | Fully encapsulated; immune to dust and moisture |
| High Repeatability | ±0.05 mm typical; consistent switching point |
| Vibration Resistant | No mechanical contacts to bounce; reliable in high-vibration areas |

Limitations
| Limitation | Explanation |
|---|---|
| Requires External Power | Needs 10-30V DC supply; adds wiring and power supply requirements |
| Metal Target Only | Only senses ferrous or conductive metals; non-metallic targets will not activate |
| Temperature Drift | Sensing distance changes with temperature; derating required at high temperatures |
| Limited Output Current | Typically 100-200 mA max; cannot directly switch heavy loads |
| Leakage Current | Small current flows even when "off"; may cause PLC "false on" |
| EMI Susceptibility | Sensitive to electromagnetic fields; requires shielded cable |
| Higher Cost | More expensive than mechanical switches |
Mechanical vs. Inductive: Direct Comparison
| Comparison Factor | Mechanical Limit Switch | Inductive Proximity Switch |
|---|---|---|
| Operating Principle | Physical contact with lever/plunger | Electromagnetic field senses metal target |
| Moving Parts | Yes | No |
| Cycle Life | 1-10 million cycles | Unlimited (theoretical) |
| Switching Speed | 1-10 ms (slow) | < 0.5 ms (fast) |
| Contact Arcing | Yes | No |
| External Power Required | No | Yes (10-30V DC) |
| Output Current Capacity | High (10A+) | Low (100-200 mA) |
| Sensing Force Required | Yes (1-10N) | No |
| Target Material | Any | Metal only |
| Temperature Range | -40°C to +120°C | -25°C to +70°C |
| Vibration Resistance | Moderate | Excellent |
| Dust/Moisture Immunity | Moderate | Excellent |
| Wiring Complexity | Simple | Moderate |
| Cost | Low | Moderate to high |
| Ex Certification | Ex d (flameproof) available | Ex ia / Ex nA (intrinsic safety) available |
Which Limit Switch Should You Choose?
Choose Mechanical Limit Switches When:
| Scenario | Rationale |
|---|---|
| Direct switching of high loads (motors, solenoids) | Mechanical contacts handle 10A+; inductive sensors require interposing relays |
| Simple 2-wire connection required | No external power supply needed |
| Low cycle count (< 500,000 strokes/year) | Mechanical life is sufficient; lower cost advantageous |
| High-temperature environment (> 80°C) | Mechanical operates to 120°C; inductive sensors derate |
| Positive fail-safe indication required | Open contact clearly indicates failure |
| Non-metallic target only (e.g., plastic cam) | Inductive sensors require a metal target |

Choose Inductive Proximity Switches When:
| Scenario | Rationale |
|---|---|
| High cycle count (> 1 million strokes/year) | Unlimited life; mechanical contacts will wear out |
| Explosive/hazardous atmosphere (Zone 0, Zone 1) | Namur sensors are intrinsically safe (Ex ia); no arcing |
| Dirty, dusty, or wet environment | Fully encapsulated; no contamination ingress |
| Low-actuation-force required (small actuators) | No physical force needed; no drag on actuator |
| High-speed or rapid cycling application | Switches in microseconds; mechanical snap-action is slower |
| High-vibration environment | No mechanical contacts to bounce or chatter |
| Reduced maintenance required | No moving parts; maintenance-free operation |
| Precise positioning needed | Excellent repeatability (±0.05 mm) |
Application-Specific Recommendations for YTC Positioners
| Application | Recommended Switch | Rationale |
|---|---|---|
| General chemical plant (moderate cycles) | Mechanical | Cost-effective; sufficient for 10-100 cycles/day |
| Packaging machine (high-speed, 1000+ cycles/day) | Inductive | Unlimited life; high switching speed |
| Offshore platform (salt spray, high vibration) | Inductive (stainless steel) | Fully sealed; no moving parts to corrode |
| Refinery (Zone 1 hazardous, high temperature) | Mechanical Ex d | Flameproof; high-temperature capability |
| Paint booth (Zone 0 hazardous, explosive dust) | Inductive Namur (Ex ia) | Intrinsically safe; no arcing |
| Water/wastewater (wet, dirty, infrequent) | Mechanical (IP67) | Cost-effective; simple wiring |
| LNG terminal (cryogenic, high reliability) | Inductive (low-temp variant) | No moving parts; reliable at -40°C |
| Pharmaceutical sterile area (washdown) | Inductive (IP69K, stainless) | Fully sealed; withstands high-pressure cleaning |
Installation Best Practices for Both Types
| Best Practice | Mechanical Switch | Inductive Sensor |
|---|---|---|
| Cam Design | Smooth cam profile to avoid lever shock | Flat metal target; avoid sharp edges |
| Mounting Rigidity | Rigid bracket to prevent false triggering | Maintain distance from metal surfaces (shielded vs. unshielded) |
| Wiring | Twisted-pair cable; suppress inductive loads | Shielded cable; ground at one end only |
| Gap/Distance | Lever travels 80% of overtravel range | Maintain 50-80% of rated sensing range |
| Environmental Protection | Gland seals on all entry points | Sensor face not coated with metal particles |
| Cable Routing | Route away from high-temperature lines | Route away from VFD cables (EMI) |
Troubleshooting Common Limit Switch Problems
| Problem | Mechanical Switch Cause | Inductive Sensor Cause |
|---|---|---|
| Fails to activate | Lever broken; cam missing | Target too far; non-metallic target; sensor failed |
| Activates at wrong position | Cam loose or slipped | Target misaligned; temperature drift |
| Chatters rapidly | Vibration causing contact bounce | Hysteresis too low; EMI interference |
| Sticks in one position | Spring broken; contacts welded | Not applicable |
| No output signal | Wiring broken; contacts oxidized | Power supply dead; wiring reversed |
| False activation | Worn lever; loose mounting | EMI; target has high residual magnetism |
| Shortened life | Excessive load current; overtravel damage | Not applicable |
