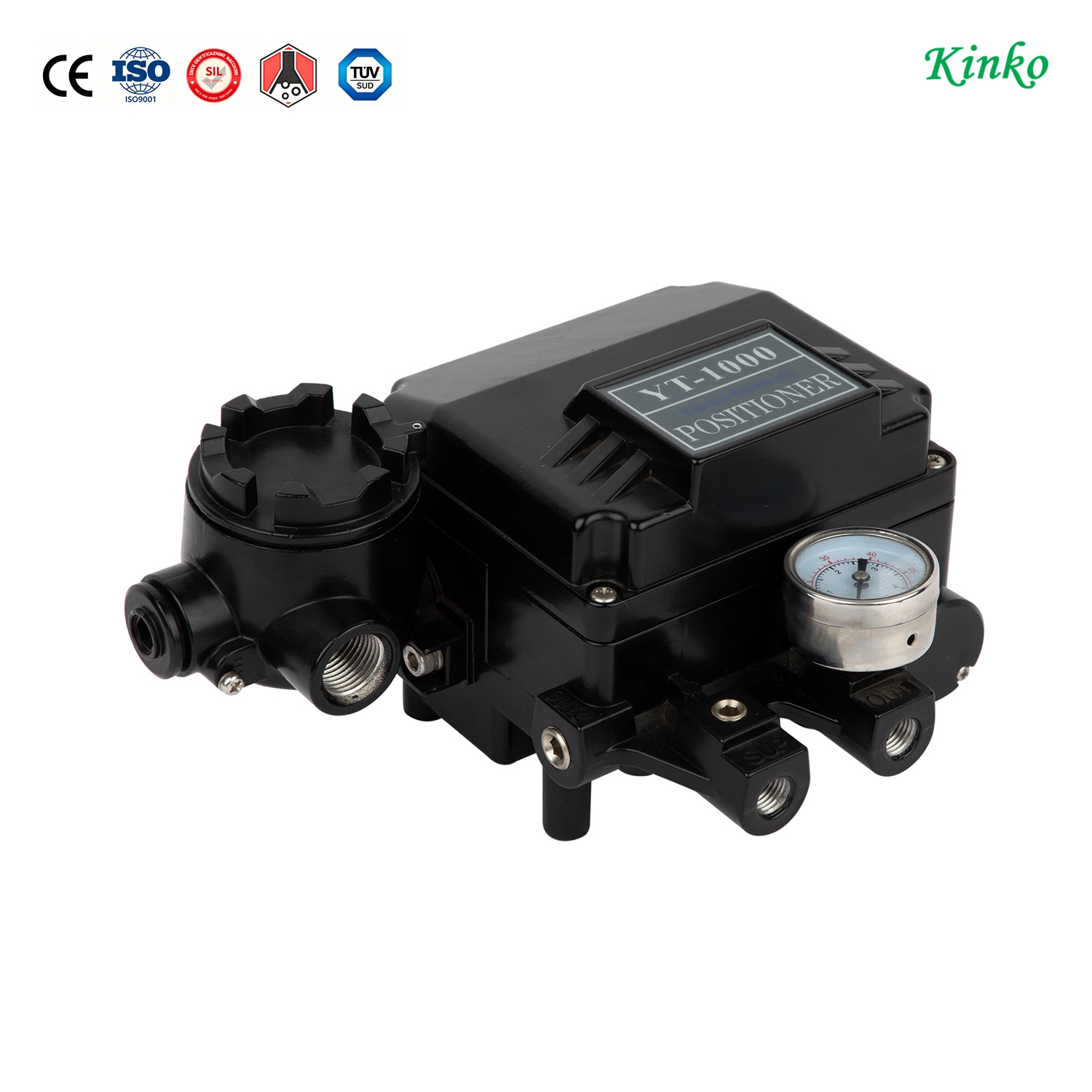

Common Issues with YTC Positioners and Solutions

Publish Time: 06/26 2026 Author: Site Editor Visit: 3

Issue 1: Positioner Hunting (Continuous Oscillation)

Symptoms: Valve oscillates around setpoint; actuator "buzzes" audibly; process variable shows cyclic instability.

Root Cause	Solution
Gain too high	YT-1000: Reduce gain screw counterclockwise. YT-3300: Reduce proportional gain or increase deadband via HART.
Supply pressure fluctuating	Install FR unit immediately upstream; set stable pressure (4-6 bar).
Friction (stiction) in packing	Temporary: Enable dither (YT-3300). Permanent: Loosen packing gland; replace if worn.
Contaminated air	Replace filter; clean I/P converter nozzle with fine wire (0.3mm) + compressed air.
Feedback linkage loose	Tighten all mechanical connections; apply thread-locking compound.

Quick Fix (YT-1000): Reduce gain 1/4 turn. Test with 10% step change. If hunting stops, gain is set correctly.

Issue 2: No Output / Valve Does Not Move

Symptoms: Valve stuck in fail-safe position; no audible air exhaust; no output pressure at OUT port.

Root Cause	Solution
No input signal	Verify 4-20mA at terminals with multimeter. Check DCS output and wiring.
Insufficient voltage	Measure voltage across terminals—must be > 8V DC (YT-1000) or > 10V DC (YT-3300). Increase loop power.
No supply air	Open isolation valve; set FR to 4-6 bar.
Air supply blocked	Replace filter element; inspect tubing; drain water trap.
I/P converter failed	Apply 12mA; check for pilot pressure. If none, replace I/P converter assembly.
Pilot valve stuck	Remove, clean with isopropyl alcohol, reinstall.

Quick Diagnostics:

Multimeter: 0 mA → wiring issue. < 8V DC → voltage too low.
Supply Pressure: 0 bar → air issue. Stable 4-6 bar → air OK.
Manual Override: Moves valve but electrical signal does not → I/P or electronics issue.

Issue 3: Slow Response / Slugging Stroke

Symptoms: Valve takes too long to reach setpoint; positioner "lags" behind command; actuator moves jerkily.

Root Cause	Solution
Supply pressure too low	Increase regulator to actuator's maximum rated pressure (5-6 bar).
Regulator undersized	Replace with higher Cv regulator.
Tubing too long or too small	Use shorter tubing (≤ 5m) and larger diameter (3/8" OD for long runs).
Pilot valve partially blocked	Remove and clean; replace if worn.
Actuator volume too large	Upgrade to high-flow positioner (YT-1000L / YT-3300L) or install volume booster.

Performance Check:

Full stroke time > 30 seconds for 50mm actuator → check pressure and tubing.
Full stroke time > 10 seconds for > 10L actuator → consider volume booster.

Issue 4: Erratic Stroking / Random Valve Movement

Symptoms: Valve moves unpredictably with stable input; output pressure fluctuates randomly; process shows spikes.

Root Cause	Solution
Electrical noise (EMI)	Use shielded twisted-pair cable; ground shield only at DCS end; route away from VFD cables; install signal isolator if needed.
Ground loops	Ensure single-point grounding; shield not grounded at positioner end.
Loose wiring	Tighten terminal screws; check for broken strands.
Feedback sensor failure (YT-3300)	Run "Feedback Calibration" via HART. If fails, replace feedback module.
Mechanical play	Tighten cam set screws; replace worn pivot pins.

Diagnostic Tip: Substitute with a known stable mA signal. If erratic behavior stops → EMI or DCS issue. If persists → positioner internal issue.

Issue 5: Valve Does Not Reach Full Stroke

Symptoms: Valve only opens to 80% at 20mA (or closes to 20% at 4mA); control loop cannot achieve required flow.

Root Cause	Solution
Zero/Span misadjusted	YT-1000: Recalibrate Zero (4mA) and Span (20mA) screws iteratively. YT-3300: Run "Auto Stroke Calibration" via HART.
Feedback lever incorrectly positioned	Apply 12mA; set valve to 50% stroke; set lever to 90° to actuator shaft; tighten.
Cam installed incorrectly	Verify cam matches actuator type (linear/rotary); ensure cam is tight on shaft.
Actuator spring range mismatch	Confirm spring range matches positioner output (0-10 bar).
Mechanical stop limiting stroke	Loosen travel stops to allow full 0-100% travel.

Calibration Verification:

4mA = 0% (mechanical stop)
12mA = 50% stroke
20mA = 100% (mechanical stop)

Issue 6: Air Leakage from Positioner

Symptoms: Audible hissing from exhaust; continuous air consumption; supply pressure drops over time.

Root Cause	Solution
Worn pilot valve seat	Replace pilot valve assembly.
Debris in pilot valve	Remove, clean with isopropyl alcohol, reinstall.
Damaged diaphragm	Replace diaphragm or relay assembly.
Loose fittings	Tighten compression fittings; apply PTFE tape on threads.
O-ring failure	Replace O-rings on positioner base, filter, and tube fittings.

Leak Detection: Apply soapy water to connections and exhaust port. Bubbles indicate leak source. Continuous exhaust flow with steady signal indicates internal pilot valve leak.

Issue 7: HART Communication Failure (YT-3300)

Symptoms: HART communicator cannot connect; no response to commands; DCS cannot read diagnostics.

Root Cause	Solution
Loop resistance too low	Insert 250Ω resistor in series (near DCS card).
Wiring reversed	Verify terminal polarity (+ and -).
Communicator issue	Install correct YTC DTM/EDDL file.
Positioner not in HART mode	Enable HART protocol in configuration.
Cable capacitance too high	Use shielded low-capacitance cable (< 30 pF/m); total length < 3000m.

Quick Check: Measure loop resistance across positioner terminals (DCS disconnected). If < 230Ω, add resistor. Connect communicator directly to positioner—if communication works → cable issue.

Troubleshooting Quick Reference Table

Problem	Most Likely Cause	First Action
Hunting (oscillation)	Gain too high or dirty I/P	Reduce gain; clean nozzle
No output / valve does not move	No input signal or no supply air	Check mA and supply pressure
Slow response	Low supply pressure or undersized regulator	Increase pressure; check tubing
Erratic stroking	EMI or loose wiring	Check shielding; tighten terminals
Valve does not reach full stroke	Zero/Span misadjusted	Recalibrate; check feedback lever
Air leakage	Worn pilot valve or loose fittings	Apply soapy water; replace pilot valve
HART communication failure	Loop resistance too low	Add 250Ω resistor

Preventive Maintenance Schedule

Frequency	Task	Prevents
Monthly	Drain water from FR filter bowl	Contamination in I/P converter
Quarterly	Inspect and clean I/P converter nozzle	Hunting and erratic output
Quarterly	Verify supply pressure and regulator setpoint	Slow response and stroke errors
Annually	Recalibrate zero/span (YT-1000) or run auto-calibration (YT-3300)	Stroke drift and poor linearity
Annually	Replace filter element in FR unit	Debris entering positioner
As needed	Check and tighten all mechanical linkages	Hysteresis and non-linearity
