How Do Actuators Ensure Safety in Fluid Control Systems?

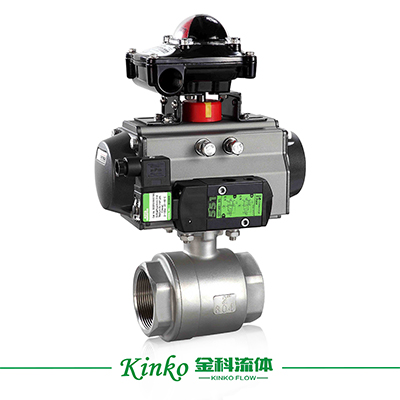

1. Fail-Safe Positioning (Spring-Return)

The most reliable safety mechanism is a mechanical spring-return actuator. Upon power or signal loss, the spring instantly moves the valve to a preset safe position:

• Fail-Closed (FC): Spring closes the valve. Used for fuel lines, toxic chemicals.

• Fail-Open (FO): Spring opens the valve. Used for cooling water, relief lines.

Battery backup or capacitor-based systems exist, but pure mechanical spring-return remains the gold standard for safety-critical applications.

2. Emergency Shutdown (ESD) & SIL Certification

For high-risk processes, actuators must meet IEC 61508 / 61511 standards and carry a Safety Integrity Level (SIL) rating.

• SIL 2 capable: Single actuator suitable for many ESD functions.

• SIL 3 capable: Often requires redundant actuators or additional diagnostics.

A certified actuator comes with a defined Safety Function (e.g., de-energize to close) and documented Safe Failure Fraction (SFF). Always request the manufacturer’s Safety Manual, not just the product brochure.

3. Partial Stroke Testing (PST)

One hidden danger: a valve that sits closed for months may seize without anyone knowing. Partial Stroke Testing (PST) allows the actuator to move the valve 10–20% of travel without disrupting the process.

Smart electric and electro-hydraulic actuators offer integrated PST, which verifies mechanical integrity while the plant runs. This is now a common requirement for tank overfill protection and pipeline ESD valves.

4. Explosion-Proof & Hazardous Area Compliance

Fluid control systems often handle flammable fluids. The actuator itself must not become an ignition source.

Common certifications include:

• ATEX / IECEx (international)

• UL / cUL (North America)

Typical protection methods are Ex d (flameproof enclosure) or Ex e (increased safety) . Always verify the gas group (IIC vs. IIB) and temperature class for your specific zone.

​

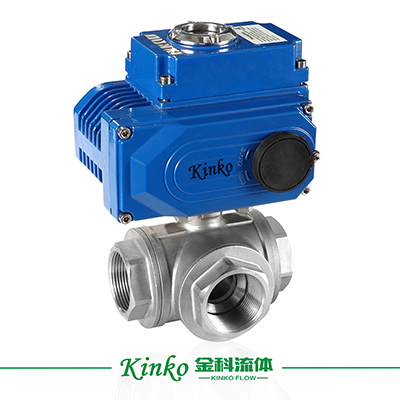

5. Over-Torque & Overload Protection

Too much force can damage the valve seat, stem, or disc, leading to leaks. Safety-rated actuators include torque limiting features:

• Mechanical clutch: Disengages the motor if torque exceeds a set threshold.

• Electronic shutoff: Monitors motor current and stops or reverses instantly upon obstruction.

This prevents valve breakage and maintains process containment.

6. Position Feedback & Self-Diagnostics

An actuator cannot be safe if you don’t know its position. Modern actuators include:

• Non-contact position sensors (potentiometer or encoder) for continuous feedback to DCS/PLC.

• Diagnostic logs for cycle count, torque profile, battery health, and air supply pressure.

These alerts allow maintenance teams to act before a failure occurs.

Technical Comparison Table

Use this table to evaluate actuator types for safety-critical applications:
