Common Problems with Valve Actuators and How to Fix Them

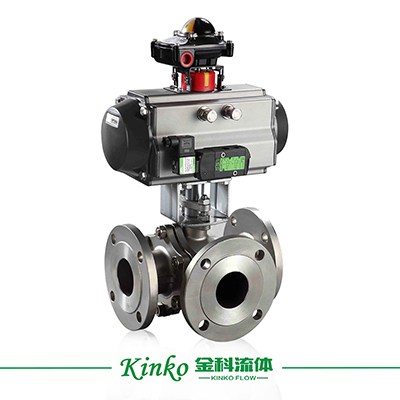

1. Pneumatic Actuator Problems (JAT-SR Series)

Pneumatic actuators are prized for their simplicity and durability. However, they rely entirely on a clean, consistent air supply and mechanical integrity.

Problem #1: Actuator Strokes Slowly or Inconsistently

Symptoms:

• Valve takes longer than usual to open or close.

• Movement is jerky or hesitant, especially at the start or end of stroke.

• Cycle times are no longer consistent.

Root Causes:

• Insufficient Air Pressure: The supply pressure has dropped below the actuator's minimum requirement.

• Clogged Pilot Solenoid: Debris or moisture in the air line is blocking the solenoid valve.

• Flow Control Restriction: The speed control valves are too tightly closed or are faulty.

• Exhaust Blockage: The silencer on the solenoid exhaust port is clogged with dirt or ice (in freezing conditions).

How to Fix It:

1. Check Supply Pressure: Verify the pressure at the actuator inlet with a gauge. Ensure it matches the actuator's rated pressure (typically 4-8 bar for JAT-SR). If low, trace back to the compressor or main line regulator.

2. Clean or Replace Solenoid: Remove the solenoid pilot. Clean the internal mechanism with an appropriate solvent or replace the coil/armature if damaged.

3. Adjust Flow Controls: Open flow controls fully, then slowly adjust to achieve the desired speed. If adjustment does nothing, replace the flow control valve.

4. Inspect Silencer: Unscrew the exhaust silencer. If black or clogged, clean it or replace it. In cold environments, consider a heater or a non-icing silencer.

Problem #2: Actuator Fails to Move at All

Symptoms:

• Valve is stuck in one position (open, closed, or partial).

• No air exhaust sound when solenoid is energized.

• Manual override does not move the valve.

Root Causes:

• Complete Air Loss: No air pressure reaching the actuator.

• Seized Internal Components: Corrosion or debris has jammed the piston or pinion.

• Broken Spring (Spring Return Models): A fractured spring cannot return the actuator, or debris from the broken spring jams the mechanism.

• Solenoid Coil Burnout: The electrical coil has failed, so the pilot valve does not shift.

How to Fix It:

1. Verify Air Supply: Check the main air line. Is the isolation valve closed? Is the regulator turned all the way down?

2. Test Solenoid Manually: Press the manual override button on the solenoid. If the actuator moves, the problem is electrical (coil or wiring). If it does not move, the problem is mechanical or pneumatic.

3. Check for Seizure: Isolate the actuator and carefully attempt to move the valve linkage by hand (with a wrench, if safe). If it does not budge, the actuator may need disassembly and cleaning.

4. Inspect Springs (Caution!): If you suspect a broken spring in a JAT-SR, do not attempt to disassemble without proper training. Compressed springs contain dangerous energy. Return the unit to a qualified service center.

Problem #3: External Air Leaks

Symptoms:

• Hissing sound coming from the actuator body or end caps.

• Visible condensation or ice buildup at leak points.

• Gradual drop in system pressure.

Root Causes:

• Worn Seals/O-Rings: The most common cause. Seals dry out, crack, or wear down over time.

• Loose End Caps: Vibration can loosen the tie rods or end cap bolts.

• Porosity in Housing: Casting defects (rare, but possible in low-quality units).

How to Fix It:

1. Identify Leak Source: Use a soapy water spray (leak detector) on the actuator body while pressurized. Bubbles will form at the leak.

2. Tighten Bolts: If the leak is from the end cap joints, carefully tighten the tie rod nuts to the manufacturer's specified torque.

3. Replace Seal Kit: If the leak is from the pinion shaft or piston area, the actuator requires a rebuild. KINKO offers seal kits for JAT-SR series. Disassemble, clean, replace all O-rings and seals, and reassemble with proper lubrication.

2. Electric Actuator Problems (KK Series & JAT Series)

Electric actuators offer precision and smart features but introduce electrical and electronic failure points.

Problem #4: Actuator Does Not Move / No Power

Symptoms:

• No response when control signal is given.

• Display (if equipped) is blank.

• Motor does not hum or attempt to run.

Root Causes:

• Loss of Power Supply: Main power disconnected, tripped breaker, or blown fuse.

• Thermal Overload Trip: The motor has overheated due to excessive cycling or being undersized, and the internal thermal switch has cut power.

• Faulty Control Board: Electronics have failed due to power surge or component age.

How to Fix It:

1. Check Power Source: Verify voltage at the actuator terminals with a multimeter. Check the circuit breaker and fuses.

2. Allow Cool Down: If thermal overload is suspected, wait 15-30 minutes for the actuator to cool. It may reset automatically. Investigate why it overheated (too many starts per hour, valve too stiff).

3. Inspect Wiring: Look for loose connections, damaged wires, or corrosion at terminals.

4. Consult Manual: If power is present but the actuator is dead, the control board may need replacement. Contact KINKO technical support with your KK or JAT model number.



Problem #5: Actuator Stalls or Loses Torque

Symptoms:

• Actuator starts moving but stops midway.

• Motor runs but valve does not move (possible gear train issue).

• "Torque fault" or "stall" alarm on the controller.

Root Causes:

• Valve Torque Exceeds Actuator Rating: The valve has become stiff (seat wear, debris, or pressure spike) and now requires more force than the actuator can provide.

• Incorrect Limit Switch Setting: The travel stops are set incorrectly, causing the actuator to try to drive past the mechanical stop.

• Gear Wear or Damage: Worn gears in the KK Series transmission can slip under load.

How to Fix It:

1. Check Valve Manually: Isolate the line and try to move the valve by hand (using a wrench or the manual override on the KK Series). If it is very stiff, the valve itself is the problem—not the actuator.

2. Verify Torque Settings: If the actuator has adjustable torque switches (common on KK Series), ensure they are set high enough to handle the valve's requirement (with safety factor).

3. Recalibrate Limits: Run the actuator to the full open and closed positions. Reset the limit switches (cams or electronic) to stop the actuator at the correct points before it binds.

4. Inspect Gearing: If you hear grinding noises or feel roughness when using the manual override, internal gears may be damaged. This typically requires factory service.

Problem #6: Position Inaccuracy / Drift (JAT Series)

Symptoms:

• The linear slide does not stop at the exact programmed position.

• Position drifts over time, especially when powered off.

• "Following error" alarms on the servo drive.

Root Causes:

• Encoder Issues: The feedback device (magnetic or optical encoder) is dirty, misaligned, or failing.

• Mechanical Backlash: Excessive wear in the ballscrew or timing belt of the JAT Series.

• PID Tuning Issues: The control loop gains are not optimized for the load, causing overshoot or instability.

How to Fix It:

1. Check Mechanical Coupling: Ensure the linear stage is rigidly coupled to the load. Loose bolts cause "lost motion."

2. Run Auto-Tuning: If using a servo-driven JAT actuator, run the drive's auto-tuning routine to optimize PID gains for the specific load mass.

3. Inspect for Backlash: With power off, try to move the slide by hand. If you feel excessive "play," the ballscrew or nut may be worn and require replacement.

4. Clean Encoder: For optical encoders, a small amount of dust can cause missed pulses. Consult the manual for cleaning procedures.

3. Common Problems Affecting Both Types

Problem #7: Corrosion and Environmental Damage

Symptoms:

• Rust or white oxidation on housing.

• Seized manual override shafts.

• Failed seals leading to internal leaks.

Root Causes:

• Actuator is exposed to harsh chemicals, saltwater, or washdown procedures without adequate protection.

• Paint or coating has been damaged.

How to Fix It:

1. Upgrade Protection: For harsh environments, ensure you have the correct option. The KINKO KK Series offers IP68 protection for submersion. JAT-SR pneumatic actuators can be specified with stainless steel bodies or epoxy coatings.

2. Preventive Maintenance: Regularly clean and inspect actuators. Touch up any scratched paint immediately.

3. Desiccant Breathers: For electric enclosures (KK Series), ensure breather drains are clear and desiccant is fresh to prevent condensation inside the electrical compartment

4. Preventive Maintenance: The Best Fix

The most effective way to handle actuator problems is to prevent them from occurring in the first place. Implement a simple preventive maintenance schedule:

Monthly:

• Visual Inspection: Check for leaks, corrosion, loose wiring, and damaged components.

• Listen: Note any unusual noises during operation (grinding, hissing).

Quarterly:

• Check Air Supply: Drain water from air filters. Check lubricator oil level (if used).

• Verify Torque Settings: For electric actuators, log motor current or torque readings to detect trends indicating valve wear.

• Exercise Valves: If valves are rarely used in normal operation, cycle them periodically to prevent seats from sticking.

Annually:

• Seal Replacement (Pneumatic): In critical or dirty environments, consider rebuilding pneumatic actuators with new seal kits.

• Electrical Connection Retorque: Turn off power and check all terminal screws for tightness.

• Battery Replacement: If electric actuators have position feedback batteries (for absolute encoders), replace them per the schedule.
