Can a Pneumatic Ball Valve Handle High-Pressure Gas and Liquid?

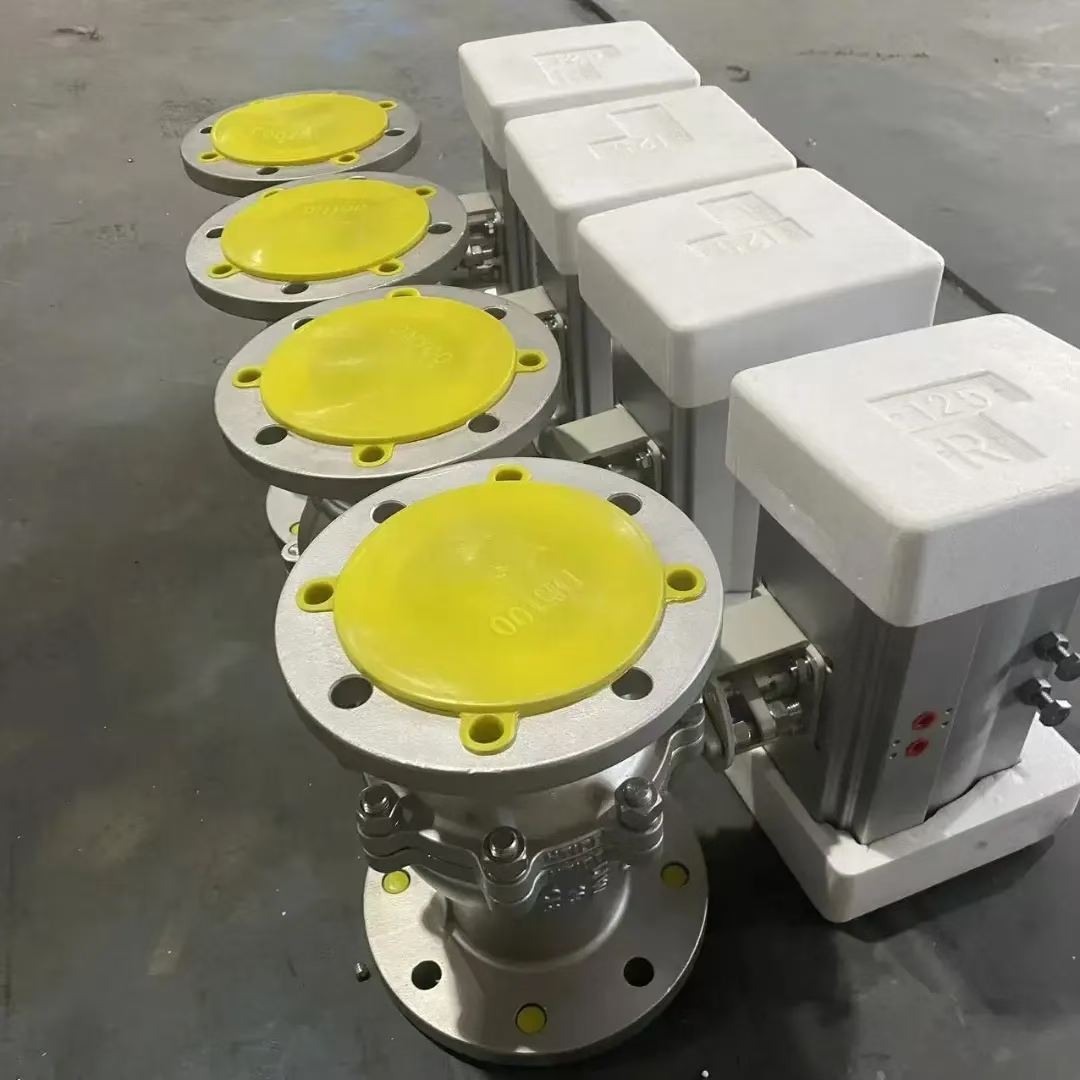

1. The Short Answer: Yes – But Only If Properly Specified
A pneumatic ball valve can absolutely handle high-pressure gas and liquid services—provided that the valve body rating, seat material, actuator torque, and sealing design are correctly matched to the service conditions.
Common high-pressure capabilities:
-
Standard floating ball valves: up to ANSI 600 (10 MPa / 100 bar)
-
Trunnion-mounted ball valves: up to ANSI 2500 (42 MPa / 420 bar)
-
Special high-pressure designs: up to 15,000 PSI (103 MPa) for oilfield and subsea applications
However, "high pressure" alone is not the full story. The real challenge lies in differential pressure (ΔP), temperature, and cycle frequency—which affect seating torque, seal life, and actuator sizing.
2. Key Pressure Ratings Explained
| Rating Standard | Pressure (bar) | Pressure (PSI) | Typical Application |
|---|---|---|---|
| PN 16 | 16 bar | 232 PSI | Low-pressure water/air |
| PN 40 | 40 bar | 580 PSI | Medium-pressure steam/gas |
| ANSI 150 | 19.6 bar @ 38°C | 285 PSI | General industrial |
| ANSI 300 | 51.1 bar @ 38°C | 740 PSI | Process plants |
| ANSI 600 | 103 bar @ 38°C | 1,480 PSI | High-pressure gas/liquid |
| ANSI 900 | 155 bar @ 38°C | 2,250 PSI | High-pressure hydrocarbon |
| ANSI 1500 | 259 bar @ 38°C | 3,750 PSI | Severe service |
| ANSI 2500 | 431 bar @ 38°C | 6,250 PSI | Wellhead, subsea |
| Special HP (>10,000 PSI) | 690+ bar | 10,000+ PSI | Oilfield, hydraulic systems |
3. Critical Factors for High-Pressure Gas Service
High-pressure gas is significantly more challenging than liquid due to:
-
Compressibility: Gas stores more energy; sudden pressure release can cause rapid disc/seat damage.
-
Permeation: Small gas molecules (H₂, CH₄) can permeate PTFE seats, causing blistering.
-
Temperature drop: Rapid gas expansion (Joule-Thomson effect) can freeze moisture or hydrate formation.
Recommendation for gas: Use trunnion-mounted design (not floating) for sizes ≥DN80 and pressures >ANSI 600 to reduce seat friction and unbalance forces.
| Feature | Floating Ball Valve | Trunnion-Mounted Ball Valve |
|---|---|---|
| Ball support | Ball floats between seats | Ball fixed on trunnion bearings |
| Seat design | Pressure-energized (spring-loaded) | Upstream seat floats; downstream fixed |
| Maximum pressure | ANSI 600 (100 bar) | ANSI 2500 (420 bar) |
| Operating torque | Higher (seat compression) | Lower (bearing support) |
| Best for | Small sizes, low-to-medium pressure | Large sizes, high pressure, high cycling |
4. Seat Material Selection – The Decisive Factor
The seat material determines the pressure-temperature limit and shut-off tightness.
| Seat Material | Max Temp. | Max Pressure | Key Characteristics |
|---|---|---|---|
| PTFE (Virgin) | 200°C | 100 bar | Standard, low friction, bubble-tight, not for high-pressure gas cycling |
| RPTFE (Reinforced) | 230°C | 150 bar | Higher wear resistance; suitable for gas/liquid |
| PEEK | 260°C | 250 bar | Excellent for high-pressure gas; low permeation; good wear resistance |
| PPL (Polyphenylene) | 220°C | 150 bar | Alternative to PTFE; higher temperature |
| Metal (Stellite/Inconel) | 450°C+ | 420 bar | Full metal seat; tight shut-off only with lapped surfaces; requires higher torque |
| Devlon (Nylon/PA) | 150°C | 100 bar | Good for abrasive media; moisture absorbent—avoid for wet gas |
Rule of thumb:
-
For high-pressure gas (>100 bar): Use PEEK or metal-seated trunnion ball valves.
-
For high-pressure liquid: RPTFE or PEEK are usually sufficient (liquid is incompressible, less seat stress).
-
For sour gas (H₂S): Ensure NACE MR0175/ISO 15156 compliant materials.

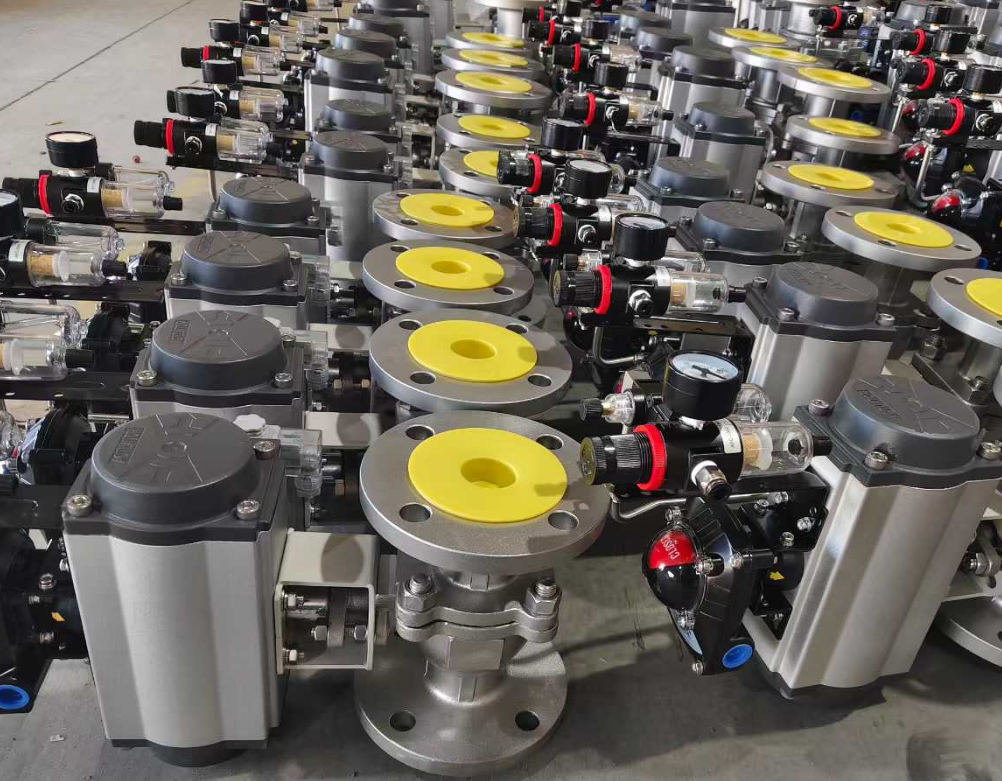

5. Actuator Sizing – The Hidden Challenge
High pressure creates high ball-to-seat friction and unbalanced stem forces. A pneumatic actuator must be sized for:
-
Break torque: Initial torque to overcome static friction and seat compression.
-
Running torque: Friction during rotation (lower than break torque).
-
Seat torque: Additional torque from differential pressure pushing the ball into the downstream seat.
Formula approximation (quarter-turn):
Actuator torque (Nm) ≥ (Ball friction torque + Seat friction torque + Stem packing friction) × Safety Factor (1.25~1.5)
| Condition | Torque Increase vs. Low Pressure |
|---|---|
| Floating ball, ΔP = 100 bar | ~3× higher than ΔP = 10 bar |
| Trunnion-mounted, ΔP = 100 bar | ~1.5× higher (bearing support reduces load) |
| PTFE seat, dry gas | 20~30% higher than lubricated liquid service |
| Metal seat, high ΔP | 2~4× higher than soft seat (requires larger actuator) |
Critical: Always request a torque test sheet from the valve manufacturer—do not rely on catalog torque tables for high-pressure gas applications.
6. Performance Comparison – High-Pressure Gas vs. Liquid
| Factor | High-Pressure Liquid | High-Pressure Gas |
|---|---|---|
| Seat stress | Lower (liquid incompressible, static) | Higher (gas compressibility, dynamic seat unloading) |
| Seat permeation risk | None | PTFE/PEEK gradual gas absorption (blistering) |
| Fire safety | Lower priority | High priority (hydrocarbon gas—fire-safe required) |
| Stem seal design | Standard packing (PTFE V-rings) | O-ring + PTFE stack (double seal) for gas-tightness |
| Actuator sizing | Break torque dominates | Break + dynamic seat torque dominate |
| Anti-static design | Optional | Mandatory (API 607/ISO 10497) to prevent spark from static build-up |
| Leakage standard | FCI 70-2 Class VI (bubble-tight) | ISO 5208 Rate A (zero visible leakage) for gas—more stringent |
7. Industry Standards for High-Pressure Ball Valves
| Standard | Scope | Requirement |
|---|---|---|
| API 6D | Pipeline valves | Covers pressure ratings, testing, and materials for gas/liquid pipelines |
| API 607 / ISO 10497 | Fire-safe testing | Valve must maintain shut-off after 15 minutes of fire |
| API 6FA | Fire-safe for pipeline ball valves | More stringent than API 607 |
| NACE MR0175 / ISO 15156 | Sour service (H₂S) | Material hardness limits to prevent sulfide stress cracking (SSC) |
| ASME B16.34 | Pressure-temperature ratings | Maximum allowable working pressure at specified temperature |
| ISO 17292 / BS 6364 | Low-temperature/cryogenic | For services below -50°C (e.g., LNG) |
| FCI 70-2 / IEC 60534-4 | Seat leakage classification | Class V or VI for high-pressure gas—requiring zero visible leakage |
8. Technical Specification Table – High-Pressure Pneumatic Ball Valve (Typical)
| Parameter | Recommended Option / Value |
|---|---|
| Pressure rating | ANSI 150 ~ ANSI 2500 (or PN16 ~ PN420) |
| Valve design | Floating ball (≤DN80, ≤ANSI 600) / Trunnion-mounted (≥DN80, >ANSI 600) |
| Body material | ASTM A216 WCB (carbon), A351 CF8M (316 SS), Hastelloy, Inconel |
| Ball material | 316 SS (standard), 316L, 17-4PH (hardened), tungsten carbide-coated |
| Seat material | RPTFE (liquid), PEEK (high-pressure gas), Metal (steam/high-temp) |
| Stem seal | PTFE V-rings + graphite packing (gas) / O-ring + PTFE (liquid) |
| Actuator type | Rack-and-pinion (light/medium) / Scotch-yoke (high torque/heavy) |
| Actuator supply pressure | 4 ~ 8 bar (60 ~ 120 PSI) |
| Actuator fail-safe | Spring-return (fail-open/fail-closed) or double-acting |
| Leakage rate (gas) | ISO 5208 Rate A (zero bubbles/min) |
| Leakage rate (liquid) | FCI 70-2 Class VI (≤0.01 ml/min per inch) |
| Fire-safe certification | API 607 / API 6FA (required for hydrocarbon gas) |
| Anti-static device | Required for gas (spring-loaded ball-stem-grounding) |
| Blow-out proof stem | Mandatory (ASME requirement) |
| Enclosure rating | IP66 / IP67 (pneumatic actuator) |
| Temperature range | -40°C ~ +200°C (PEEK seat) / -20°C ~ +450°C (metal seat) |
