How to Select Accessories for Pneumatic Actuators
How to Select Accessories for Pneumatic Actuators
Selecting the right actuator is only half the battle. The accessories that mount onto it—positioners, solenoid valves, limit switches, and FRL units—determine whether the final assembly performs reliably, safely, and efficiently.
This guide outlines the key selection criteria for each accessory category.
Before You Start: Actuator Parameters
Gather these actuator specifications first:
-
Torque output at rated and minimum supply pressure
-
Stroke volume (internal air displacement per full stroke)
-
Mounting interface (preferably NAMUR VDI/VDE 3845)
-
Fail-safe configuration (spring-return or double-acting)

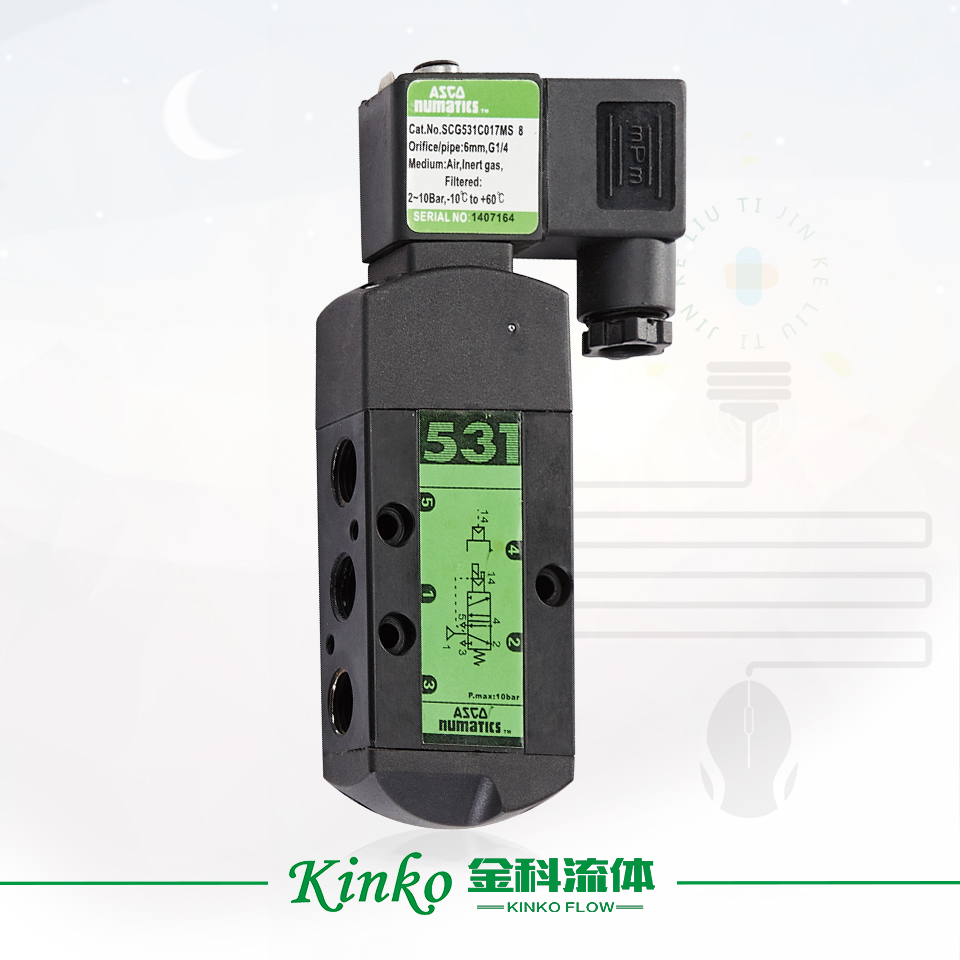

Solenoid Valves
The solenoid converts electrical commands into pneumatic pressure.
Selection criteria:
| Factor | What to Check |
|---|---|
| Flow capacity (Cv) | Must match stroke volume and required stroking time |
| Valve function | 3/2 way for spring-return; 5/2 way for double-acting |
| Coil voltage | Match site standard (24V DC, 110V AC, 230V AC) |
| Ex-protection | ATEX / IECEx if installed in explosive zones |
| Manual override | Essential for commissioning and emergency operation |
Positioners
For modulating (throttling) applications, the positioner is mandatory.
Selection criteria:
| Factor | What to Check |
|---|---|
| Control signal | 4–20 mA analog standard; HART/Profibus for diagnostics |
| Actuator type | Linear or rotary—match feedback mechanism |
| Air consumption | Low-bleed designs for energy-sensitive sites |
| Housing material | Aluminum for standard; stainless steel for corrosive environments |
| Temperature range | Verify coverage of site extremes |
Limit Switches
Provide end-position confirmation to the control system.
Selection criteria:
| Factor | What to Check |
|---|---|
| Switch type | Mechanical (SPDT) or inductive proximity |
| Contact rating | Must handle PLC input current |
| Redundancy | Dual switches for SIL-rated safety applications |
| Output type | Dry contact or PNP/NPN—match your input card |
| Visual indicator | Dome/flag for field verification |

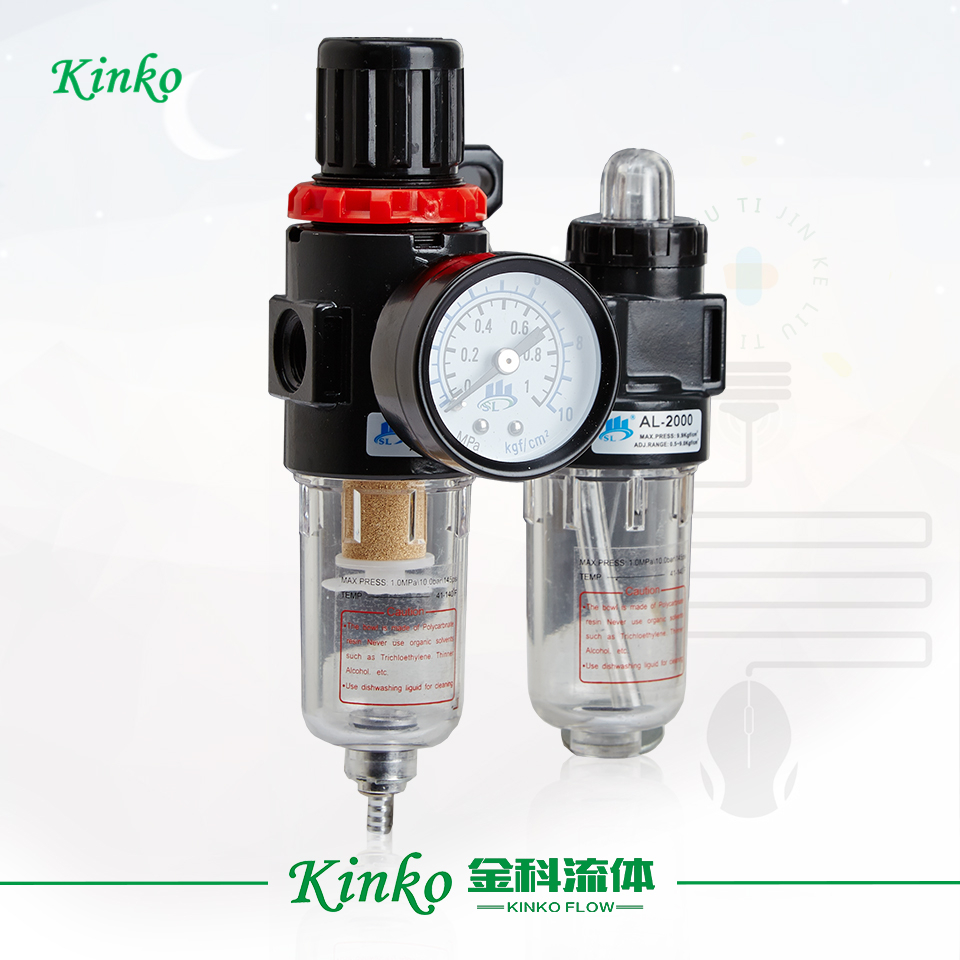

FRL Units (Filter, Regulator, Lubricator)
Every pneumatic actuator requires clean, regulated, and optionally lubricated air.
Selection criteria:
| Factor | What to Check |
|---|---|
| Port size | Match actuator inlet (e.g., 1/4", 3/8", 1/2") |
| Flow capacity | Must exceed peak air consumption |
| Filtration level | 5-micron standard; coalescing for oil removal |
| Regulator range | Cover actuator's min/max supply pressure |
| Lubricator | Required unless actuator is "lubrication-free" |
Environmental & Interface Compatibility
Overarching factors that apply to all accessories:
-
Mounting Standard: NAMUR VDI/VDE 3845 ensures interchangeability—specify NAMUR-compliant where possible.
-
Ingress Protection: IP67 for indoor; IP68 for washdown/submersible; IP66 for high-pressure hose-down.
-
Corrosion Resistance: Offshore or chemical sites require stainless steel or epoxy-coated aluminum.
-
Temperature: All accessories must share a common operating range—the weakest link defines the assembly.
Quick Selection Checklist
| Accessory | Primary Sizing Factor | Critical Environmental Factor |
|---|---|---|
| Solenoid Valve | Cv / flow capacity | Ex-protection (ATEX) |
| Positioner | Control signal type | Temperature range |
| Limit Switch | Contact rating | IP / Ingress protection |
| FRL Unit | Port size / flow | Corrosion resistance |
Common Mistakes to Avoid
-
Undersized solenoids cause slow stroking.
-
Ignoring ambient temperature leads to positioner failure in cold climates.
-
Mixing thread standards (NPT vs. BSP) causes leaks.
-
Overlooking power consumption can overload remote I/O cards.
-
Forgetting spare parts delays maintenance—order spare coils, filter elements, and switch cartridges upfront.
Conclusion
Accessory selection is systematic: start with actuator torque, volume, and interface. Then size each component—solenoid, positioner, limit switch, and FRL—based on flow, signal, and environmental demands. Prioritize NAMUR compliance for interchangeability and simplified future replacements.
