Complete Set of Valve Accessories: Functions and Uses

A control valve is more than its body and trim. The accessories mounted onto it transform a simple mechanical device into an intelligent, safe, and responsive final control element.

For procurement engineers and plant operators, understanding the function of each accessory is essential for specifying the right package and troubleshooting field issues.

This article provides a complete overview of every major valve accessory, its core function, and typical application use cases.

1. Positioners

Function: Compares the control signal from the DCS/PLC to the valve stem's actual position and adjusts actuator pressure to eliminate deviation. Ensures accurate throttling control.

Uses:

• Modulating (throttling) control loops

• Applications requiring precise flow, pressure, or temperature regulation

• Smart positioners with HART/Profibus add diagnostics for predictive maintenance

2. Solenoid Valves

Function: Converts an electrical "open" or "close" command into pneumatic pressure to stroke the actuator. Acts as the pilot relay for on/off applications.

Uses:

• On/off isolation and shutoff valves

• Emergency shutdown (ESD) systems

• Fail-safe circuits where valve must move to a safe position upon power loss

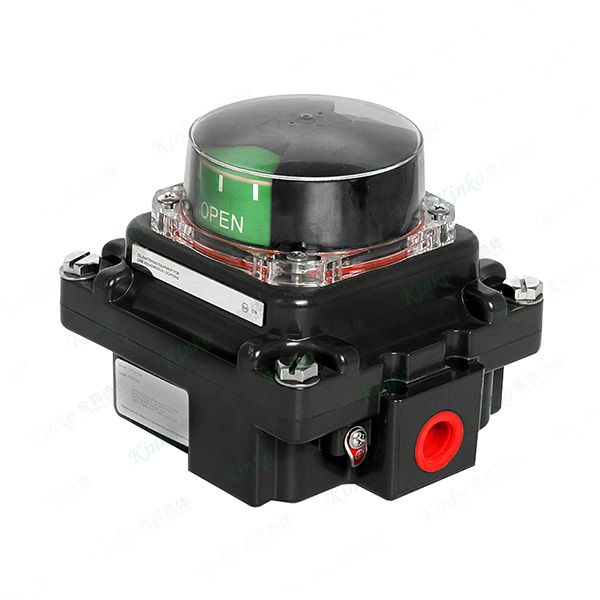

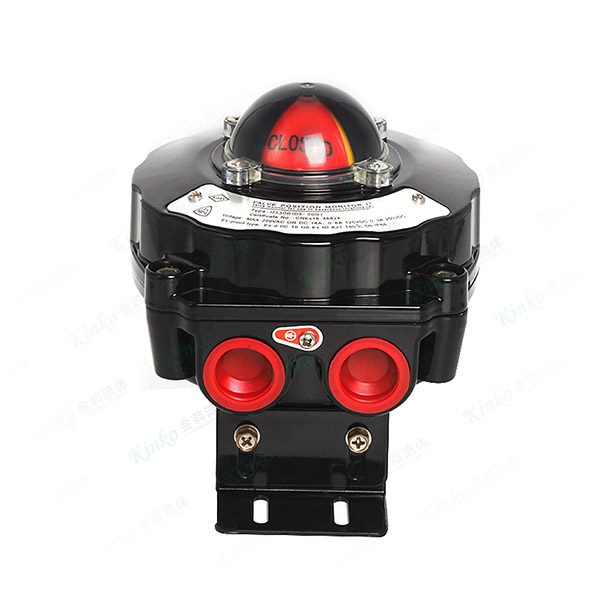

3. Limit Switches

Function: Provides end-position feedback (fully open / fully closed) to the control system. Confirms the valve has reached its commanded state.

Uses:

• Interlock logic with pumps and downstream equipment

• Alarm annunciation for valve failure to reach position

• Maintenance lockout verification

• SIL-rated safety loops (dual switches for redundancy)



4. FRL Units (Filter, Regulator, Lubricator)

Function: Cleans, regulates pressure, and optionally lubricates the instrument air supply before it enters the positioner and actuator.

Uses:

• Upstream of every pneumatic valve assembly

• Protects positioner I/P converters from dirt, moisture, and oil

• Extends actuator seal and O-ring life

5. Manual Override (Handwheel / Gearbox)

Function: Allows operators to stroke the valve manually during instrument air failure, power outage, or commissioning.

Uses:

• Emergency operation when automation signals are lost

• Initial setup and stroke testing before automation is connected

• Maintenance and isolation procedures

6. Visual Position Indicators

Function: Provides a local visual indication of valve position—typically a red/green dome or flag visible from a distance.

Uses:

• Field operator verification without accessing the control room

• Quick visual safety checks during walkthroughs

• Backup to electrical limit switch feedback

7. Boosters / Volume Boosters

Function: Amplifies the control signal pressure to provide high-flow air to the actuator for faster stroking times.

Uses:

• Large actuators with high stroke volume

• Fast-response safety valves

• Applications requiring rapid closure or opening

8. Locking Devices

Function: Mechanically locks the valve in a specific position (usually fully open or fully closed) to prevent unauthorized or accidental operation.

Uses:

• Maintenance lockout/tagout (LOTO) procedures

• Isolation valves that must remain fixed during process shutdowns

• Anti-tamper requirements in critical circuits

9. Transducers (I/P Converters)

Function: Converts an electrical current signal (e.g., 4–20 mA) into a proportional pneumatic pressure signal to drive the actuator.

Uses:

• Older or standalone systems without integrated positioners

• Remote pressure control applications

• Economical alternative to full positioners for simple loops

10. Quick Exhaust Valves

Function: Rapidly vents actuator air to atmosphere, enabling fast valve stroking—especially for spring-return fail-safe actions.

Uses:

• Emergency shutdown valves requiring rapid closure

• High-cycle on/off applications

• Actuators with large spring volumes

Complete Accessory Set Summary Table

How to Select the Right Accessory Package

The specific accessories required depend on your application:
