What Is a Valve Limit Switch Box & How Does It Work?

Publish Time: Author: Site Editor Visit: 4

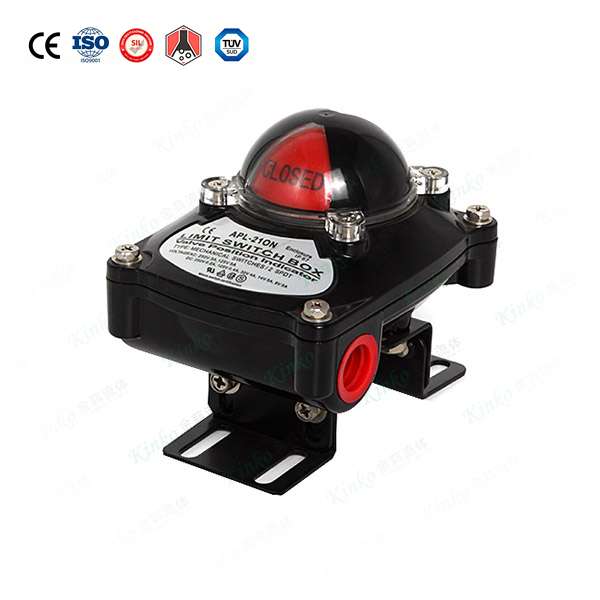

1. What Is a Valve Limit Switch Box?

A limit switch box (also called a valve position monitor or signal box) is a device mounted on top of a pneumatic or electric actuator. Its job is to:

  • Sense the valve disc position (open or closed)

  • Transmit an electrical signal back to a PLC, DCS, or control panel

  • Provide local visual indication (open/closed via dome or flags)

Feature Purpose
Visual indicator Red = open, Green = closed (or vice versa)
Electrical feedback Dry contact or proximity sensor output
Weatherproof enclosure IP67 for outdoor/washdown environments
Adjustable cams Allows fine-tuning of switch activation points

2. How Does It Work? (4-Step Operation)

Step Action
1 Actuator rotates the valve stem (90° stroke)
2 Actuator shaft drives the limit switch box cam shaft (direct coupling)
3 Cam rotates and physically depresses a mechanical switch (or triggers a proximity sensor)
4 Switch closes or opens an electrical circuit, sending a signal to the PLC

Simple analogy: Like the door switch on a refrigerator – when the door closes (valve closed), the light turns off (PLC sees signal).


3. Types of Limit Switch Boxes (By Sensor Technology)

Type Sensor Output Best For Cost
Mechanical Physical microswitch Dry contact (NO/NC) Most industrial applications Low
Inductive proximity Non-contact inductive PNP or NPN (3-wire) High cycle life, dirty environments Medium
Reed switch Magnetic Dry contact Explosive atmospheres (intrinsically safe) Medium
Solid state Hall effect PNP/NPN or 4-20mA High precision, fast response High

KINKO recommendation: Mechanical switches for 90% of applications. Proximity sensors for >500,000 cycle/year duty.


4. Electrical Output Types Explained

Output Type Signal Wiring PLC Compatibility
Dry contact (SPDT) Open or closed circuit 2 wires per switch Any (voltage-free)
PNP (sourcing) +24V when active 3 wires (brown, blue, black) Siemens, Allen Bradley, Omron
NPN (sinking) 0V when active 3 wires (brown, blue, black) Japanese PLCs (Mitsubishi, Keyence)
4-20mA Continuous position feedback 2 or 4 wires Analog input modules

Critical: Match output type to your PLC input card. PNP and NPN are NOT interchangeable.


5. Wiring Diagram (Mechanical Switch – Dry Contact)

Terminal block typical layout (2-switch box):

Terminal Function Wire to PLC
COM 1 Common for switch 1 Digital input common
NO 1 Normally open (closed when valve open) PLC input (open signal)
NC 1 Normally closed (opens when valve open) Optional alarm
COM 2 Common for switch 2 Digital input common
NO 2 Normally open (closed when valve closed) PLC input (closed signal)
NC 2 Normally closed (opens when valve closed) Optional alarm

Simple 2-wire per switch configuration:

Signal Connection
Valve open feedback COM 1 → PLC common; NO 1 → PLC input 1
Valve closed feedback COM 2 → PLC common; NO 2 → PLC input 2

No external power needed for dry contact switches – PLC provides low-voltage (typically 24V) across the contacts.


6. Mechanical Switch vs. Proximity Sensor Comparison

Criteria Mechanical Switch Inductive Proximity
Contact wear Yes (moving parts) No (non-contact)
Cycle life 1–5 million cycles 10+ million cycles
Response time 5–10 ms <1 ms
Vibration resistance Moderate Excellent
Cost (per switch) $5–15 $15–30
Requires power No (dry contact) Yes (10-30V DC)
Suitable for ATEX Yes (hermetically sealed) Requires intrinsic barrier



7. Setup & Calibration Procedure (3-Switch Box Example)

Step Action
1 Mount limit switch box on actuator ISO 5211 pad (4 screws)
2 Apply air/electric power to move valve to fully closed position
3 Rotate cam 1 until switch clicks. Tighten cam screw
4 Move valve to fully open position
5 Rotate cam 2 until switch clicks. Tighten cam screw
6 Cycle valve 3 times. Verify PLC receives correct signals
7 If using third switch (mid-position), set at 45° with valve half open

Typical cam arrangement:

Cam Function Activation Point
Cam 1 (bottom) Valve closed switch 0° ± 3°
Cam 2 (middle) Valve open switch 90° ± 3°
Cam 3 (top) Mid-travel / alarm Adjustable (e.g., 45°)

8. Visual Indicator (Dome / Flag Colors)

Standard color conventions (can be reversed by rotating dome 180°):

Valve Position KINKO Standard (Dome) KINKO Standard (Flag)
Closed Green Green
Open Red Red
Transitioning Yellow (if equipped) Yellow (if equipped)

Field tip: Always verify actual valve disc position before trusting indicator – cams can slip.


9. Selection Guide: Which Limit Switch Box Do You Need?

Question Answer → Recommendation
Budget sensitive? Yes → Mechanical switch, plastic enclosure
Outdoor or wet area? Yes → IP67 or IP68, stainless steel or coated aluminum
Explosive atmosphere (Zone 1/2)? Yes → ATEX certified, intrinsically safe
High cycle duty (>500k/year)? Yes → Inductive proximity sensors
Need continuous position feedback? Yes → 4-20mA position transmitter (not just open/close)
Food/pharma washdown? Yes → Stainless steel enclosure, sealed connectors

10. KINKO Limit Switch Box Specifications

Parameter KINKO Standard Box KINKO Premium Box
Enclosure material Aluminum (coated) or PA66 (plastic) Stainless steel 316
Enclosure rating IP67 IP68 (submersible) / IP69K (washdown)
Switches 2x SPDT mechanical (5A/250VAC) 2x proximity PNP or NPN
Visual indicator Dome type (red/green) Dome or flag type
Cable entries 2x PG13.5 or M20x1.5 2x M20 + brass glands
Temperature range -25°C to +80°C -40°C to +120°C
ATEX option No Yes (Ex db IIC T6)
Mounting standard VDI/VDE 3845 (NAMUR) VDI/VDE 3845

11. Troubleshooting Table

Problem Likely Cause Solution
No signal at PLC Wiring loose or wrong terminals Check continuity with multimeter
Signal stuck ON Cam screw loose; cam rotated Re-calibrate cams
Intermittent signal Mechanical switch failing Replace microswitch
Indicator shows open, valve closed Cams misaligned after actuator service Re-calibrate limit switch box
No visual color change Dome not engaged with cam shaft Reinstall dome, align slot
Proximity sensor always ON Wrong sensing target type (metal required) Use mechanical switch or ferrous target

12. When to Add a Limit Switch Box

Actuation Type Limit Switch Box Reason
Manual handwheel Not needed (visual only) No remote feedback required
Pneumatic actuator Strongly recommended Remote indication only way to confirm position
Electric actuator (on-off) Built-in (most models) Check if auxiliary limits are included
Electric actuator (modulating) Feedback from positioner Modulating actuators already send 4-20mA position signal

Note: Some electric actuators have built-in limit switches. Add an external box only if you need additional contacts or visual indicator.


KINKO Limit Switch Box Offerings

Model Type Enclosure Sensors Best For
KLS-100 Economy PA66 plastic 2x mechanical Indoor, dry area
KLS-200 Standard Coated aluminum 2x mechanical General industrial
KLS-300 Premium Coated aluminum 2x proximity (PNP/NPN) High cycle duty
KLS-400 Marine/ATEX SS316 2x mechanical (ATEX) Offshore, Zone 1/2
KLS-500 Washdown SS316 2x proximity (IP69K) Food, pharma

Need a limit switch box for your KINKO actuated valve? Specify actuator type, environment, and PLC input type – we pre-configure and test before shipping.
