Is an Angle Seat Valve with Pneumatic Actuator Good for Fast Cycling?

Publish Time: 08/12 2026 Author: Site Editor Visit: 14

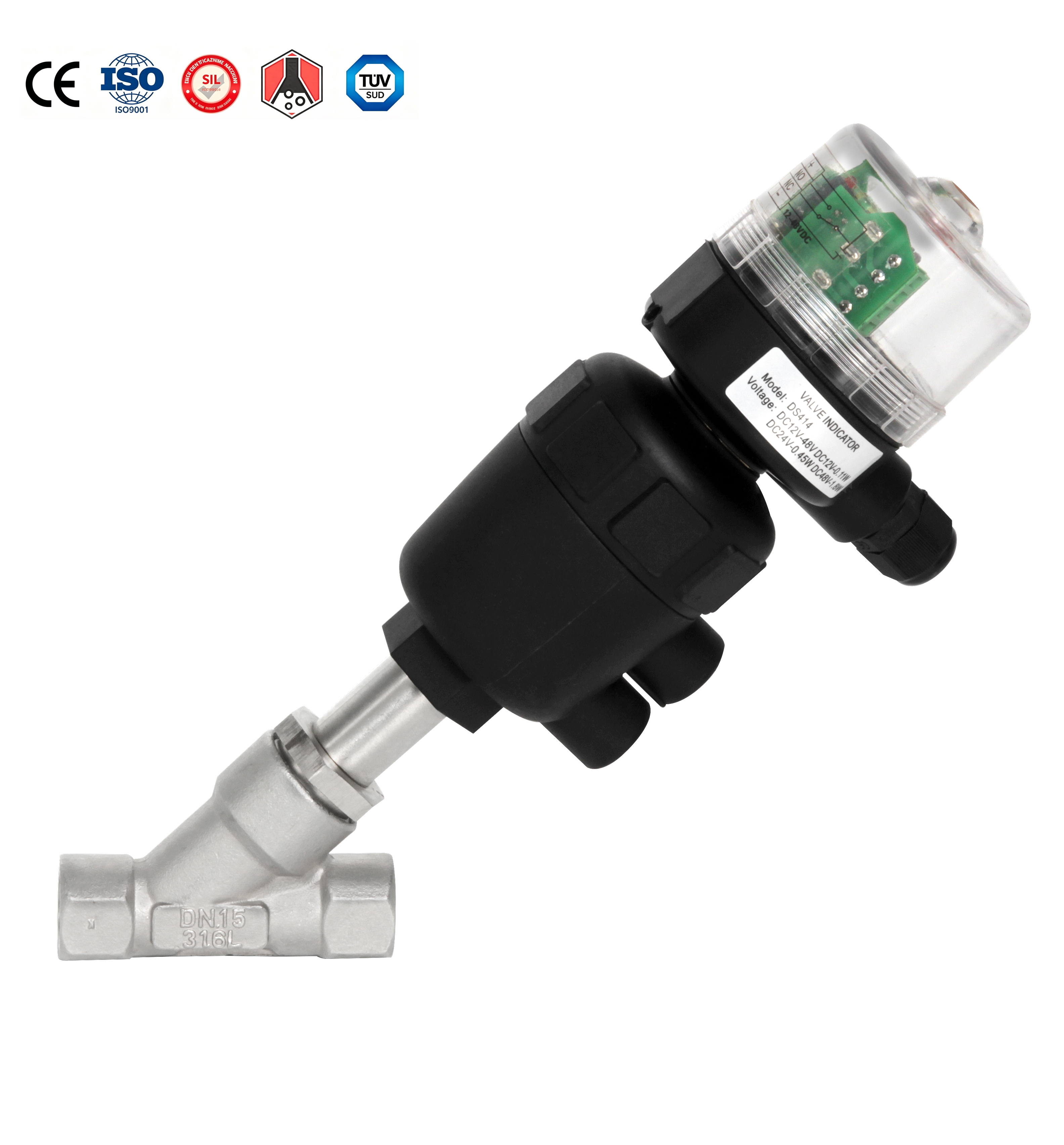

What Is an Angle Seat Valve?

An angle seat valve is a type of shut-off or control valve with a body design that changes flow direction by 90°. The sealing element—a piston or disc—moves linearly against an angled seat, creating a tight seal with minimal turbulence.

Key design features:

Straight-through or angled body
Spring-loaded stem
Piston-style actuator (normally open or normally closed)
Self-adjusting packing gland
Available in stainless steel, brass, or PTFE-lined versions

Why Pneumatic Angle Seat Valves Excel in Fast Cycling

Pneumatically actuated angle seat valves are particularly well-suited for fast cycling because of several inherent design advantages:

Advantage	Why It Matters for Fast Cycling
Short stroke	Linear travel is typically short (10–25mm), reducing cycle time
Low moving mass	Lightweight stem and disc allow rapid acceleration and deceleration
High actuation force	Pneumatic piston provides consistent, strong closing force against pressure
Self-cleaning shear action	The disc cuts through media, preventing buildup that can stick other valve types
No rotating stem seals	Linear movement reduces seal wear compared to quarter-turn valves
Simple construction	Fewer parts means less to wear or fail

Typical Cycle Times for Pneumatic Angle Seat Valves

Valve Size	Actuator Bore	Cycle Time (Open → Close)
DN15 – DN25	40mm piston	0.3 – 0.8 seconds
DN32 – DN50	63mm piston	0.5 – 1.2 seconds
DN65 – DN80	80mm piston	0.8 – 1.8 seconds

With proper solenoid valve and quick-exhaust fittings, cycle times can be reduced to under 0.5 seconds for small sizes—comparable to or faster than many ball valves.

Fast Cycling Performance Factors

Even with good design, actual cycle life depends on several variables:

Factor	Impact
Media temperature	Higher temperatures soften seals and reduce life
Differential pressure	Higher pressure increases closing force and wear
Cycle frequency	Above 10–20 cycles per minute, heat buildup accelerates seal degradation
Media type	Abrasive or crystallizing media erodes the seat faster
Actuator size	Oversized actuators cause higher impact velocity and seat wear
Solenoid valve response	Faster solenoid valves reduce total cycle time and improve repeatability

Angle Seat vs. Ball Valve for Fast Cycling

Feature	Angle Seat Valve (Pneumatic)	Ball Valve (Pneumatic / Electric)
Cycle time	Very fast (0.3–2 sec)	Moderate (1–5 sec)
Stroke type	Linear (short)	Quarter-turn (90°)
Moving mass	Light	Heavier (ball + stem)
Seat wear in fast cycling	Moderate (self-compensating)	Higher (ball rubbing against seats)
Sealing at high temp	Good (PTFE/PEEK options)	Good but seat wear accelerates
Resistance to particulates	Good (shear action)	Moderate (can trap particles)
Maintenance frequency	Low–moderate	Moderate–high in fast cycling
Typical cycle life	1–5 million cycles	0.5–2 million cycles (fast cycling)

For applications exceeding 10 cycles per minute, angle seat valves generally outperform ball valves in terms of seal longevity.

When Does Angle Seat Valve Performance Degrade?

Even robust angle seat valves have limits. Common failure modes in fast cycling include:

Seat wear – repeated impact gradually deforms or erodes the sealing face
Stem seal leakage – high-speed stroking wears packing or O-rings
Actuator overheating – excessive duty cycle can overheat solenoid coils or pilot valves
Spring fatigue – return spring tension weakens over millions of cycles
Water hammer – rapid closure against high velocity can damage piping and seat

To mitigate these, specify higher-grade seat materials (e.g., PEEK or reinforced PTFE), use speed-control fittings, and select actuators with appropriate cycle-rated solenoids.

Application Examples – Where Fast Cycling Is Critical

Pneumatic angle seat valves are widely used in fast cycling processes:

Filling and dosing machines – bottle filling, ink dosing, chemical batching
Sterilisation (SIP/CIP) – steam and rinse valve sequencing
Air and gas sampling – rapid stream switching for analyzers
Packaging – pouch filling, tube sealing, bagging machines
Textile dyeing – rapid liquor transfer in jet dyeing machines
Brewing and beverage – can/bottle filling lines
Pharmaceutical vials – high-speed filling under aseptic conditions

Pneumatic Actuator Configuration for Fast Cycling

For optimal fast cycling performance, choose the following actuator and accessory configuration:

Component	Recommendation
Actuator type	Double-acting (faster return) or spring-return with high spring force
Solenoid valve	3/2-way, high-flow (Cv ≥ 0.8), low-power, fast response (<20ms)
Quick-exhaust fitting	Mounted directly on actuator port to reduce exhaust time
Speed controls	Adjustable to tune opening/closing speed to prevent water hammer
Supply pressure	5–6 bar (stable, filtered, lubricated if required)
Duty cycle	Keep below 70% to allow coil cooling

Using a 5/2-way solenoid with quick-exhaust can reduce cycle time by up to 40% compared to standard 3/2-way configurations.

Cycle Life Expectations

With proper selection and maintenance, pneumatic angle seat valves offer impressive cycle life:

Seat Material	Expected Cycles (Fast Cycling)	Typical Service Life
PTFE	1–2 million	1–3 years
Reinforced PTFE	2–4 million	3–5 years
PEEK	3–5 million	5–8 years
Stainless steel (metal seat)	1–3 million (with higher leakage)	3–5 years

Note: These are estimates—actual life depends on pressure, temperature, and media abrasiveness.

Common Issues and Solutions in Fast Cycling

Issue	Cause	Solution
Seat leakage	Wear or debris on sealing face	Inspect regularly; use filtered media
Slow stroking	Low air pressure or undersized solenoid	Increase pressure; upgrade solenoid valve
Solenoid coil burn-out	Excessive cycling without cooling period	Use duty-cycle-rated coil; add heat sink
Stem sticking	Media residue or packing too tight	Use self-adjusting packing; clean media
Water hammer noise	Excessive closing speed	Install speed control fitting to cushion closure

How to Extend Angle Seat Valve Life in Fast Cycling

Size the actuator correctly – not too large (excessive impact) or too small (slow/incomplete stroke)
Use soft-start or cushioning – reduce mechanical shock at end positions
Install filter-regulator-lubricator – clean, dry air reduces actuator wear
Monitor cycle count – schedule seat replacement before failure
Select higher-grade seals – PEEK or reinforced PTFE for demanding service
Optimise supply pressure – just enough for reliable stroking, not excessive
Use solenoid valves with manual override – for commissioning and troubleshooting

Electric vs. Pneumatic for Fast Cycling – Quick Comparison

Feature	Pneumatic Angle Seat	Electric Actuator (KK Series)
Cycle time	0.3–2 sec	5–30 sec
Fast cycling suitability	Excellent	Limited (for quarter-turn, slower)
Energy source	Compressed air	Electricity
Maintenance	Moderate (air prep, seals)	Low
Control	Solenoid ON/OFF	Digital or analog modulating
Best use	High-speed On/Off	Modulating or slower cyclic duty

For fast cycling (≥10 cycles/min), pneumatic angle seat valves are the clear winner. Electric actuators are better suited for precise modulation or lower-frequency operation.

Frequently Asked Questions

Q1: What is the maximum cycle rate for a pneumatic angle seat valve?
Small sizes (DN15–DN25) can achieve up to 60–100 cycles per minute with optimized solenoids and air supply.

Q2: Can angle seat valves handle steam in fast cycling?
Yes – stainless steel bodies with PTFE/PEEK seats are widely used for steam sterilization (SIP) applications, though cycle life may reduce at high temperatures.

Q3: Do I need lubricated air for the actuator?
Most pneumatic actuators are designed for lubricated or non-lubricated air. Check manufacturer specification. For fast cycling, a small amount of lubricant can extend seal life.

Q4: How do I know when the seat needs replacement?
Monitor leakage rate, cycle time increase, or audible blow-by. Seat life can also be estimated based on cycle count.

Q5: Is a solenoid valve with manual override necessary?
Highly recommended – it allows manual stroking during installation and troubleshooting without electrical signals.

Q6: Are angle seat valves suitable for cleanroom/food applications?
Yes – with electropolished stainless steel bodies, sanitary connections (clamp or weld), and FDA-compliant seals.
