Product Attributes
Brand Name: KINKO
Model Number: KK-05
Power Source: DC24V/AC110V/AC220V
Output Torque: 50NM
Action Time(s): 20s
Scope Of Rotary Angle(°): 0-90°
Motor Power(w): 13w/10w/10w
Rated Current(A): 1.28A/0.24A/0.18A
Machine Weight(KG): 2.2kg
Insulation Resistance Rating: DC24V:500VAC;AC110V/220V:1500VAC(1minute)
Protection Level: IP66
Installation Position: rotary degree 360°
Place Of Origin: Zhejiang, China
Packaging & Delivery
| Selling Units | : | piece |
| Package Type | : | Packaging Details Shrink film+Polyfoam+Carton/Plywood Case/Customer Requirements |
| Picture Example | : |  |

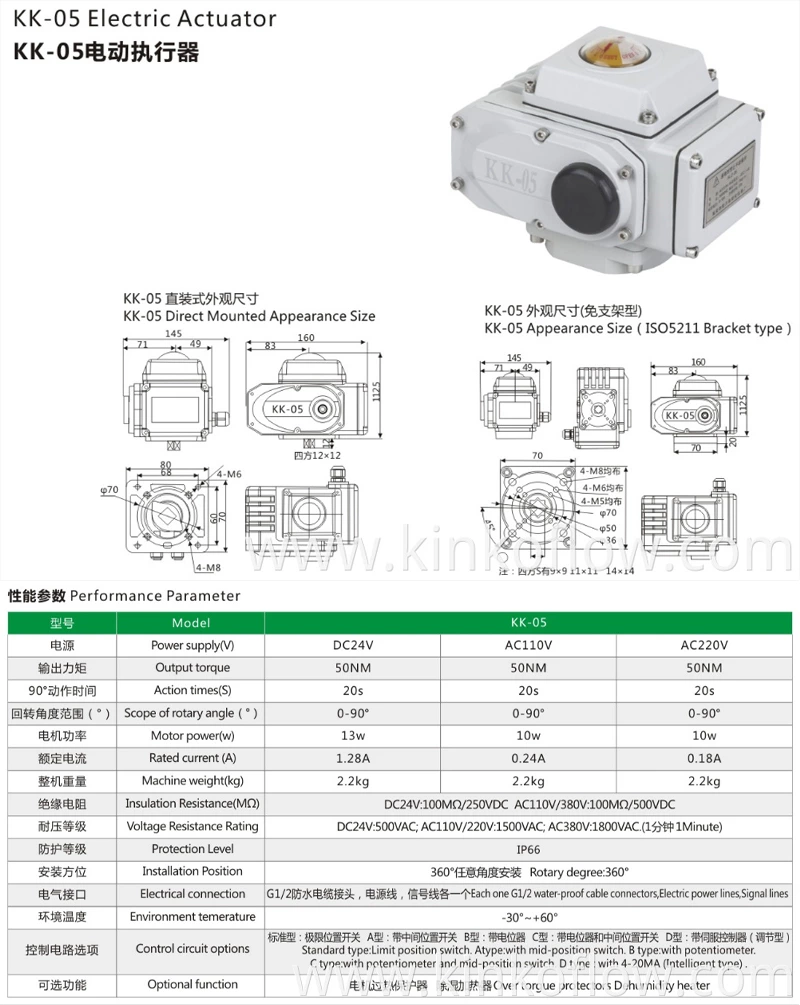

Product Description
| Product Name | KK-05 Electric Actuator |
| power supply | DC24V/AC110V/AC220V |
| output torque | 50NM |
| action times(S) | 20s |
| scope of rotary angle(°) | 0-90° |
| motor power(W) | 13w/10w/10w |
| rated current(A) | 1.28A/0.24A/0.18A |
| machine weight | 2.2KG |
| insulation resistance(MΩ) | DC24V:100MΩ/250VDC AC110V/380V:100MΩ/500VDC |
| voltage resistance rating | DC24:500VAC;AC110V/220V:1500VAC;AC380V/1800VAC(1 MINUTE) |
| protection level | IP66 |
| installation position | rotary degree360 |
| electrical connection | G1/2 water-proof cable connectors,electric power lines,signal lines |
| environment temperature | -30°~+60° |
| control circuit options | standard type:limit position switch; A type:with mid-position switch;B type:with potentiometer;C type:with potentiometer and mid-position switch;D type:with 4-20MA(intelligent type) |
| optional function | dehumidification heater/over torgue protectors |
Details Images
Related Products
Recommended by seller
Packing&Shipping
Packaging Details Shrink film+Polyfoam+Carton/Plywood Case/Customer Requirements Port Shanghai/Ningbo/Express/Customer Requirements
Company Introduction
Our Services & Strength
We do for the user “consulting, design, selection, installation”, to solve all kinds of control trouble, adhering to the "quality first, customer first" corporate philosophy, We adhere to the 24-hour rule, all hot lines start up 24 hours, all inquiries 24 hours reply, product production cycle within 24 hours to confirm, any product quality problems we provide solutions within 24 hours......
FAQ
1.Is sample order acceptable ? Of course ,we accept . 2.How to place the order ? You can send us email or inquiry on Alibaba directly . 3.How many days for delivery ? For standrd products , we can send out 7 days after payment . 4 .How do make the payment ? We accept Bank T/T ,L/C. 5.How will make the shippment ? A.By Sea Shippment ,By Air ,Express Service We have strict requirements on quality and are committed to giving customers the best service experience. We also offer an 18-month warranty, lifetime after-sales service and technical support.
