Why Angle Seat Valves Are Widely Used in Packaging Machines？
Introduction
In packaging machines — especially filling, capping, and liquid packaging lines — speed, hygiene, and cycle life are everything.
One component that repeatedly proves itself is the angle seat valve.
At Kinko, we have supplied thousands of angle seat valves to packaging equipment manufacturers worldwide. This article explains why angle seat valves dominate packaging applications, backed by technical parameters and real working conditions.
1. What Is an Angle Seat Valve？

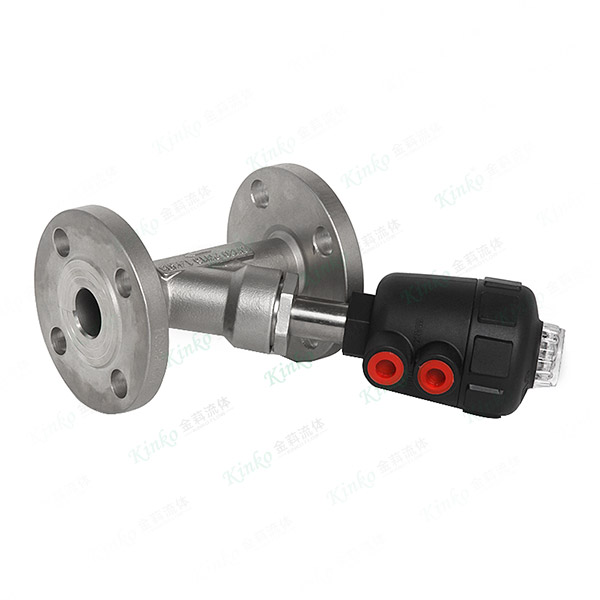

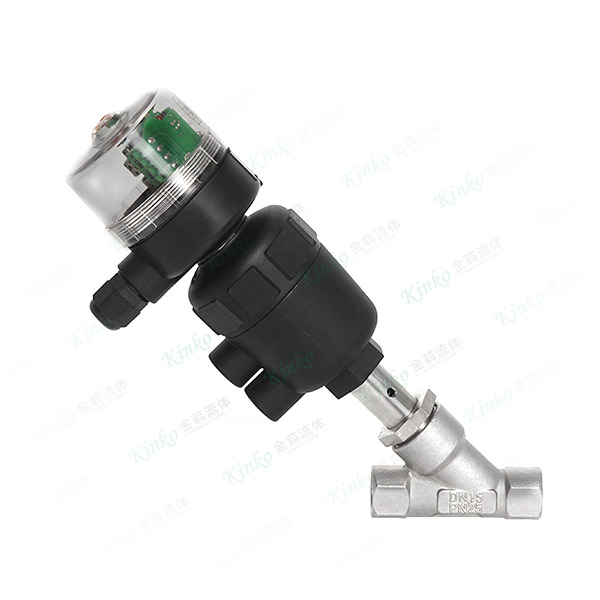

An angle seat valve is a pneumatically actuated valve with a y‑pattern body (usually 15°–45° angle between inlet and outlet).
This design creates:
-
lower flow resistance
-
faster switching
-
better self‑draining capability
Unlike ball valves or butterfly valves, angle seat valves are built for high cycle life and aggressive media.
2. Why Packaging Machines Prefer Angle Seat Valves
| Requirement in Packaging Machine | Why Angle Seat Valve Fits |
|---|---|
| High cycle frequency (up to 5–10 cycles/sec) | Patented piston design, long‑life spring return |
| Low pressure drop | Y‑body provides straight‑through flow path |
| Cleanability / CIP compatibility | Self‑draining, no dead zones |
| Compact mounting | Short face‑to‑face dimension |
| Media diversity (water, detergent, light oil, food liquid) | Choice of seals (PTFE, FKM, EPDM, NBR) |
| Simple automation | Direct mounting for solenoid coils and sensors |
3. Key Technical Parameters (Kinko Angle Seat Valve Series)
Below is a typical specification table for Kinko angle seat valves used in packaging machines.
| Parameter | Value / Range |
|---|---|
| Valve size range | DN10 – DN65 (3/8″ to 2‑1/2″) |
| Body material | SS304, SS316L (CF8/CF8M) |
| Seal material | PTFE (standard), FKM, EPDM, NBR on request |
| Actuation | Pneumatic (single acting, spring return) |
| Pilot port | G1/8″, G1/4″ |
| Operating pressure | 0 – 16 bar (0 – 232 psi) |
| Control pressure (air) | 4 – 8 bar (60 – 120 psi) |
| Max. medium temperature | -10°C to +180°C (PTFE seal) |
| Ambient temperature | -10°C to +60°C |
| Flow direction | Above seat or below seat (field configurable) |
| Cycle life | ≥ 2 million cycles (factory tested) |
Note: Kinko can customize thread types (BSPP, BSPT, NPT) and special seals for aggressive media.
4. Real Packaging Machine Applications
| Packaging Machine Type | Typical Media | Why Angle Seat Valve Is Chosen |
|---|---|---|
| Liquid filling machine | Water, juice, shampoo, detergent | Fast open/close, drip‑free sealing |
| Paste / sauce filler | Tomato sauce, cream, honey | Large flow path, no clogging |
| CIP (clean‑in‑place) system | Hot water, acid, alkali | High temp resistance, self‑draining |
| Small bottle filler | Edible oil, chemicals | Compact installation, low maintenance |
| Aerosol / propellant filler | Solvent, gas | Leak‑tight, high cycle reliability |
5. Angle Seat Valve vs Other Valves in Packaging
| Feature | Angle Seat Valve | Ball Valve | Butterfly Valve |
|---|---|---|---|
| Cycle life (million cycles) | 2–5 | 0.2–0.5 | 0.1–0.3 |
| Flow efficiency (Cv) | Very high | High | Medium |
| Self‑draining | Yes | No | No |
| Compact length | Yes | Medium | Yes |
| Suitable for fast stroking | Yes | No | No |
| Price / performance | Best | Medium | Low |
For high‑frequency, media‑flexible, hygienic applications, angle seat valves are the clear winner.
6. Why Kinko Angle Seat Valves？
Kinko angle seat valves are specifically designed for OEM packaging machine builders.
Advantages you get from Kinko:
-
Direct factory supply — no middleman cost
-
Full material traceability (SS304 / SS316L)
-
Thread options: BSPP, BSPT, NPT (customizable)
-
Coil voltage: DC24V, AC110V, AC220V (on‑off or 4‑20mA position feedback available)
-
Short lead time for standard sizes
-
OEM / ODM service — valve marking, packaging, actuator color
7. Summary – Final Takeaway
If you are building or maintaining a packaging machine that requires:
✅ high cycle frequency
✅ low pressure drop
✅ easy cleaning
✅ long service life
✅ compact pneumatics integration
then angle seat valves are the right choice.
For packaging lines that run 24/7, choosing the right valve directly affects uptime, product quality, and maintenance cost.
8. Need the Right Angle Seat Valve for Your Packaging Machine？
Kinko offers standard and custom angle seat valves for global packaging machine manufacturers.
Contact Kinko for:
-
size / seal / thread recommendation
-
sample testing
-
OEM quotation
