How to Troubleshoot a Faulty Pneumatic Actuator? A Complete B2B Guide for Industrial Valve Automation
Publish Time: Author: Site Editor Visit: 1

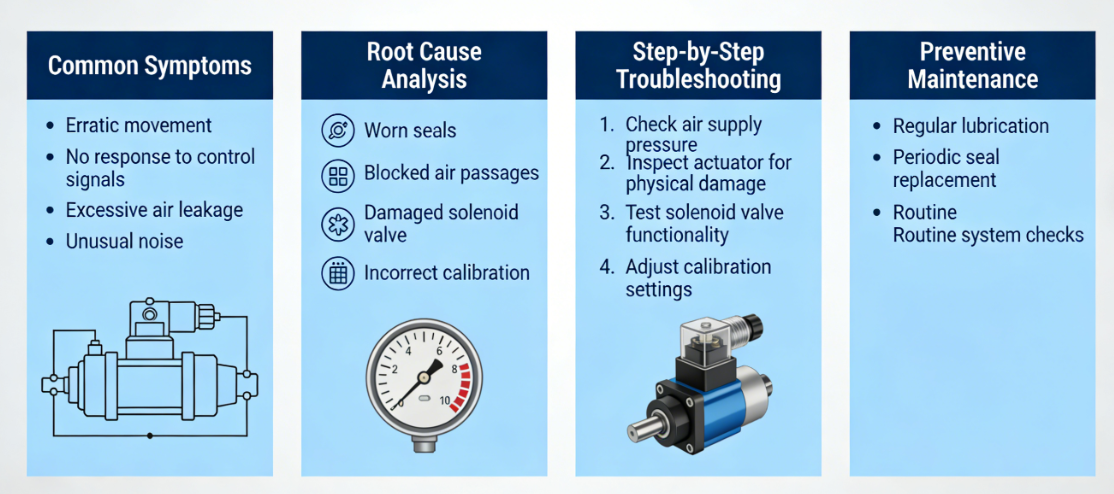

Quick Diagnosis Table
| Symptom | Most Likely Cause | First Action |
|---|---|---|
| No movement | No air supply / stuck solenoid | Check pressure (4–8 bar) / test solenoid |
| Slow operation | Low pressure / clogged filter | Clean FRL unit / check seals |
| Stops mid-stroke | Torque mismatch / mechanical bind | Verify valve torque / lubricate linkage |
| Erratic cycling | Positioner failure / bad signal | Recalibrate / check 4–20mA signal |
| Air leakage | Worn seals / loose bolts | Tighten bolts / replace seal kit |
| Spring return fails | Broken spring | Disassemble spring chamber / replace spring |
| Excessive noise | Lack of lubrication | Apply air tool oil |
Step-by-Step Troubleshooting
1. Actuator Does Not Move
-
Verify air pressure (60–120 psi)
-
Check solenoid valve voltage
-
Test manual override
-
Disconnect from valve to isolate issue
2. Actuator Moves Too Slowly
-
Clean or replace air filter
-
Check for kinked hoses
-
Replace worn piston seals
3. Air Leakage
-
Apply soapy water to find leaks
-
Tighten housing bolts
-
Replace seal kit if leaks persist
4. Spring Return Fails
-
Disconnect air supply – should return immediately
-
If not, spring is likely broken
-
Replace spring and clean chamber
-
Preventive Maintenance Checklist
| Task | Frequency |
|---|---|
| Check air pressure | Daily |
| Drain FRL unit | Weekly |
| Lubricate actuator | Monthly |
| Inspect seals | Quarterly |
| Replace seal kit | Every 2–3 years |
| Recalibrate positioner | Annually |
Replace vs. Repair
| Condition | Action |
|---|---|
| Worn seals | Repair |
| Broken spring | Repair |
| Scored cylinder bore | Replace |
| Cracked housing | Replace |
| Undersized actuator | Replace |
Need Technical Support?
We supply pneumatic actuators for ball valves, butterfly valves, and gate valves:
| Series | Torque | Mounting |
|---|---|---|

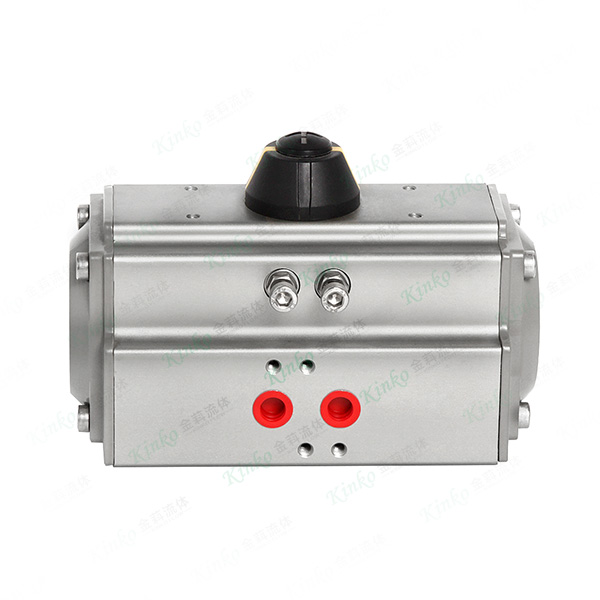

| AT Series (rack & pinion) | 5–4000 Nm | ISO 5211 |
| Scotch Yoke | 500–250,000 Nm | ISO 5211 / Custom |
Contact us for troubleshooting help or replacement quotes.
