How to Fix a Stuck or Leaking Butterfly Valve
Introduction: Downtime Costs Money

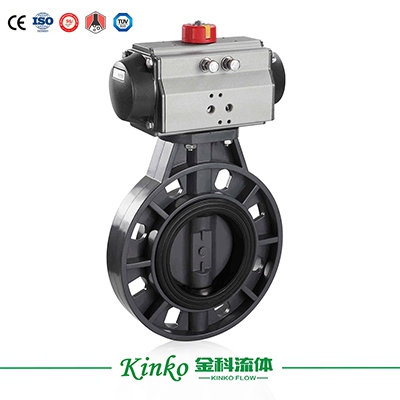

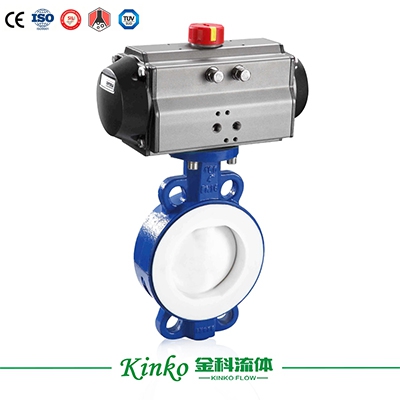

A stuck or leaking butterfly valve stops production. Most failures can be repaired on-site in under an hour. This guide covers systematic diagnosis and repair for wafer and lug butterfly valves with pneumatic (Kinko AT/AW) or electric actuators.
Part 1: Safety First
Before any repair:
-
Isolate and depressurize the line completely.
-
Lock out the actuator power source:
-
Pneumatic (Kinko AT/AW): Shut off compressed air, bleed residual pressure.
-
Electric: Lock out circuit breaker.
-
-
Verify zero pressure downstream.
-
Wear PPE (gloves, safety glasses, face shield if chemical media).
Part 2: Quick Diagnosis
| Symptom | Most Likely Cause | Fix Time |
|---|---|---|
| Will not turn at all | Debris wedged, actuator failure, stem corrosion | 30-60 min |
| Turns but stiff | Seat swelling, under-sized actuator | 15-30 min |
| Leaks through closed valve | Worn seat, debris on seat | 30-60 min |
| Leaks from stem | Worn O-rings or packing | 15-30 min |
Part 3: Fixing a Stuck Valve
Step 1: Isolate the Problem
Disconnect the actuator from the valve.
-
Actuator cycles freely → Valve is stuck.
-
Actuator also will not cycle → Actuator is faulty.
Step 2: Actuator Troubleshooting
Kinko AT or AW pneumatic actuator will not stroke:
| Check | Fix |
|---|---|
| Air pressure (needs 4-8 bar / 60-120 PSI) | Increase supply pressure |
| Solenoid valve operation | Replace coil or clean valve |
| Blocked air lines | Clear debris or ice |
| Internal seal failure (air leaks from housing) | Replace seal kit (AT series field-serviceable; AW series factory service) |
Kinko electric actuator will not turn:
| Check | Fix |
|---|---|
| Power supply voltage | Correct 24V DC, 110V AC, or 220V AC |
| Thermal overload tripped | Allow 30 min cool down |
| Manual override works but motor does not | Replace motor or gears |
Step 3: Valve Body Stuck (Actuator Removed)
Attempt to turn the stem with a wrench.
-
Won't turn at all: Debris wedged (back-flush line) or seat swelling (replace seat with compatible material).
-
Turns but very stiff: Seat compression set (cycle valve several times) or stem corrosion (disassemble, clean, lubricate).
Step 4: Manual Breaking Method
-
Apply penetrating lubricant around disc edge.
-
Wait 15 minutes.
-
Apply steady force with a wrench. Do not hammer.
-
Once free, cycle fully open and closed several times.
Part 4: Fixing a Leaking Valve
Seat Leak (Leaks Through Closed Disc)
| Cause | Fix |
|---|---|
| Debris on seat | Open/close valve 5-10 times to purge |
| Worn or torn seat | Replace seat (Kinko seat kit required) |
| Disc edge damage | Replace disc or entire valve |
| Actuator over-torqued (crushed seat) | Replace seat; re-set limit switches |
Quick seat replacement steps (Kinko wafer valve):
-
Remove valve from line.
-
Remove stem retaining pin.
-
Push out stem and remove disc.
-
Pry out old seat, install new seat.
-
Reinstall disc, stem, and retaining pin.
-
Reinstall valve between flanges.
Stem Leak (Leaks from Top or Bottom)
Fix:
-
Remove actuator.
-
Remove stem retaining clip.
-
Replace O-rings or packing using Kinko stem seal kit.
-
Reassemble.
Part 5: Repair vs. Replace
| Condition | Action |
|---|---|
| Worn seat or stem seals | Repair (kit is low cost) |
| Stuck once due to debris | Repair (cycle to clear) |
| Corroded or pitted disc edge | Replace valve |
| Cracked body | Replace valve |
| Valve under 4” (DN100) | Often cheaper to replace |
| Valve 6” and larger | Repair (cost-effective) |
Kinko recommendation: Stock seat kits for valves 2”-8”. For valves 10” and larger, keep a spare valve to minimize downtime.
Part 6: Preventive Maintenance
| Interval | Action |
|---|---|
| Monthly | Cycle static valves fully open/closed |
| Quarterly | Inspect stem for leaks; check actuator bolts |
| Annually | Replace seat and stem seals on critical service valves |
For Kinko AT/AW pneumatic actuators:
-
Weekly: Drain air filters.
-
Annually (AT series): Replace piston seals after 100,000 cycles.
-
Annually (AW series): Inspect scotch yoke bushing.
Part 7: Kinko Replacement Parts Reference
| Component | Kinko Part Format |
|---|---|
| Seat – EPDM | V-SEAL-EPDM-[size] |
| Seat – PTFE | V-SEAL-PTFE-[size] |
| Stem seal kit | V-STEMKIT-[size] |
| AT series actuator seal kit | ACT-AT-SEALKIT-[model] |
| AW series actuator | Factory service only |
To order genuine Kinko replacement parts, provide valve size, model number, and seat material.
