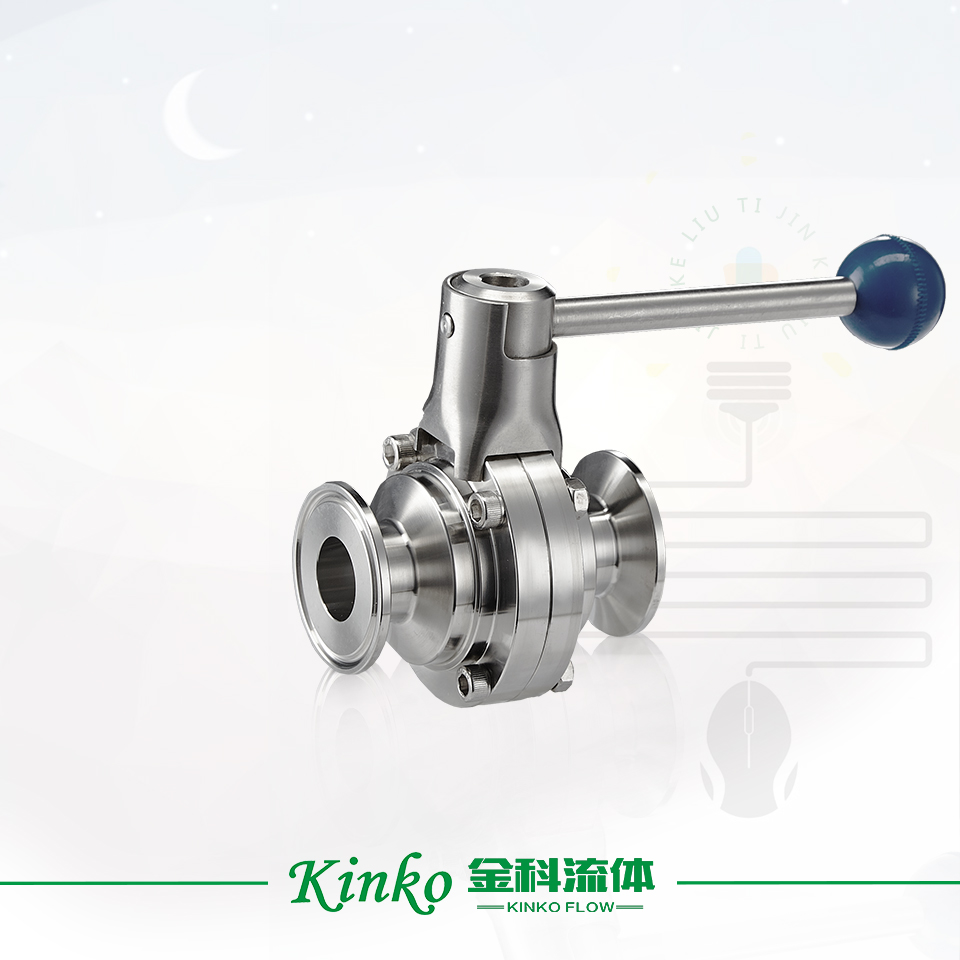

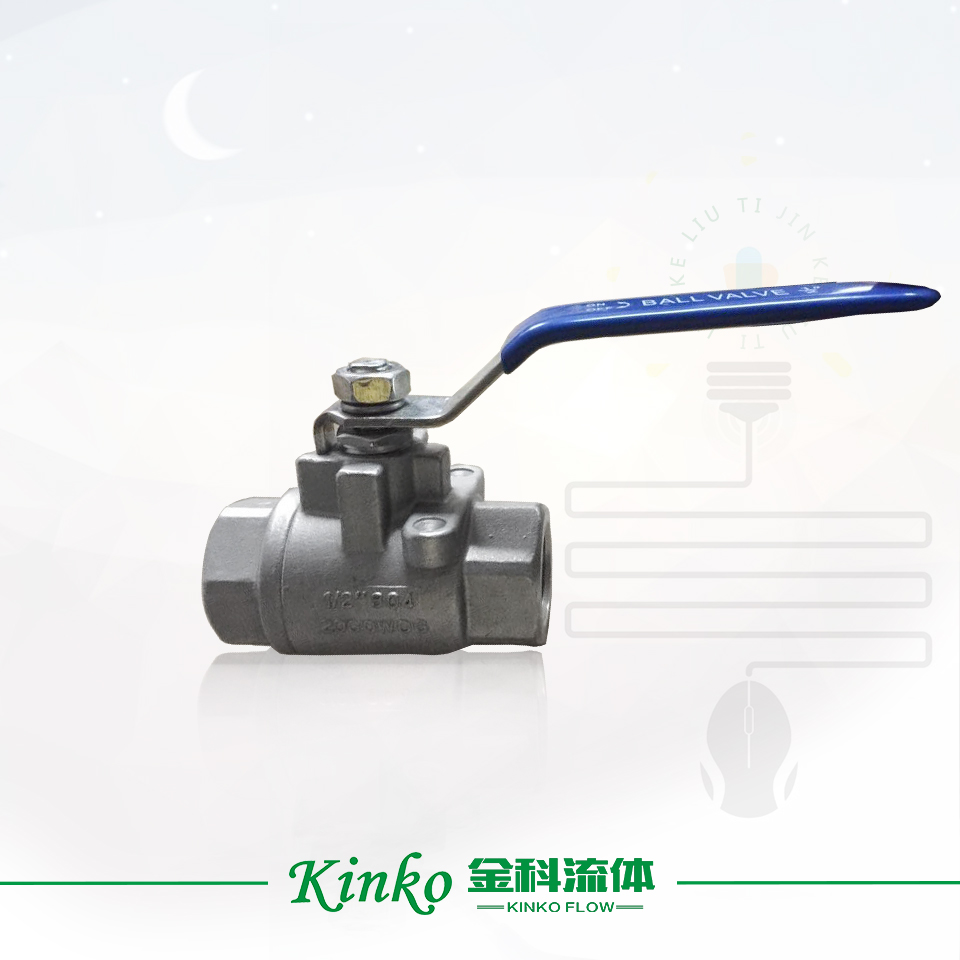

How Temperature Impacts Ball Valve Performance
Publish Time: Author: Site Editor Visit: 8
Temperature Ranges – Quick Overview
| Temperature Range | Category | Main Challenges |
|---|---|---|
| >800°F (427°C) | Extreme high | Metal seats only; thermal expansion |
| 400–800°F (204–427°C) | High | PEEK or metal seats; graphite packing |
| 0–400°F (-18–204°C) | Standard | PTFE seats (fine) |
| -50–0°F (-46–-18°C) | Low | Special lubricants; NBR/Viton hardens |
| -150–-50°F (-101–-46°C) | Cryogenic | Extended stem; low-temp body materials |
| <-150°F (-101°C) | Deep cryogenic | Stainless or special alloys only |
Temperature Limits by Component
Body Materials – Maximum Temperatures
| Body Material | Max Continuous Temp | Min Temp | Limitation |
|---|---|---|---|
| Brass | 400°F (204°C) | -20°F (-29°C) | Softens above 400°F |
| Carbon steel (A105) | 800°F (427°C) | -20°F (-29°C) | Brittle below -20°F |
| Low-temp carbon steel (A350 LF2) | 800°F (427°C) | -50°F (-46°C) | For cold service |
| 316 stainless steel | 1,200°F (649°C) | -325°F (-198°C) | Most versatile |
| Duplex (F51/F55) | 600°F (316°C) | -50°F (-46°C) | Limited low-temp |
| Hastelloy C276 | 800°F (427°C) | -325°F (-198°C) | Chemical + extreme temps |
| Titanium | 600°F (316°C) | -325°F (-198°C) | Excellent cryogenic |
Seat Materials – Full Temperature Range
| Seat Material | Min Temp | Max Temp | Best Temp Range |
|---|---|---|---|
| Virgin PTFE | -20°F (-29°C) | 400°F (204°C) | 0–350°F |
| 15% GF PTFE | -20°F (-29°C) | 450°F (232°C) | 0–400°F |
| 25% CF PTFE | -20°F (-29°C) | 500°F (260°C) | 0–450°F |
| PEEK (unfilled) | -100°F (-73°C) | 480°F (249°C) | -50–450°F |
| PEEK + carbon | -100°F (-73°C) | 480°F (249°C) | -50–450°F |
| Nylon (PA) | -20°F (-29°C) | 200°F (93°C) | 0–180°F |
| TPV (Santoprene) | -40°F (-40°C) | 275°F (135°C) | 0–250°F |
| Viton (FKM) | -15°F (-26°C) | 400°F (204°C) | 32–350°F |
| Metal (316SS) | -325°F (-198°C) | 1,200°F (649°C) | Any (but leaks more) |
| Tungsten carbide | -300°F (-184°C) | 800°F (427°C) | High wear + temp |
Stem Packing Materials
| Packing Material | Max Temp | Min Temp | Best For |
|---|---|---|---|
| PTFE (virgin) | 400°F (204°C) | -20°F (-29°C) | General service |
| PTFE + graphite | 500°F (260°C) | -20°F (-29°C) | Higher temperature |
| Graphite ribbon | 1,200°F (649°C) | -300°F (-184°C) | High temp, fire-safe |
| Flexible graphite | 850°F (454°C) | -300°F (-184°C) | Steam and high temp |
Lubricants (for stems and bearings)
| Lubricant Type | Temp Range | Application |
|---|---|---|
| Standard PTFE grease | -20°F to 300°F | General use |
| High-temp PTFE grease | 32°F to 500°F | High temperature |
| Graphite paste | -300°F to 850°F | Extreme temps |
| Moly disulfide (dry) | -300°F to 750°F | Cryogenic, high-temp |
| Silicone grease | -40°F to 400°F | Food grade (sanitary) |
| Low-temp synthetic | -75°F to 200°F | Cold climates |
High-Temperature Service (>400°F)
Challenges
| Challenge | Cause | Consequence |
|---|---|---|
| Seat creep (cold flow) | PTFE softens above 400°F | Leakage, torque increase |
| Packing extrusion | Packing loses elasticity | Stem leakage |
| Thermal expansion | Body grows, ball expands | High torque, seizing |
| Lubricant breakdown | Grease evaporates or chars | Stem and bearing wear |
Selection Guide – High Temperature
| Max Temp | Seat | Packing | Lubricant | Body Material |
|---|---|---|---|---|
| 400–450°F | GF PTFE | PTFE + graphite | High-temp PTFE grease | Carbon steel or 316SS |
| 450–480°F | PEEK (unfilled) | Flexible graphite | Graphite paste | Carbon steel or 316SS |
| 480–500°F | CF PTFE or PEEK | Flexible graphite | Graphite paste | 316SS |
| 500–800°F | Metal seat (316SS) | Graphite ribbon | None (dry) | 316SS or carbon steel |
| 800–1,200°F | Metal seat (Stellite coated) | Graphite ribbon | None (dry) | Alloy (Inconel, etc.) |
Signs of Overheating
| Symptom | What Happened | Corrective Action |
|---|---|---|
| Valve difficult to operate | Ball expanded, seat cold flowed | Replace seats with PEEK or metal |
| Stem leaking | Packing carbonized | Replace with graphite packing |
| Brown residue on stem | Grease baked | Upgrade to high-temp lubricant |
| Seat leakage | PTFE melted or extruded | Upgrade to higher-temp seat |
Cryogenic & Low-Temperature Service (<-20°F)
Challenges
| Challenge | Cause | Consequence |
|---|---|---|
| Material embrittlement | Carbon steel becomes brittle | Body cracking |
| Seat shrinkage | PTFE contracts more than metal | Leakage at low temp |
| Lubricant freezing | Standard grease solidifies | Valve seizes |
| Ice formation | Moisture freezes on stem | Stem seal damage |
| O-ring hardening | Elastomers lose flexibility | Seal failure |
Critical Design Features for Cryogenic Service
| Feature | Purpose | Kinko Implementation |
|---|---|---|
| Extended stem | Moves packing away from cold zone | 4"–8" extension (prevents ice) |
| Low-temp body material | Prevents embrittlement | A350 LF2 or 316SS (not A105) |
| PEEK or CF PTFE seats | Low shrinkage vs. PTFE | PEEK preferred below -50°F |
| Dry lubricant (moly) | No freezing | Molybdenum disulfide |
| Relief holes in ball | Trapped fluid expansion | 1/8" hole in upstream side |
| Purge port | Remove moisture before operation | Optional (N2 purge) |
Selection Guide – Low Temperature
| Min Temp | Body Material | Seat | Packing | Lubricant |
|---|---|---|---|---|
| -20°F to 0°F | Carbon steel (A105) | PTFE | PTFE | Low-temp grease |
| -50°F to -20°F | Low-temp carbon steel (A350 LF2) | PEEK | PTFE + graphite | Low-temp synthetic |
| -150°F to -50°F | 316 stainless | PEEK | Flexible graphite | Moly disulfide (dry) |
| -325°F to -150°F | 316 stainless or special alloy | Metal seat | Graphite ribbon | None (dry) |
Signs of Cold-Related Issues
| Symptom | What Happened | Corrective Action |
|---|---|---|
| Valve won't turn | Lubricant frozen | Use dry lubricant or warm valve |
| White frost on stem | Moisture froze | Add extended stem; purge moisture |
| Leakage at low temp | PTFE shrunk | Switch to PEEK seats |
| Body crack | Carbon steel embrittled | Replace with 316SS or LF2 |
Temperature Cycling – The Hidden Killer
Repeated heating and cooling is worse than constant high or low temperature.
| Problem | Cause | Consequence |
|---|---|---|
| Thermal fatigue | Differential expansion rates | Body cracks, bolt loosening |
| Gasket creep | Gasket relaxes between cycles | Flange leakage |
| Seat memory loss | PTFE deforms, does not return | Permanent leakage |
Prevention:
| Action | Benefit |
|---|---|
| Re-torque flange bolts after first heat cycle | Compensates for gasket relaxation |
| Use spring-energized seats | Maintains seal force across temperature change |
| Specify PEEK over PTFE | Less thermal expansion/contraction |
| Install steam tracing (for high temp) | Reduces thermal shock |
Quick Selection by Operating Temperature
| Operating Temp | Kinko Recommended Series | Seat | Body | Special Feature |
|---|---|---|---|---|
| -300°F to -150°F | KINKO-C22 (cryogenic) | Metal or PEEK | 316SS | Extended stem |
| -150°F to -50°F | KINKO-C22 (cryogenic) | PEEK | 316SS or LF2 | Extended stem |
| -50°F to 0°F | KINKO-C22 or F15 | PEEK | LF2 or 316SS | Low-temp lubricant |
| 0°F to 400°F | KINKO-F15 or C22 | PTFE (any) | Carbon steel or 316SS | Standard |
| 400°F to 480°F | KINKO-C22 | PEEK | 316SS | High-temp packing |
| 480°F to 800°F | KINKO-C22 (metal seat) | Metal | 316SS or alloy | Graphite packing |
| 800°F to 1,200°F | KINKO-HP (special) | Metal (Stellite) | Inconel | Fire-safe design |
Common Temperature-Related Failures – Prevention
| Failure | Temperature Cause | Preventive Action |
|---|---|---|
| Stem blowout | Packing melted (high temp) | Use graphite packing above 500°F |
| Seat extrusion | PTFE softened (high temp + pressure) | Add anti-extrusion ring or PEEK |
| Valve seizes | Lubricant carbonized (high temp) | Dry lubricant (graphite) |
| Cold leakage | PTFE shrinkage (low temp) | PEEK seats or spring-energized |
| Body crack | Thermal shock | Slow temperature ramp; steam tracing |
| Bolt loosening | Differential expansion | Re-torque after first cycle |
Conclusion
Temperature impacts every component of a ball valve. Select by:
-
Below -20°F → 316SS body, PEEK seats, extended stem, dry lubricant
-
-20°F to 400°F → Carbon steel or 316SS, PTFE seats, standard grease
-
400°F to 500°F → 316SS, PEEK or CF PTFE, high-temp grease
-
Above 500°F → Metal seats, graphite packing, no lubricant
Kinko delivers: Temperature-specific recommendations within 24 hours. Cryogenic valves with extended stems. High-temperature valves with PEEK or metal seats. Full pressure-temperature rating curves for all series.
