How Ball Valves Improve Safety in Fluid Systems
In industrial fluid systems, a valve failure can mean toxic releases, fires, or catastrophic equipment damage. Safety is not optional – it is the first specification on any purchase order.
Among all isolation valve types (gate, globe, butterfly), the ball valve offers the highest inherent safety for on-off applications. But not all ball valves are equal.
At Kinko, we engineer safety into every valve. This article explains how ball valves protect your personnel, plant, and environment – and which design features you must specify.
6 Critical Safety Advantages of Ball Valves
1. Zero Stem Leakage (Live-Loaded Packing)
Ball valves use a rotary stem with adjustable PTFE or graphite packing. Unlike gate valves (which have rising stems and dynamic seals), ball valve stems can achieve true zero emissions.
Kinko safety feature: All our ball valves include live-loaded stem packing – spring washers maintain constant compression on packing, even after thermal cycles or wear.
| Valve Type | Typical Stem Leakage Rate | Suitable for Fugitive Emission Control? |
|---|---|---|
| Gate valve | 50–100 ppm (methane) | No (requires bellows seal) |
| Globe valve | 50–100 ppm | No |
| Ball valve (standard) | <10 ppm | Yes |
| Ball valve (live-loaded) | <1 ppm | Yes (ISO 15848 certified) |
2. Blowout-Proof Stem Design
If internal pressure exceeds design limits, a standard valve stem can eject like a projectile – a deadly hazard. Ball valves require a blowout-proof stem.
How it works: The stem has a larger-diameter shoulder below the packing. Even if the packing nut fails, the shoulder hits the body counterbore – the stem cannot blow out.
Kinko standard: All our ball valves, regardless of size or pressure rating, feature blowout-proof stems (per API 608 and ASME B16.34).
3. Anti-Static Device (Preventing Spark Ignition)
In flammable service (hydrocarbons, solvents, hydrogen), static electricity buildup on the floating ball can discharge as a spark when the ball rotates – potentially igniting the fluid.
Solution: Anti-static devices – springs or balls that create a continuous electrical path from ball → stem → body → pipeline.
Kinko standard: Anti-static devices are included on all ball valves for Class 150 and above. Grounding continuity is tested to <10 ohms.
4. Fire-Safe Design (API 607 / ISO 10497)
When external fire engulfs a valve, soft PTFE seats melt. A fire-safe ball valve maintains a secondary metal-to-metal seal – stopping fluid release even after seats are destroyed.
Fire-safe requirements (API 607):
-
Leakage after fire test < 100 ml/min per inch of valve size
-
No visible external leakage through body or stem
-
Valve must still operate (open/close) after cooling
Kinko offering: Fire-safe certified ball valves available for all sizes 1/2" – 12". Certification documentation provided.
5. Quarter-Turn Emergency Shutdown (ESD)
Ball valves require only 90° rotation from fully open to fully closed. This enables:
-
Fast manual closing (1–2 seconds for small sizes)
-

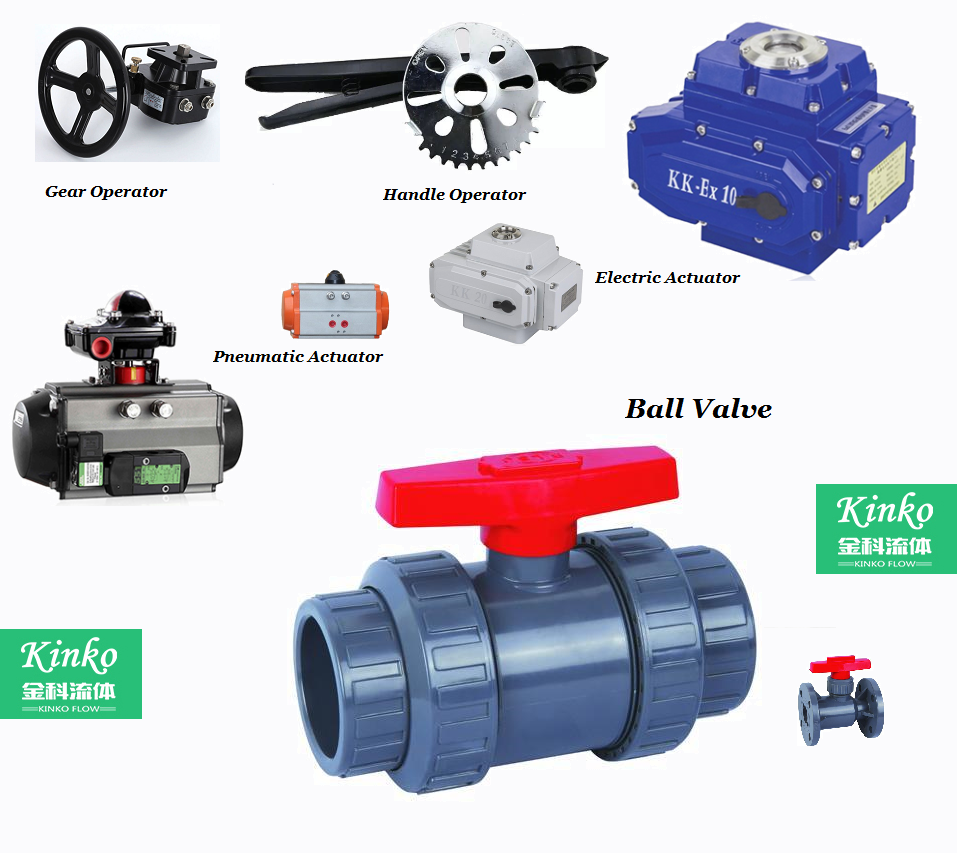

Easy automation with spring-return pneumatic actuators (fail-safe closed or open)
-
Remote emergency shutdown (ESD) integration
Compare to gate valves: 10–20 handwheel turns for 2" valve. In an emergency, seconds save lives.
6. Double Block & Bleed (DBB) Capability
A single ball valve cannot provide absolute isolation if both seats leak. For critical isolation (e.g., entering a vessel), you need Double Block & Bleed.
Configuration: Two ball valves (or a single trunnion ball valve with two independent seats) plus a bleed port between them.
Kinko solution: We offer purpose-built DBB ball valves – one valve body, two floating balls, and a bleed connection – certified for zero leakage across both seats.
Safety Comparison: Ball Valve vs Other Isolation Valves
| Safety Feature | Ball Valve | Gate Valve | Butterfly Valve | Globe Valve |
|---|---|---|---|---|
| Stem blowout-proof | Yes (standard) | No | No | No |
| Anti-static | Yes (available) | N/A | N/A | N/A |
| Fire-safe certified | Yes | Yes (limited) | Limited | Yes |
| Quarter-turn ESD | Yes | No | Yes | No |
| Zero stem leakage | Yes (live-loaded) | No | No | No |
| Double block & bleed | Yes (purpose-built) | No | Yes (complex) | No |
High-Risk Applications Where Ball Valve Safety is Mandatory
| Industry | Hazard | Required Safety Feature |
|---|---|---|
| Oil & gas terminals | Flammable vapor | Anti-static + Fire-safe |
| Hydrogen refueling | High pressure + explosion risk | Zero stem leakage (ISO 15848) |
| Chemical batch reactors | Toxic release | Live-loaded packing + DBB |
| LNG (cryogenic) | Extreme cold + fire risk | Extended stem + Fire-safe |
| Offshore platforms | Confined space + fire | Compact quarter-turn ESD |

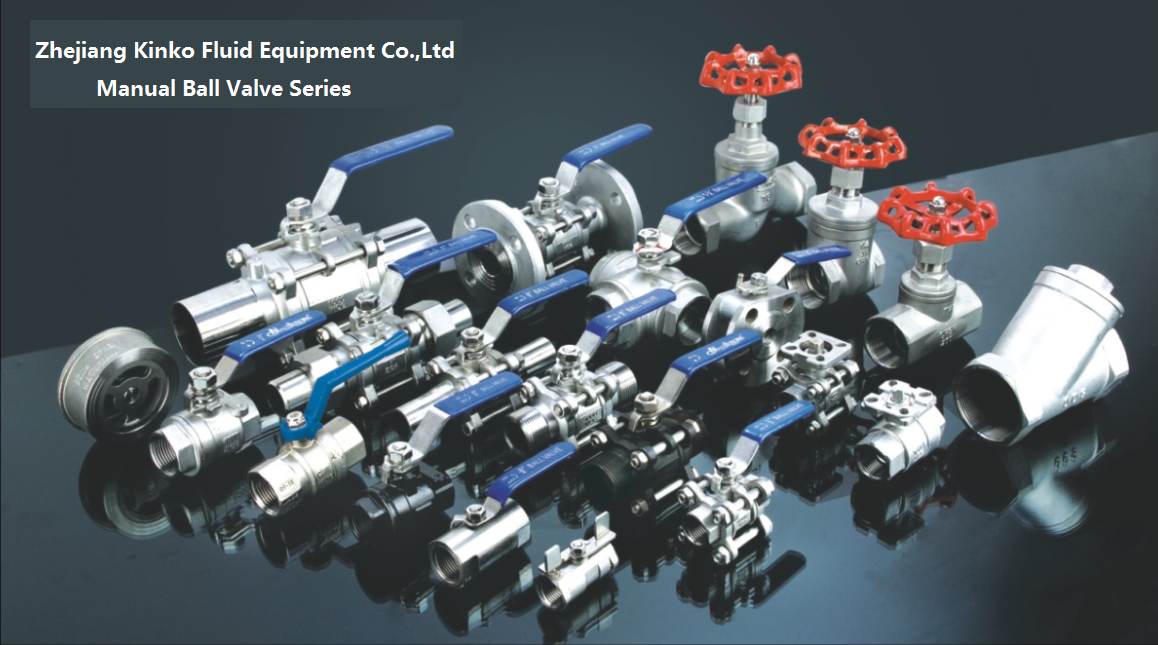

Kinko Safety-Engineered Ball Valve Specifications
All Kinko ball valves are manufactured with these safety features as standard or optional:
| Safety Parameter | Kinko Standard | Upgrade Option |
|---|---|---|
| Blowout-proof stem | Yes (all models) | – |
| Anti-static device | Yes (Class 150+) | – |
| Live-loaded packing | Optional | Yes (standard on API valves) |
| Fire-safe certification | Optional (by request) | API 607 / ISO 10497 |
| Fugitive emission | Optional | ISO 15848-1 (Class B or C) |
| Lockable handle | Yes (standard lever) | Padlockable + tamper-proof |
| Double block & bleed | Optional | Dedicated DBB body |
4 Safety Mistakes to Avoid When Specifying Ball Valves
| Mistake | Consequence | Correct Action |
|---|---|---|
| No anti-static in hydrocarbon service | Spark ignition risk | Specify anti-static (or verify included) |
| Standard packing in hydrogen service | Hydrogen permeation leakage | Specify low-emission packing (graphite) |
| No fire-safe for fire zone valves | Valve fails open during fire | Specify API 607 certified |
| Single valve for toxic isolation | Small leak = large release | Specify DBB or two valves in series |
Installation Safety Tips
-
Ground the valve body: Even with anti-static device, ensure pipeline grounding is continuous across flanges.
-
Verify blowout-proof: Before installation, try to pull stem upward (it should not move).
-
Test after fire exposure: If valve has been through a fire, replace seats and packing – metal secondary seal may still function but soft seats are degraded.
-
Use extended stem for cryogenic: Prevents ice formation on packing.
