1. Introduction: Why End Connections Matter in Ball Valve Selection

For any industrial piping system, the end connection of a ball valve is not just a fitting detail—it determines sealing integrity, installation efficiency, maintenance cost, and system safety. Whether you are sourcing for oil & gas, chemical processing, food & beverage, or pharmaceutical lines, understanding threaded vs flanged vs clamp (tri-clamp) connections is essential.

At Kinko, we manufacture precision ball valves with all three end connection types. This guide provides a technical comparison, application recommendations, and a detailed specification table to help procurement professionals make the right choice.

2. Overview of Three Main Ball Valve End Connections

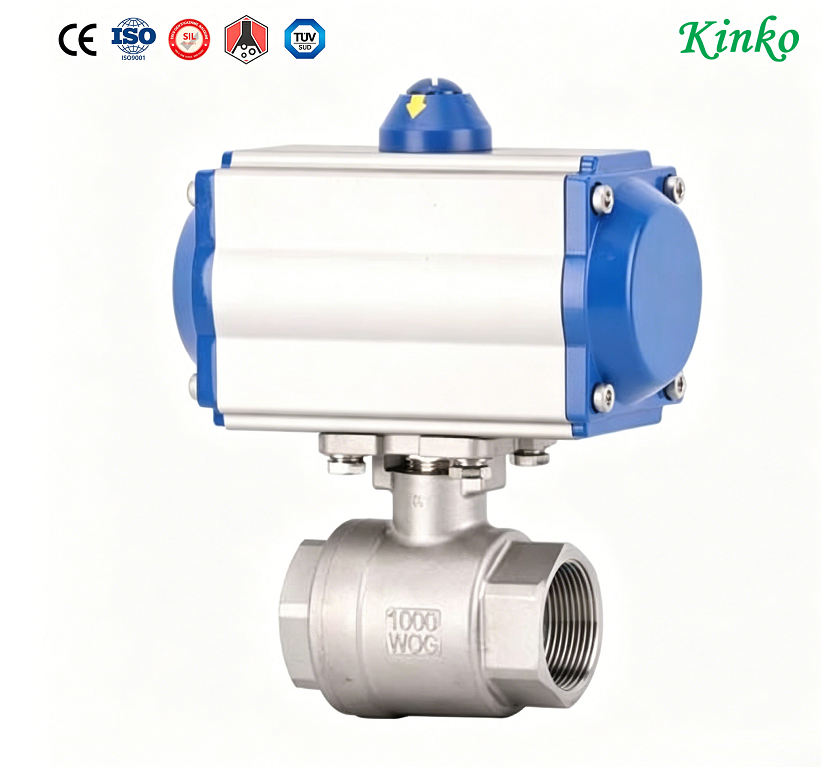

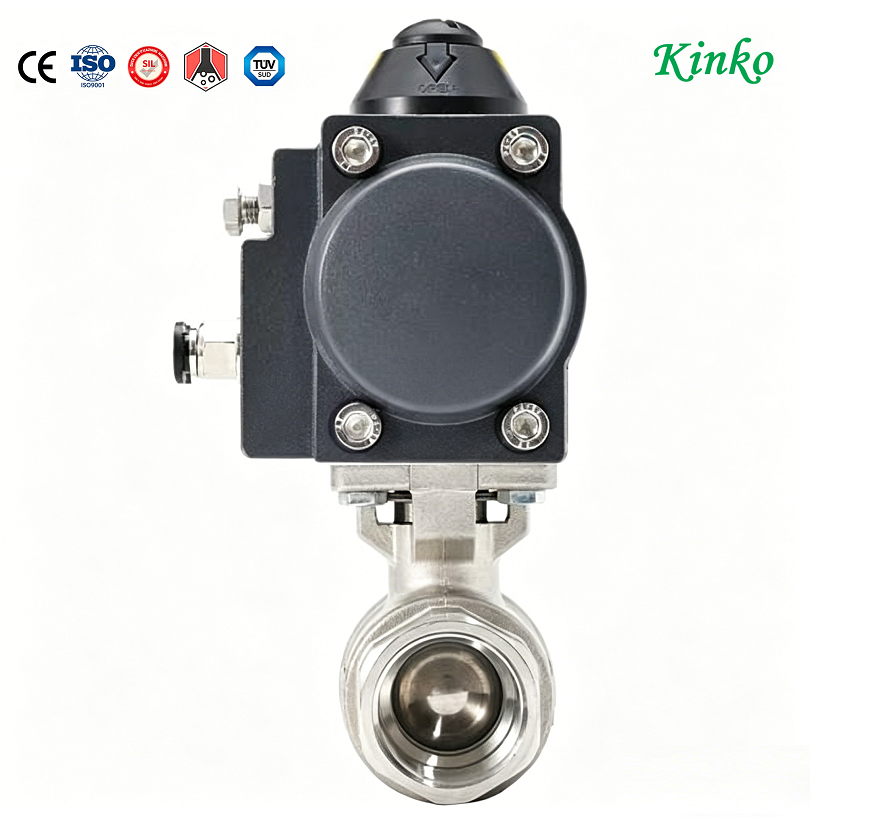

2.1 Threaded Ball Valve (Screwed End)

Standard: NPT, BSPP, BSPT (1/4” to 4”)
Features: Compact, low cost, easy installation without welding.
Best for: Small-diameter lines, instrumentation, air/water/gas applications.

2.2 Flanged Ball Valve

Standard: ANSI 150/300, PN10/16/25/40, JIS 10K/20K (1/2” to 24”)
Features: High pressure/temperature tolerance, easy disassembly, bolt-on sealing.
Best for: Large-diameter pipelines, steam, hydrocarbons, chemical transfer.

2.3 Clamp (Tri-Clamp) Ball Valve

Standard: ISO 2852, DIN 32676, 3A (1/2” to 8”)
Features: Sanitary, quick-opening, no dead leg, easy cleaning (CIP/SIP).
Best for: Food, dairy, beverage, bio-pharmaceutical, cosmetic industries.

3. Technical Comparison Table: Kinko Ball Valve End Connections

Parameter	Threaded Ball Valve	Flanged Ball Valve	Clamp (Tri-Clamp) Ball Valve
Size Range	1/4” – 4” (DN8 – DN100)	1/2” – 24” (DN15 – DN600)	1/2” – 8” (DN15 – DN200)
Connection Standard	NPT, BSPP, BSPT, ISO 7-1	ANSI B16.5, EN 1092-1, JIS B2220	ISO 2852, DIN 32676, 3A
Pressure Rating	Up to 1000 PSI (PN63)	Up to 1500 PSI (PN100)	Up to 600 PSI (PN40)
Temperature Range	-20°C to +200°C (-4°F to 392°F)	-40°C to +450°C (-40°F to 842°F)	-20°C to +150°C (-4°F to 302°F)
Body Material	SS304, SS316, WCB, Brass	SS316, SS304, WCB, Ductile Iron	SS316L (Sanitary grade)
Seat Material	PTFE, PEEK, RTFE	PTFE, PPL, Metal-seated	PTFE, Silicone, EPDM (FDA)
Operation Type	Lever, Electric, Pneumatic	Lever, Gear, Electric, Pneumatic	Lever, Pneumatic, Electric
Leakage Rate	Zero leakage (ISO 5208 Rate A)	Zero leakage (API 598)	Zero leakage / Sanitary seal
Cleaning Method	Manual	Manual / Chemical	CIP / SIP capable
Typical Industry	General industrial, HVAC, water treatment	Petrochemical, refinery, power plant	Food, dairy, pharma, biotech
Installation	Threaded directly into pipe	Bolted between flanges	Clamp + gasket (tool-free)
Reusability	Limited	High (replace gasket)	Very high (replace gasket)
Cost Level	Low	High	Medium-High

4. How to Choose the Right End Connection for Your Project

Choose Threaded Ball Valve when:

Pipeline diameter ≤ DN80 (3”)
Working pressure < 1000 PSI
Budget-sensitive projects
Installation requires speed and no welding

Choose Flanged Ball Valve when:

Pipeline diameter ≥ DN50 (2”) up to large bore
High temperature or pressure (steam, thermal oil)
Frequent maintenance or replacement needed
Standard industrial or hazardous area

Choose Clamp Ball Valve when:

Strict sanitary requirements (FDA, 3A certified)
Frequent disassembly for cleaning
Product changeover is common (batch process)
Dead-leg must be avoided

5. Kinko’s Advantage for B-Side Procurement

Kinko provides full traceability, material certification (EN 10204 3.1), pressure test reports, and custom marking. All three end connection types are available with:

Actuation ready: ISO 5211 mounting pad direct
Anti-static design (flanged & threaded)
Fire-safe option (API 607/ISO 10497)
Lockable handle as standard
Short lead time for bulk orders

6. SEO Keywords Targeted (for search engine visibility)

Ball valve end connections threaded flanged clamp
Industrial ball valve procurement guide
Kinko ball valve specification table
Threaded vs flanged vs tri-clamp ball valve
Sanitary clamp ball valve supplier
High pressure flanged ball valve
B2B ball valve manufacturer

7. FAQ – Quick Answers for Engineers & Purchasers

Q1: Can I replace a threaded ball valve with a clamp valve directly?
No. The pipe end must be modified with a ferrule or adapter. Kinko offers adapter ferrules for retrofit.

Q2: Which connection is best for high-vibration lines?
Flanged connections provide the most vibration resistance. Threaded connections may loosen over time.

Q3: Are Kinko clamp valves compatible with other brands’ ferrules?
Yes, we follow ISO 2852 and DIN 32676, ensuring interchangeability with standard sanitary fittings.

Q4: Do you provide combination ends?
Yes. For example: flanged × threaded, or clamp × weld end. Contact our sales team for custom configurations.

8. Conclusion: Make the Right Connection with Kinko

Selecting the correct ball valve end connection directly impacts your system’s lifecycle cost, safety, and maintenance schedule. Whether you need threaded for compact lines, flanged for heavy-duty service, or clamp for sanitary processes, Kinko delivers certified, high-performance ball valves with global shipping and full documentation.
