Electric Butterfly Valve IP67 Rotary Angle Degree90 50NM

Product Attributes

Type: Butterfly Valves

Brand Name: KINKO

Model Number: KK-S34

Temperature Of Media: Medium Temperature, Normal Temperature

Power: Electric

Media: Water

Port Size: Dn65

Structure: Butterfly

Product Name: D971X-10P-DN65

Working Pressure: 0-1.0mpa

Nominal Diameter: DN65

Working Temperature: -20℃~+150℃

Body Material: Stainless Steel 304

Seal Material: Rubber Epdm

Medium: drinking water,sewage,sea water,purity water,air

DISC: ductile cast iron,cast steel,stainless steel,nickel alloy

Feature: double bubble,zero leakage,double action,stem without pin

Output Torque: 50NM

Types Of: Butterfly Valves

Place Of Origin: Zhejiang, China

Application: Petroleum, chemical,textile,water treatment

Place Of Origin: China

Packaging & Delivery

Selling Units	:	piece
Package Type	:	Packaging Details Shrink film+Polyfoam+Carton/Plywood Case/Customer Requirements
Picture Example	:

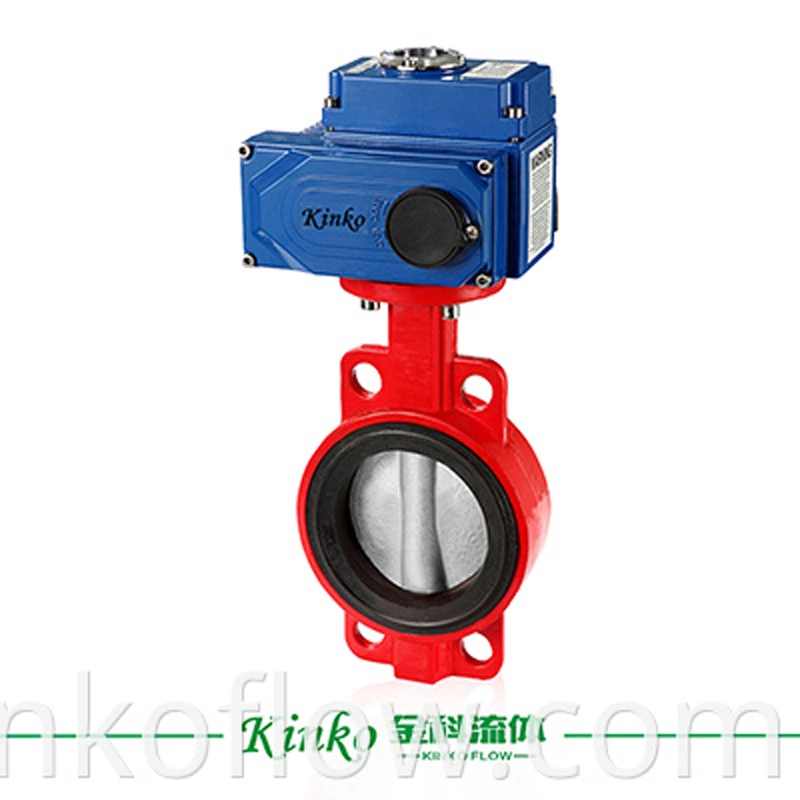

D971X-10P-DN65 Stainless steel electric CLAMP butterfly Valve IP67 rotary angle degree90 50NM, EPDM1

Product Description

“KINKO-FLOW Equipment CO., LTD” is a professional research and development, Manufacture various kinds of pneumatic actuators, pneumatic butterfly valves, pneumatic ball valves, Electric Actuator, electric butterfly valves, electric ball valves, electric Control Valve, pneumatic control valve, Pneumatic Angle Seat Valve, manual butterfly valve, manual ball valve, Gear box, Limit Switch Box .which production and sales in one of the state-level high-tech enterprises. The company has international advanced assembly line, precision CNC machining centers as well as perfect testing equipment, and in strict accordance with ISO9001 international quality standard system of organizing production, testing, sales and service, to ensure product quality, product by ISO, DIN, 3A, IDF, SYS, JIS and GB standard ,the quality of full compliance with FDA/GMP requirements. Companies always try to improve and innovation management method and production management procedures, introduction of international advanced technology and equipment, improve product quality and after-sales service.

Packing&Shipping

Packaging Details Shrink film+Polyfoam+Carton/Plywood Case/Customer Requirements Port Shanghai/Ningbo/Express/Customer Requirements

After Sales Service

Our Services & Strength

We do for the user “consulting, design, selection, installation”, to solve all kinds of control trouble, adhering to the "quality first, customer first" corporate philosophy, We adhere to the 24-hour rule, all hot lines start up 24 hours, all inquiries 24 hours reply, product production cycle within 24 hours to confirm, any product quality problems we provide solutions within 24 hours......

FAQ

Q1. Is the sample order acceptable? A: Yes, of course.

Q2. What is your MOQ? A: 1 PCS.

Q3. What is the delivery time? A: It is about 5-7 days after we receive the payment.

Q4. How to make the payment? A: We accept T/T, Paypal, Ali Trade Assurance.

Q5. Do you have products in stock? A: Yes, some stock can be shipped out within 3 days.

Q6. Do you test all your goods before delivery? A: Yes, all products are fully inspected before delivery.

Q7. What is the warranty? A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
